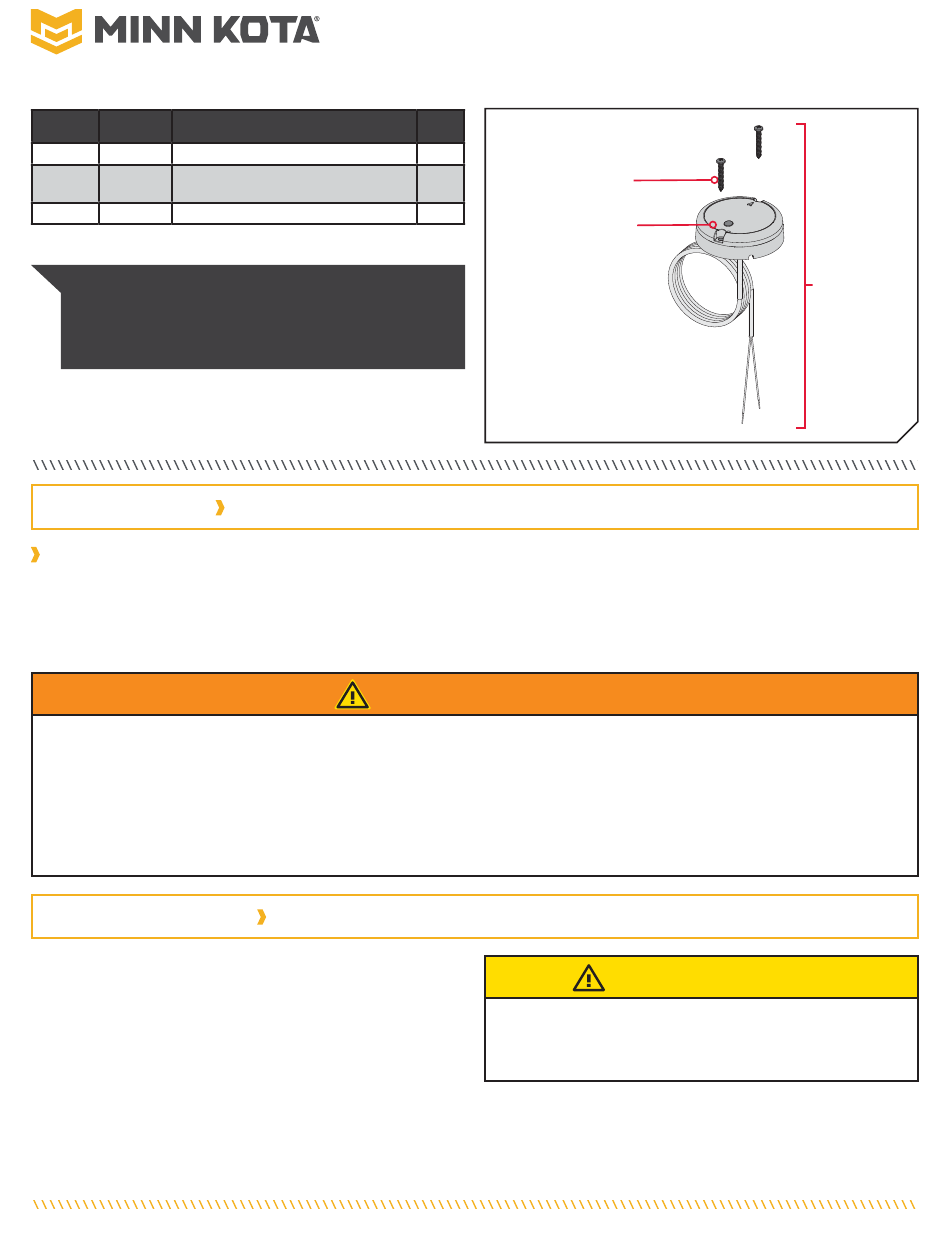

Compatible with all Bluetooth® enabled Minn Kota Advanced GPS Navigation systems.*
Item /
Part #
Description
Assembly
A
2996400
HEADING SENSOR ASSEMBLY
SCREW-#8-18X1-1/2 PPH TY AB SS
1
2393400
*STAINLESS STEEL*
2
HEADING SENSOR
This part is included in an assembly and cannot be ordered individually.
The Heading Sensor does not come standard
NOTICE:
with all models. It can be purchased as an accessory. To
learn more about Minn Kota accessories, please visit
minnkota.johnsonoutdoors.com.
*Not applicable with QUEST
an internal heading sensor.
THEORY OF OPERATION
Heading Sensor Functions
The Minn Kota Heading Sensor provides boat heading information to Bluetooth compatible Minn Kota trolling motors with Advanced
GPS Navigation. It contains a compass that senses the boat's heading. The boat heading is used by the system for navigation features
such as Spot-Lock Jog. The Heading Sensor does not contain a GPS receiver and it does not change or control the orientation of the
boat. The Minn Kota Heading Sensor can only communicate with other Bluetooth compatible Minn Kota products.
The Heading Sensor should not be used as a navigational aid to prevent collision, grounding, boat damage, or personal injury. When the
boat is moving, water depth may change too quickly to allow time for you to react. Always operate the boat at very slow speeds if you
suspect shallow water or submerged objects.
Do not install the Heading Sensor near ferrous metals or near anything that may create a magnetic field or interference. The Heading
Sensor must be installed at least 24" from magnetic or ferrous materials on the boat including the base of the motor. Installation near
the motor lead wires must also be avoided due to magnetic fields being created during high current draw situations.
MOUNTING CONSIDERATIONS
Before mounting your Heading Sensor, give consideration to
the following:
1.
The Heading Sensor contains a compass that detects a
magnetic field. Do not install the Heading Sensor near
ferrous metals or wires that handle large currents, such
as batteries or power cables.
2.
Mount the Heading Sensor in an area that has a clear line of communication with the head of the motor that is installed with a
Bluetooth compatible Minn Kota Advanced GPS Navigation for optimum performance.
©2023 Johnson Outdoors Marine Electronics, Inc.
series trolling motors which feature
TM
WARNING
HEADING SENSOR ASSEMBLY
Qty.
1
2
1
The Heading Sensor can be adversely affected by magnets or
large, ferrous metal objects. Do not install the Heading Sensor
within 24" of these objects as they will cause interference.
1
2
CAUTION
minnkota.johnsonoutdoors.com | 1
1866680
A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1866680 and is the answer not in the manual?

Questions and answers

Summary of Contents for MINN KOTA 1866680

  • Page 1 Heading Sensor Functions The Minn Kota Heading Sensor provides boat heading information to Bluetooth compatible Minn Kota trolling motors with Advanced GPS Navigation. It contains a compass that senses the boat’s heading. The boat heading is used by the system for navigation features such as Spot-Lock Jog.
  • Page 2: Mounting Options

    Make sure the area under the mounting location is level and is clear to drill holes and installation hardware will not damage existing components below the mounting surface. Test that the Power Cable that powers the Heading Sensor is long enough to reach the power source from the intended mounting location.
  • Page 3 Position the sensor so that the arrow on the cover is Keel of Boat Arrow pointed toward the front of the boat in the direction of to Front travel. The arrow needs to be parallel with the keel of the boat. Screw Holes CAUTION...
  • Page 4 ITEM(S) NEEDED #1 x 2 Apply a marine-grade silicone caulk or sealant to both #8 - 18x1-1/2 screws (Item #1) as needed to Screw protect your boat from water damage. Using a #2 Screwdriver, mount the Heading Sensor Screw Screw to the mounting location using the two screws.
  • Page 5 Mark the location of the two screw holes with an awl Heading Sensor or similar marking tool. Placement Marked Move the Heading Sensor to the side and drill two Location of Screw holes using a 9/64” drill bit on the marked locations. Holes ITEM(S) NEEDED #1 x 2...
  • Page 6: Light Patterns

    LED patterns that the Heading Sensor communicates in order to understand what mode it is in and to be able to recognize that is has successfully paired once the process is complete. Be sure that the Heading Sensor is being paired to a Minn Kota trolling motor that is equipped with a Bluetooth compatible Advanced GPS Navigation system.
  • Page 7 WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat.
  • Page 8 Heading Sensor Calibration for Advanced GPS Navigation with the Wireless Remote Review all safety warnings. Navigate your boat to an area on the water free from obstructions. Power up the trolling motor according to the instructions provided in the Owner’s Manual. Make sure the Heading Sensor is powered up and paired with the trolling motor.
  • Page 9 Heading Sensor Calibration for Advanced GPS Navigation with the One-Boat Network App Review all safety warnings. Navigate your boat to an area on the water free from obstructions. Power up the trolling motor according to the instructions provided in the Owner’s Manual. Make sure the Heading Sensor is powered up and paired with the trolling motor.
  • Page 10: Heading Offset

    HEADING OFFSET With the Heading Sensor calibrated, set the Heading Offset. Heading Offset is the difference between the angle of the Keel of the boat and the angle at which the Heading Sensor is mounted to the deck of the boat. During installation, the Heading Sensor was installed to be as parallel to the Keel of the boat as possible.
  • Page 11 Heading Offset for Advanced GPS Navigation with the One-Boat Network App Open the One-Boat Network (OBN) app on the mobile device. Make sure the mobile device is paired with the trolling motor. From the OBN home screen, tap the Motor menu. The Motor menu opens the Motor app home screen.
  • Page 12 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Johnson Outdoors, Inc. is under license. Other trademarks and trade names are those of their respective owners. For warranty information please visit minnkota.johnsonoutdoors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc.
  • Page 13 Fonctions du capteur de cap Le capteur de cap Minn Kota fournit de l’information sur le cap du bateau aux moteurs de pêche à la traîne Minn Kota avec système de navigation GPS avancé. Il possède une boussole qui détecte le cap du bateau. Le système utilise le cap pour des fonctions de navigation comme le déplacement du Spot-Lock.
  • Page 14: Options De Montage

    Assurez-vous que la zone sous l’emplacement d’installation est horizontale, qu’on peut y percer des trous et que la quincaillerie d’installation n’endommagera pas de composantes en place sous la surface de montage. Vérifiez que le câble d’alimentation du capteur de cap est assez long pour atteindre la source d’alimentation à partir de l’emplacement de montage désiré.
  • Page 15 Placez le capteur de manière à ce que la flèche sur Quille du le couvercle pointe vers l’avant du bateau, dans le Flèche bateau vers l’avant sens du déplacement. La flèche doit être parallèle à la Trous de vis quille du bateau. ATTENTION Un mauvais alignement du capteur de cap mènera à...
  • Page 16 ARTICLE(S) REQUIS #1 x 2 Appliquez un scellant ou un calfeutrage de silicone de qualité marine aux deux vis nº 8 - 18 x 1 1/2 (3,81 cm) (article nº 1) tel que requis afin de protéger votre bateau contre les dommages causés par l’eau. En utilisant un tournevis nº...
  • Page 17 Marquez l’emplacement des deux trous de vis avec un poinçon ou un autre outil de marquage semblable. Placement du Emplacements capteur de cap marqués des Mettez le capteur de cap de côté et percez deux trous de vis trous à l’aide d’une mèche de 9/64 po (3,6 mm) aux emplacements marqués.
  • Page 18 DEL indiquées par le capteur de cap afin de comprendre le mode dans lequel il se trouve et d’être en mesure de reconnaître un couplage réussi après la fin de ce processus. Assurez-vous que le capteur de cap est couplé à un moteur de pêche à la traîne Minn Kota équipé d’un système de navigation GPS avancée compatible avec Bluetooth.
  • Page 19 AVERTISSEMENT Vous seul êtes responsable de la navigation sécuritaire et prudente de votre bateau. Nous avons conçu votre produit Minn Kota pour qu’il soit un outil précis et fiable qui vous permettra d’améliorer l’utilisation de votre bateau et d’accroître votre capacité de pêcher des poissons.
  • Page 20 Étalonnage du capteur de cap pour la navigation GPS avancée avec la télécommande sans fil Passez en revue tous les avertissements de sécurité. Naviguez dans votre bateau jusqu’à une zone de l’eau libre d’obstructions. Mettez le propulseur électrique sous tension conformément aux instructions du manuel du propriétaire.
  • Page 21 Étalonnage du capteur de cap pour une navigation GPS avancée avec l’application One-Boat Network Passez en revue tous les avertissements de sécurité. Naviguez dans votre bateau jusqu’à une zone de l’eau libre d’obstructions. Mettez le propulseur électrique sous tension conformé- ment aux instructions du manuel du propriétaire Assurez- vous que le capteur de cap est également sous tension et jumelé...
  • Page 22 DÉCALAGE DE CAP Une fois le capteur de cap calibré, réglez le décalage de cap. Le décalage de cap est la différence entre l’angle de la quille du bateau et l’angle auquel le capteur de cap est monté sur le pont du bateau. Pendant l’installation, le capteur de cap a été placé de manière à être aussi parallèle à...
  • Page 23 Décalage du cap pour la navigation GPS avancée avec l’application One-Boat Network Ouvrez l’application One-Boat Network (OBN) sur l’appareil mobile. Assurez-vous que l’appareil mobile est jumelé au moteur de pêche à la traîne. À partir de l’écran d’accueil OBN, touchez le menu Moteur.
  • Page 24 Johnson Outdoors, Inc. est sous licence. Les autres marques et noms commerciaux appartiennent à leurs propriétaires respectifs. Pour obtenir des renseignements sur la garantie, veuillez visiter minnkota.johnsonoutdoors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc.
