- Page 1 user manual english version 2.1.4...
- Page 2 Document Number: ERP6K-01073-10 Published: September 2019 Copyright (c) 2015-2019 BTS S.p.A. All Rights Riserved.
-
Page 3: Table Of Contents
Regulatory Label ..........................8 Warning............................. 9 copyright ............................11 introduction............................12 Use of the system..........................13 BTS Digivec software ........................... 15 Configurations ........................... 20 Appendix A ............................21 Technical features ..........................21 Appendix B ............................22 Environmental Specifications ........................22 Appendix C ............................ -
Page 4: Icons, Symbols And Acronyms
Icons, symbols and acronyms Symbol in the instructions for use. The icon represents the information which requires special attention. Symbol on the equipment. Symbol for “Manufacturer”. This symbol shall be adjacent to the name and address of the manufacturer. Symbol on the equipment. Caution, consult the accompanying documents. Symbol on the equipment and in the users’... - Page 5 Symbol for prescription only. U.S. Federal law restricts this device to sale by or on the order of a physician or properly licensed practitioner. Symbol on the equipment. Symbol for the System of reference of the forces measured. No. 5019 (IEC 60417) Protective earth (ground): To identify any terminal which is intended for connection to an external conductor for protection against electrical shock in case of a fault, or the terminal of a protective earth (ground) electrode.
-
Page 6: Disposal (Weee)
Business-to-Business sector. The symbol of the crossed out rubbish bin indicates that the equipment must not be disposed of in normal domestic waste. For further information about proper disposal and recycling, please contact your local reseller or BTS S.p.A. directly. -
Page 7: Intended Use

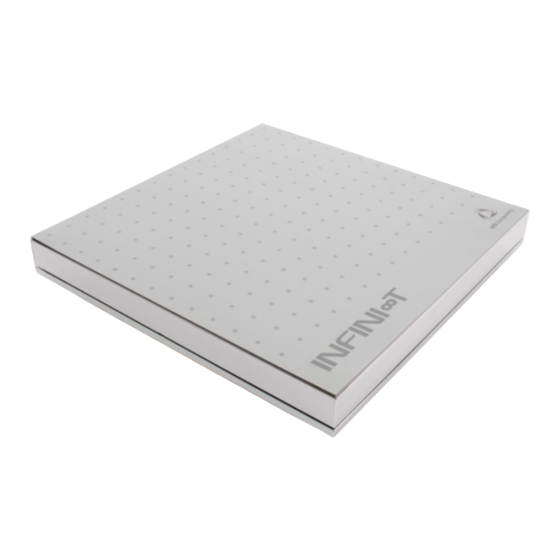

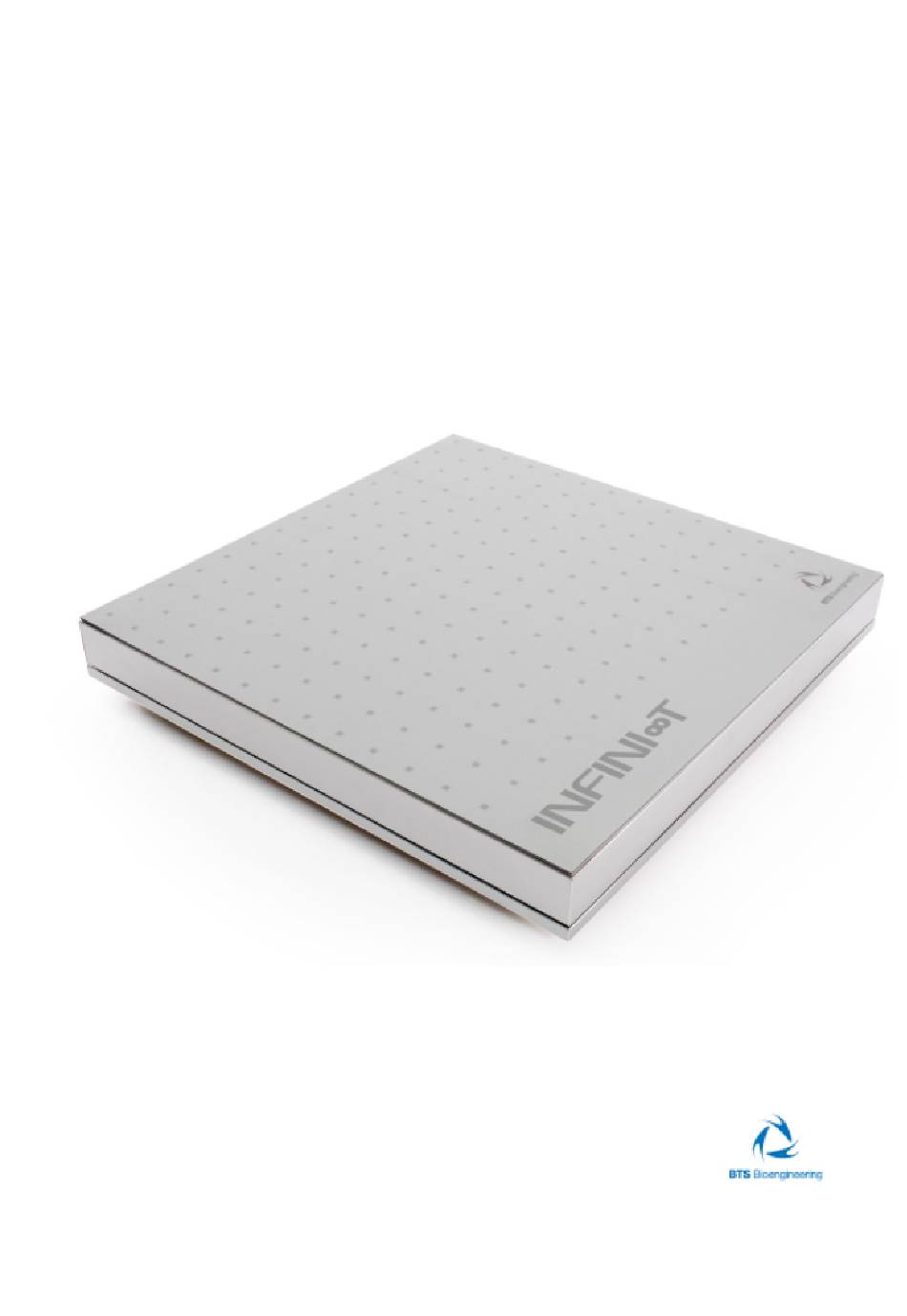

Intended use Is a force platform, which measures ground reaction forces throughout its surface, allowing a deep analysis of a subject’s static postural condition and dynamic postural condition. -
Page 8: Regulatory Label
Regulatory Label The regulatory label on the force plate is: The following label is added only for shipments to Brazil, both on the device and on the package:... -
Page 9: Warning
Do not wet or dip in water the device or its parts. Use only the power supply unit provided by BTS S.p.A. If a different power supply unit is used, the compliance to IEC 60601-1 is not ensured. - Page 10 Connecting the device to a non-conforming electrical system, could damage the device, the operator and the patent. BTS S.p.A. cannot be held responsible for damages due to the connection of the device to a non- conforming electrical system. The connection to an electrical system not provided with a cabin distribution medium/law voltage (i.e.
-
Page 11: Copyright
BTS product. All trademarks are registered by the respective owners. This publication contains reserved information which is the property of BTS S.p.A. -
Page 12: Introduction
Consider postural re-education therapy; • Prevent injuries and enhance sports’ performance. Components The standard configuration includes: • 1,2,4,8 or 16 BTS (depending on the configuration) • 1 PoE HUB each 4 force platforms • Connection cables. The following optional components are available: •... -
Page 13: Use Of The System
• BTS Digivec (see next Chapter) and VIXTA video cameras; BTS has been developed to be integrated to all BTS systems for motion analysis, so it could be acquired by all application software of the BTS SMART-Suite and by the analysis software: •... - Page 14 For updates and maintenance please refer exclusively to BTS S.p.A. support (helpdesk@btsbioengineering.com). Keep the original packaging to benefit the warranty conditions. BTS S.p.A. cannot be held responsible for unauthorized or autonomous maintenance operations.
-
Page 15: Bts Digivec Software
BTS Digivec software Could be acquired using BTS Digivec software and VIXTA video cameras, through a few simple steps. Connect VIXTA video cameras to the switch for LAN cables connected to the PC. Run the Digivec program clicking the file “3Digivec.vsb”, or selecting the shortcut on your desktop. - Page 16 This window allows also to set the number of platforms to use and the configuration data for each of them: • IP Address; • Serial Number; • Group (see paragraph “Groups”); • Firmware version (default value =2); Once set all mandatory data, go on with the calibration of the configuration set. First of all, positon the configuration of the platforms according to their real positioning in the laboratory, shifting the rectangles in the correspondent positon.
- Page 17 The magenta ball should be positioned vertically aligned on the red ball, at a distance of 60 cm. To allow an easier positioning of the magenta ball, use the calibration kit with one harm long 60 cm, provided by BTS S.p.A. (the tern should be positioned on the first corner of the platform of reference).
- Page 18 For each acquired camera there’s a video and TDF. File containing the data related to the acquired forces. For further information, refer to BTS Digivec software User Manual. Groups Through the configuration window it’s allowed to assign each platform to pre-set groups, platforms could be assigned to the same group allowing to display the total group acquisition, selecting the option “Show Group”...
- Page 19 • Show force vectors: to display force’s vectors; • Walkway: to display only the upper surface of the platforms, useful when there’s a walkway. Forces should be superior to the minimum detection threshold of 30 N (3 kg). Lower forces are not measured.
-
Page 20: Configurations
Configurations Is a modular sensory floor, which could be composed by multiple units, placed in an ad hoc walkway to provide the user a complete sensorized floor, configurable for different acquisition requirements. is the squared model which differs only for dimensions which are 40 x 40 cm instead of 60 x 40 cm. -
Page 21: Technical Features
Appendix A Technical features Interface LAN (10/100 Ethernet) Signal Output Digital Power Supply PoE with proprietary switch Single Module* Weight and dimensions 28kg, sensitive area 60 x 40 cm, minimum height 5 Capacity (X and Y) for each sensor Up to +- 8000N Capacity (Z) for each sensor Up to 8000 N Sensitivity / Resolution... -
Page 22: Environmental Specifications
Appendix B Environmental Specifications Notes Temperature of use 10° C 40°C Humidity of use Relative, in absence of condenses Atmospheric Pressure... -
Page 23: Electromagnetic Compatibility
Appendix C Electromagnetic compatibility Complies with the International Electrotechnical Commission standards (IEC 60601-1-2: 2007) for electromagnetic compatibility as listed in the tables below. Follow the guidance in the tables for use of the device in an electromagnetic environment. Needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this section. - Page 24 Not Applicable ±2 kV Electrical fast for power supply transient/burst IEC lines 61000-4-4 ±1 kV input/output lines Not Applicable Surge ±1 kV differential mode IEC 61000-4-5 ±2 kV common mode Not Applicable Voltage, dips, <0% UT (>100% dip in short UT) for 0.5 cycle interruptions 40% UT...
- Page 25 from the equation applicable to the frequency of the transmitter. Recommended separation distance d=1.2 √ P 150 kHz to 80 MHz d=1.2 √ P 80 MHz to 800 MHz d=2.3 √ P 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is...
- Page 26 by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and as recommended below, according to the maximum output power of the communications equipment. Rated maximum output Separation distance according to frequency of transmitter m power of transmitter W 150 kHz to 80 80 MHz to 800 MHz 800 MHz to 2.5 GHz...
-
Page 27: Technical Support
Preserve the original package, which should be used in case of sending in place for repair. Failure to retain the original packaging, will invalidate the warranty. For problems or suggestions, please contact the technical support of BTS S.p.A.: Email helpdesk@btsbioengineering.com Tel.
