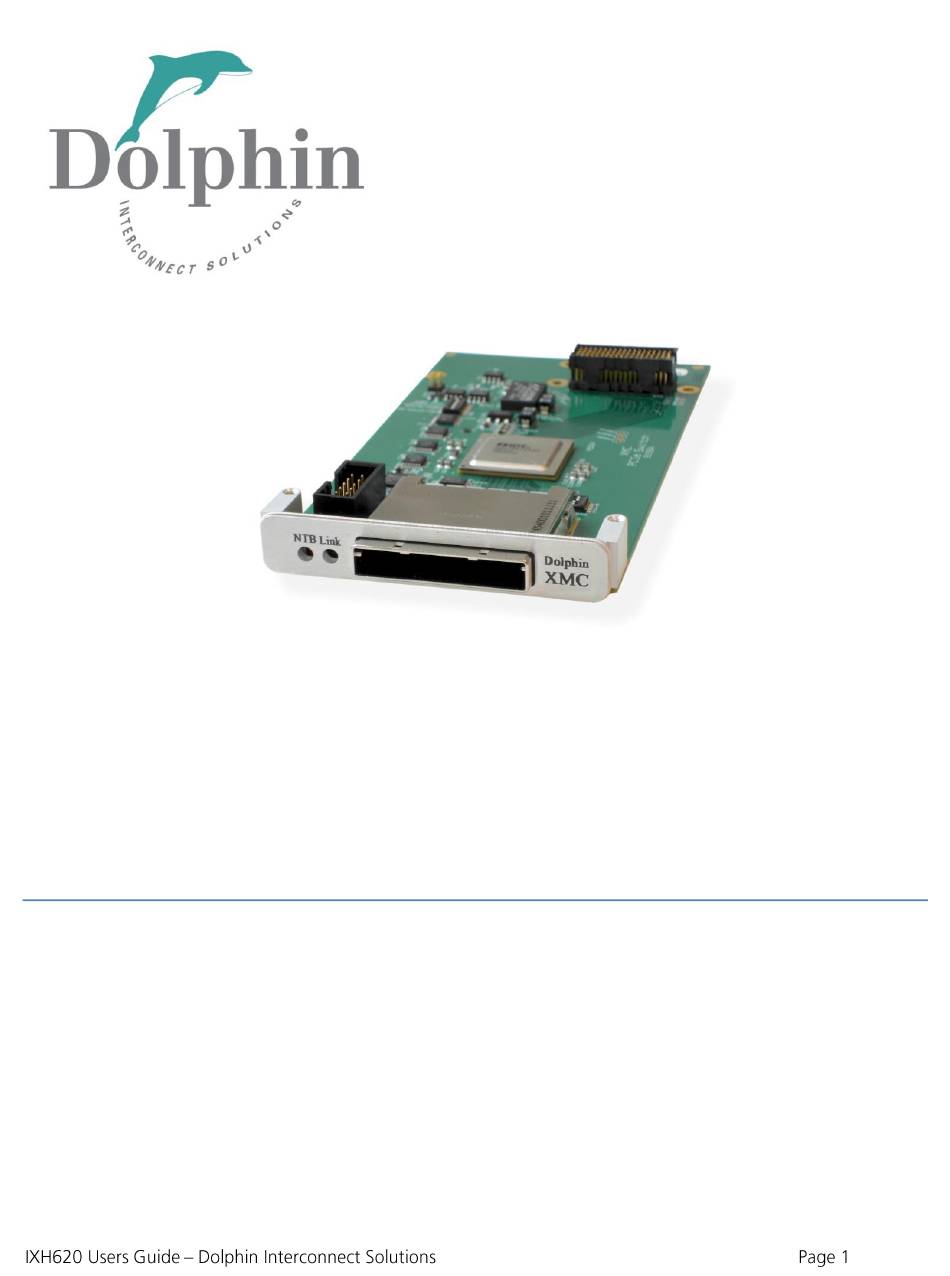

- Page 1 Dolphin PCI Express IXH620 XMC Adapter Adapter card users guide Version 2.07 Date: 30 November 2023...
- Page 2 Table of Contents...
- Page 3 DISCLAIMER LIFE SUPPORT POLICY ENVIRONMENTAL POLICY DOCUMENT VALIDITY...
-
Page 4: Quick Install Guide
Quick install guide Note: Static electricity from your clothes or work environment can damage your PCI Express adapter card or your PC. Always wear a grounded antistatic wrist strap when the card is removed from the anti-static bag. Configuring the IXH620 Copper cable connections Fiber optic cable connections... - Page 5 Dolphin PCI Express IX product family overview • • • • • • • • • • •...
- Page 6 PCI Express Adapter card - IXH620 XMC IXH620 high level specification • VITA 42.3 Short PCI Express XMC. • PCI Express Gen2 5.0 Gbps pr lane signaling. • One XMC P15 PCI Express Gen2 x8 host connection. • One PCI Express Gen2 x8 Cable connection.
- Page 7 LEDs Use cases Use case A - Transparent IO - Upstream Host...
- Page 8 Use case B - 2 node configuration – NTB Mode...
- Page 9 Use case C - Switch configuration Use case D – Transparent IO Downstream TARGET...
-
Page 10: Configuration And Dip-Switches
Configuration and DIP-switches... - Page 11 DIP switch bank SW 1 - SWMODE This DIP should normally be kept in factory default mode. These DIP switches are used to directly control the PES24NT6G2 Software MODE. Please refer to the PES24NT6G2 data sheet for details. The most useful options are documented in the table below.
- Page 12 DIP switch bank SW 2 – configuration This DIP Switch is used to configure transparent and non-transparent modes and manipulate clock source and reset functionality. Please note that the Transparent Target functionality requires a non- default setting of DIP SW 1 described on the previous page. Name Description Transparent...
- Page 13 Transparent HOST drives by legacy power on first IXH620 card. Legacy drivers mode CREFCLK device drivers for IO Devices Dolphin Host – Host Both cards Fully No limitations Dolphin SISCI, NTB mode. Both run on local supported SuperSockets, TCP/IP, connected systems...
-
Page 14: Technical Information
Technical information IXH620 PCIe iPass Cable Connector pinout... - Page 15 IXH620 XMC P15 Connector pinout Row A Row B Row C Row D Row E Row F...
-
Page 16: Installation
Installation Static electricity from your clothes or work environment can damage your PCI Express adapter card or your PC. Always wear a grounded antistatic wrist strap while opening the PC and when the adapter card is removed from the anti- static bag. Installing the adapter card Installing and removing the cable Fiber optic cable connections... -
Page 17: Software Installation
Software installation Identifying the card Adapter 0 > Type : IXH610 NodeId Serial number : IXH610-DE-001352 IXH chipId : 0x8091111d IXH chip revision : 0x00000002 (ZC) EEPROM version NTB mode : 0024 EEPROM version transp mode : 0009 EEPROM swmode[3:0] : 1100 EEPROM images : 0001... -
Page 18: Compliance And Regulatory Testing
Support Compliance and regulatory testing EMC compliance RoHS compliance Flammability standard The Dolphin IXH620 PWB is UL94V-0 compliant. The board has the 94V-0 mark in its silk screen. -
Page 19: Limited Warranty
Limited warranty Dolphin Interconnect Solutions warrants this Product to be free from manufacturing defects under the following terms: Warranty Period The warranty applies for one (1) year from the date of purchase. Extended warranty is available. Coverage To the extent permitted by applicable law, this warranty does not apply to: •...
