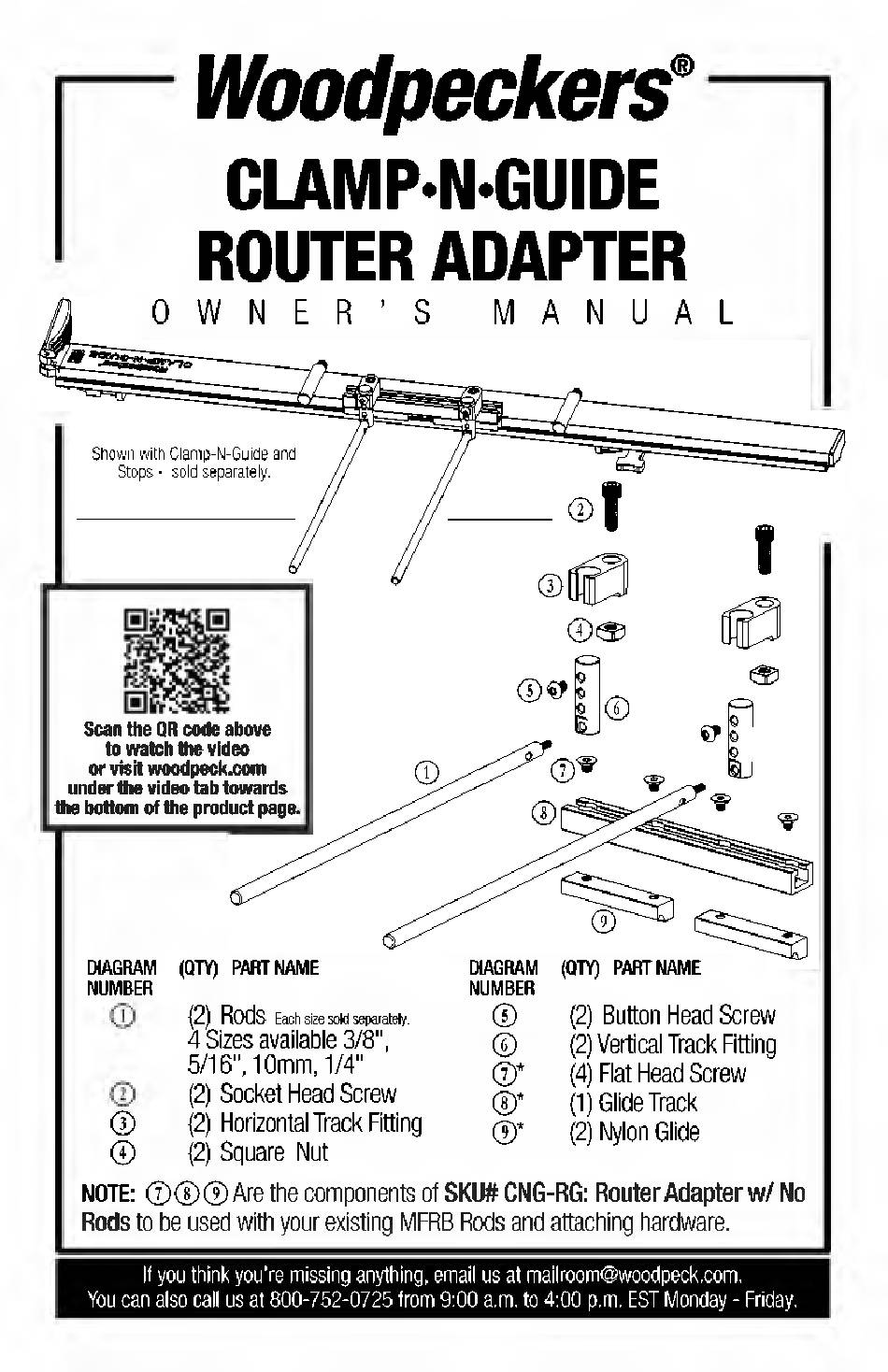

Woodpeckers CLAMP-N-GUIDE Owner's Manual

oodpeckers
LAMP-N-GUIDE
ROUTER ADAPTER
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
NOTE: 7, 8, 9 Are the components of KU# CNG-RG: Router Adapter w/ No
Rods to be used with your existing MFRB Rods and attaching hardware.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
WNER ' S MANUAL
DIAGRAM
NUMBER
(QTY) PART NAME
1
(2) Rods
Each size sold separately.
4 Sizes available 3/8",
5/16", 10mm, 1/4"
2
(2) Socket Head Screw
3
(2) Horizontal Track Fitting
4
(2) Square Nut
DIAGRAM
NUMBER
(QTY) PART NAME
5 (2) Button Head Screw
6 (2) Vertical Track Fitting
7*
(4) Flat Head Screw
8*
(1) Glide Track
9* (2) Nylon Glide
