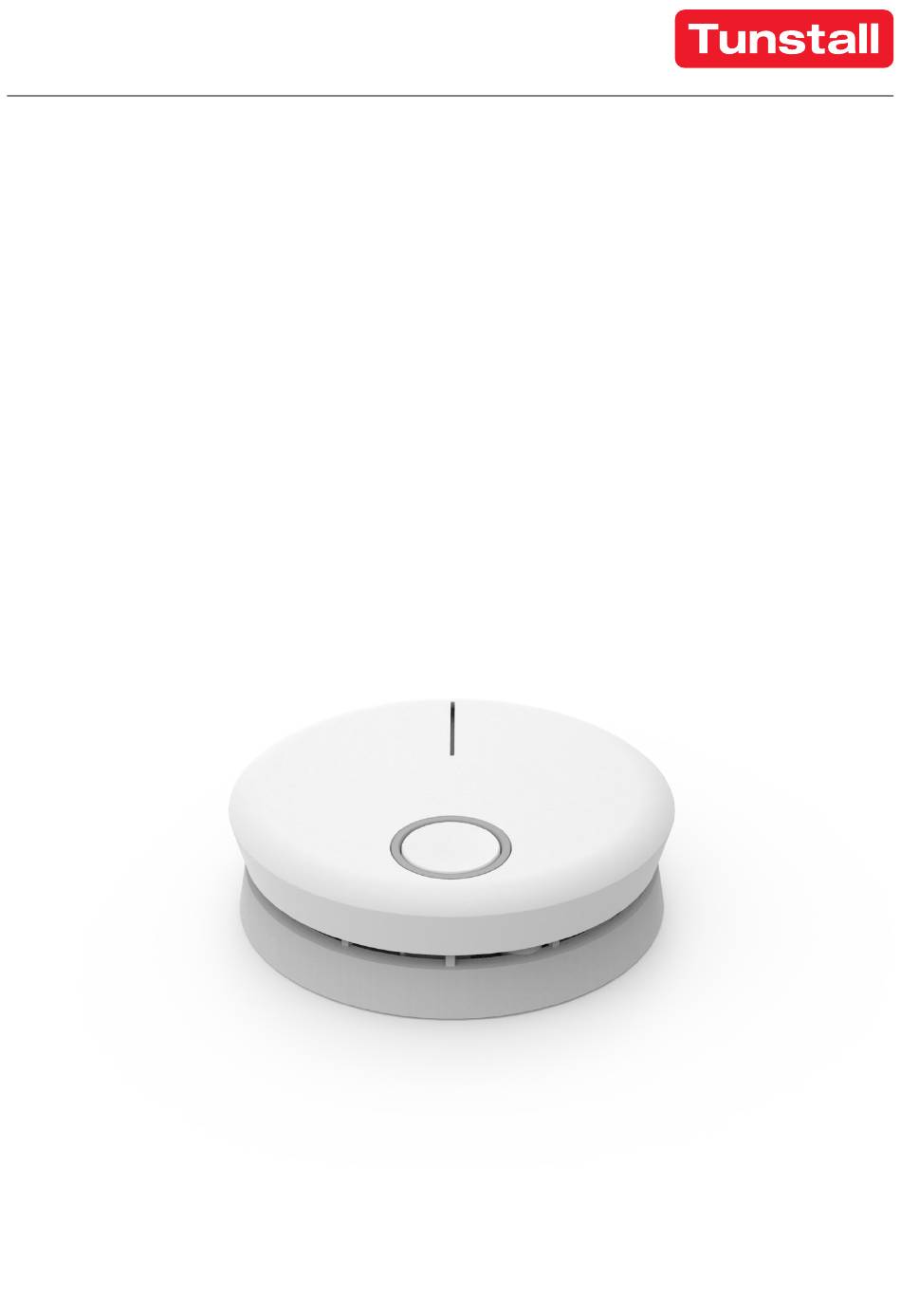

- Page 1 Interconnected smoke alarm Part no. 1423801 Installation guide Works with Lifeline Digital, Careline, Lifeline Smart Hub and Lifeline Vi/Vi+ English Doc. 346 80 21-84. Version 2. Revision 10.2023...
-
Page 2: Table Of Contents
7.1.1.2. Configure location for Careline ....................23 7.1.1.3. Configure location for Lifeline Smart Hub ................23 7.1.2. Configure location in Tunstall+ App ....................23 7.1.3. Configure location in PC Connect ....................24 7.1.3.1. Configure location for Lifeline Vi/Vi+ ..................24 8. -
Page 3: Safety Instructions
1. Safety instructions • The smoke alarm generates a powerful and shrill noise, which can be harmful to your ears. Keep at least a 50 cm distance from the alarm while performing the function test. • Never paint the smoke alarm. •... -
Page 4: Introduction
A communication test should always be performed after installation. The smoke alarm can be used stand-alone or connected to a Tunstall hub through social alarm radio to communicate with the alarm receiver or ARC (Alarm Receiving Center) operator. -
Page 5: Led Indicator
Front button Back button Front button + back button Long press 2 Long press 1 Short press Long press 2 Short press Long press 1 With bracket Alarm test Communication test in normal state With bracket Halt alarm temporarily in alarm state Without Power In registration mode... -
Page 6: Change Language
1 (default) English Swedish Norwegian Danish German French Spanish Finnish Dutch 2.1.6.2. Change language NOTE Language can only be changed on the controller smoke alarm. All other smoke alarms follows the controller's language settings. Press and hold both front and back button over 3 seconds to enter "Registration mode". Short press the front button (0.2 to 1 seconds) to enter "Language mode". -
Page 7: What´s In The Box
Communication test (interconnection) - Every 25 hours the communication between the interconnected smoke alarms is automatically tested. 2.2. What´s in the box The smoke alarm box contains: • Smoke alarm (built-in, non-replaceable batteries included) • Bracket (the smoke alarm is delivered with the bracket mounted in a shipping position (upside down) -
Page 8: Overview
3. Overview Front • 1. Front button 2. LED (green/red) Back • 3. Back button • Side... -
Page 9: Recommended Placement
4. Recommended placement 1. Bedroom 2. Bathroom 3. Kitchen 4. Living room 5. Dining room For minimum protection - Smoke alarm on each storey - Every 7.5 metres of hallways and escape routes - Within 3 metres of all bedroom doors For recommended protection (in addition to the above): - Smoke alarms in every room (except kitchens and bath- rooms) -
Page 10: On A Sloping Ceiling
walls and corners. Additionally, mount the alarm at least 300mm from any light fitting or decorative object which might prevent smoke entering the smoke alarm. We do not recommend wall mounting of smoke alarms. 1. Ideal in centre of ceiling 2. -
Page 11: Registration
5. Registration The smoke alarm can easily be connected to other smoke alarms to form a system. First, you need to register a controller device that you can connect the other smoke alarms to. NOTE Even if you only use one smoke alarm, you still have to register it as the controller. NOTE If you replace the controller device, you have to connect the new controller to the hub and all interconnected smoke alarms must be deleted and then connected to the new controller. -
Page 12: Replacing A Smoke Alarm
NOTE If you replace the controller, all interconnected smoke alarms need to be reinstalled. • To delete an interconnected smoke alarm, press and hold the back button for at least 6 seconds. When registration is deleted the device announces ”Registration delete completed successfully” and the green LED lights up. -
Page 13: Connecting To Hub
6. Connecting to hub The procedure for connecting the smoke alarm depends on the hub. NOTE If several smoke alarms are included in the system, they must all be connected to the hub. 6.1. Connect to Lifeline Digital Make sure that Lifeline Digital and the smoke alarm are switched on. - Page 14 Release the button when the device announces "Au- to pairing mode" to automatically connect the smoke alarm to an available radio sensor position or keep the button pressed down until the device announces the number of the specific radio position that you want to connect to.
-
Page 15: Connect To Careline
NOTE It is important to note in which room each smoke alarm will be placed. After installation, use DMP or Tunstall+ to configure the location for each smoke alarm in the system. If smoke is detec- ted, the smoke alarm's location is sent... - Page 16 Press and hold also the grey and the red button and keep all buttons pressed until a rising sound signal is heard. Then release all buttons. The device is now in programming mode, indicated by a rolling light between the LED’s. NOTE If no further buttons are pressed, the device will automatically exit the pro-...
-
Page 17: Connect To Lifeline Smart Hub
Care alarm This only works if your alarm receiver is able to receive these types of alarms. If not, please contact Tunstall support, +46 (0) 20 - 66 11 11. If you want this alarm to be sent directly when detected you need to change the timeout for passive alarms. This is handled in the Careline Edith software in the tab Timers. - Page 18 Press and hold the green Cancel button for five sec- onds until you hear a confirmation tone. Then release the button. The device announces: "Programming mode" and the red Help button flashes slowly. Press and hold the green Cancel button on the de- vice for three seconds until you hear the announcement "Registration mode"...
-
Page 19: Connect To Lifeline Vi/Vi
NOTE It is important to note in which room each smoke alarm will be placed. After installation, use DMP or Tunstall+ to configure the location for each smoke alarm in the system. If smoke is detec- ted, the smoke alarm's location is sent... -
Page 20: Replacing The Hub
Short press the back button (0.2 to 1 seconds) on the smoke alarm. The Lifeline Vi/Vi+ will confirm receipt of the smoke alarm signal by announcing "Smoke detector regis- tered". NOTE If the registration fails, enter program- ming mode again and short press the back button (0.2 to 1 seconds) on the smoke alarm. -
Page 21: Installation
If smoke is detected, the smoke alarm's location is sent to the hub and ARC. The smoke alarm announces "Warning Fire Alarm" or "Warning Fire Alarm in another room". The location can be configured in DMP, Tunstall+ App or PC Connect. 7.1.1. Configure location in DMP The steps required to configure the location code in DMP differ slightly depending on the hub and are described separately below. -
Page 22: Configure Location For Careline
For further instructions, see the DMP user manual. 7.1.2. Configure location in Tunstall+ App Log in to the Tunstall+ App and select your device. Tap the Sensors icon on the navigation bar to load the Sensors page. On the Sensors page, tap the pen icon. -
Page 23: Configure Location In Pc Connect
NOTE Make sure you configure the correct smoke alarm by comparing the Sensor ID in Tunstall+ with the one printed on the back of the smoke alarm. Select location from the drop-down list Location code. Tap Save. To apply the new settings to the device, you can either manually connect to DMP using the buttons on the device or wait for the device to send its next automatic heartbeat. -
Page 24: Disconnecting From Hub
8. Disconnecting from hub The procedure for disconnecting the smoke alarm depends on the hub. 8.1. Disconnect from Lifeline Digital To disconnect the smoke alarm from Lifeline Digital: Make sure that Lifeline Digital and the smoke alarm are switched on. Press and hold the green button , then press and hold the yellow button... -
Page 25: Disconnect From Careline
• "Operation failed" followed by an error code if the smoke alarm failed to disconnect: ◦ " Error code Three" if the radio code was not stored in the device ◦ " Error code Four" if there was a general failure to erase the radio code from the device Press the green button to exit programming mode. -
Page 26: Disconnect From Lifeline Smart Hub
You hear an acknowledgement signal from the hub that confirms the disconnection. Press the green button to exit programming mode. 8.3. Disconnect from Lifeline Smart Hub You can disconnect a smoke alarm from Lifeline Smart Hub using DMP. Log in to DMP. Select a device to open the device information window. -
Page 27: Maintenance And Cleaning
9. Maintenance and cleaning 9.1. Manual alarm test NOTE Test the smoke alarm at regular intervals. NOTE The smoke alarm generates a very powerful and shrill tone which can be harmful to your ears. Please keep at least a distance of 50cm during the function test. NOTE Before you perform the test, make sure the smoke alarm is in normal mode. -
Page 28: Battery
NOTE The test will take about 20 seconds. After the test, each smoke alarm enters normal mode automatically. 9.3. Battery 9.3.1. Battery life The smoke alarm has a built-in, non-replaceable battery. The battery lifetime is 10 years. After 10 years, the smoke alarm should be replaced. -
Page 29: Disposal And Recycling
10. Disposal and recycling When the device is decommissioned, dispose of the device in accordance with current local regulations. -
Page 30: Technical Data
11. Technical data Detection method Optically (photoelectric) Operating voltage 3V DC Alarm indication Optical and acoustic Class of protection EN 14604:2005 Average lifetime of the Lithium battery at 15-20ºC More than 10 years Operating temperature range -10 to +55°C Indicator Red / green LED Signal tone >85 dB(A)/3m... - Page 31 Tunstall does not accept responsibility for any errors and omissions within this document. © 2023 Tunstall Group Ltd. ® Tunstall is a registered trademark. Tunstall declares that this radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following address: https://www.tunstall.co.uk/declaration-of-conformity Transmitting power: The transmitted power in the actual frequency band is less than 1mW e.r.p.
