Mester MAL05100W27V40KDT3 Installation Manual

LED AREA LIGHT
_____________________________________________________________________________________
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before atemp�ng installa�on
or servicing.
- This product must be installed in accordance with the na�onal electric code (NEC) and all
applicable federal, state, and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any altera�on or modifica�on of this product is expressly forbidden as it may cause serious
personal injury, death, property damage, and/or product malfunc�on.
- To prevent product malfunc�on and/or electric shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C and to
be horizontally mounted with the LEDs facing down.
- This product must be installed in accordance with the applicable installa�on code by a Person
familiar with the construc�on and opera�on of the product and the hazards involved.
- MIN 75°C SUPPLY CONDUCTORS
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
- CAUTION - RISK OF FIRE
- Adjustable Arm/Slipfiter/Yoke Mounted with PHOTOCELL func�on �lt angle should not exceed
15 degrees.
- This product is not available for several special environments, such as places with corrosive gas
liquids or high pressure water vapor.

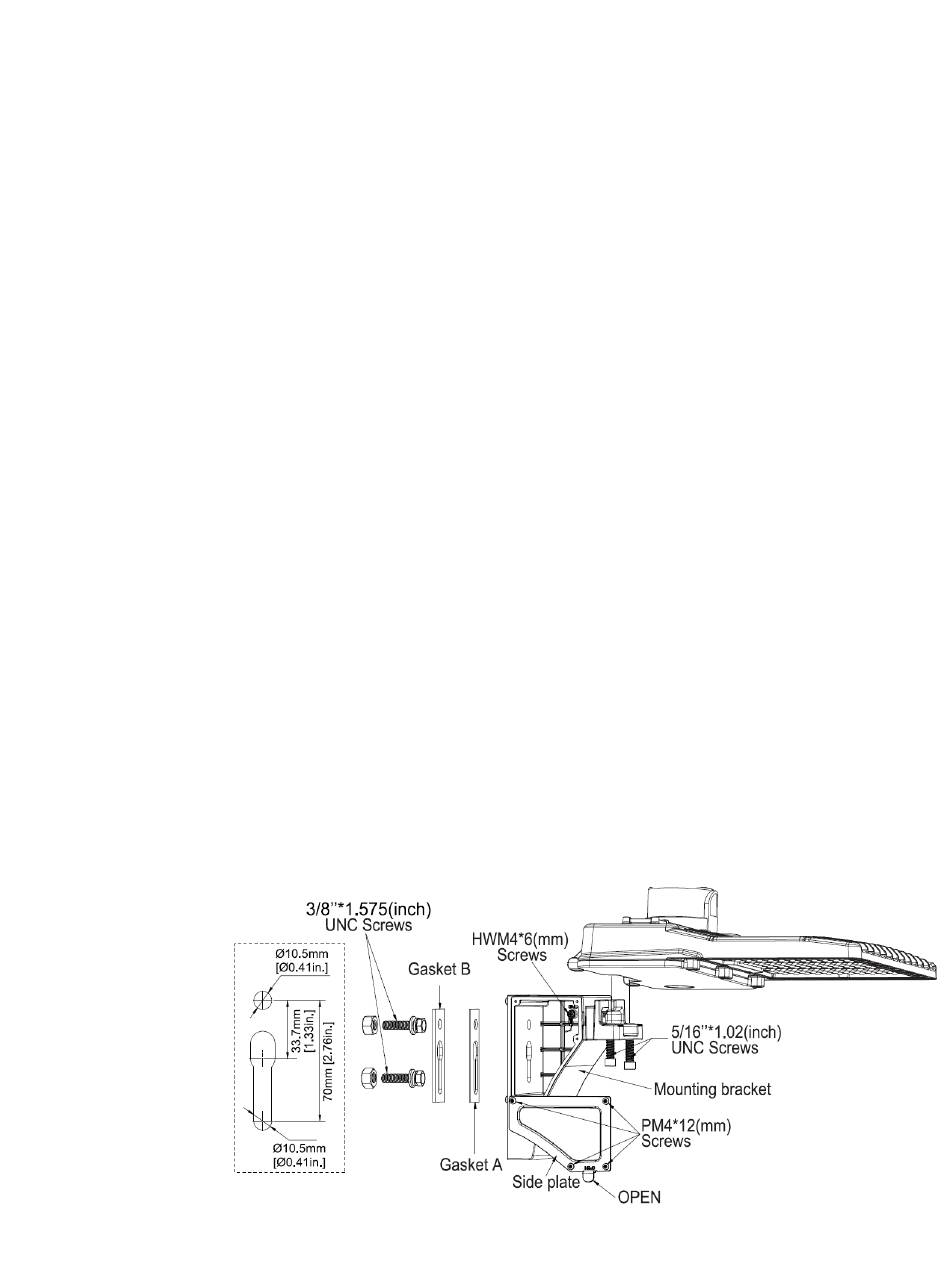

Square/Round Pole Mount

1. Remove the side plate from moun�ng bracket.
2. Fix the bracket to the pole with 2pcs 3/8 screws.
3. Route the cord into moun�ng bracket through the hole for wiring, slide the fixture onto the
bracket and �ghten 2pcs botom screws.
4. Slightly drag the wires to make sure the hole on bracket is sealed by silicon gasket.
5. Make wiring connec�on as per wire diagram below, replace the side plate and fasten screws.
Silicone gasket
usage instruc�ons:
First, only use
silicone gasket A
while using a
round pole.
Second, you need
to use two silicone
gaskets at the
same �me while
using a square
pole.

WARNING!!!

Installa�on Guide
