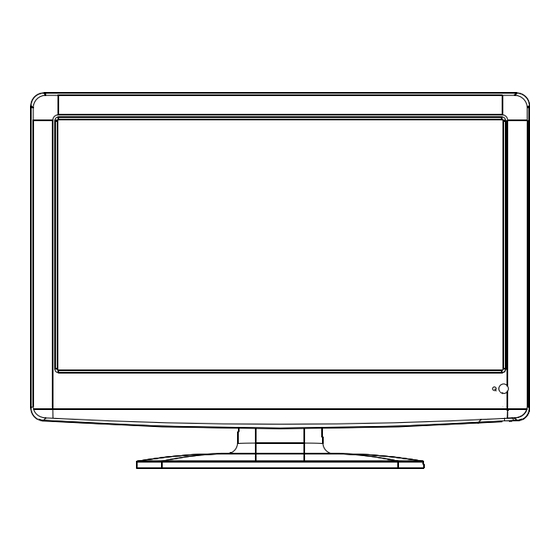

- Page 1 LCD TV FCD LA USER MANUAL L19A10HD...
-
Page 2: Table Of Contents
Contents Safety and warnings.............2-3 Installation................4 -7 Remote Control..............8-9 Operation................10-13 Trouble Shooting..............14 Technical specifications............15... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION CAUTION 1) Read these instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN! 2) Keep these instructions. CAUTION 3) Heed all warnings. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER 4) Follow all instructions. - Page 4 WARNINGS AND CAUTIONS Warning High voltages are used in the operation Caution of this television receiver. Do not remove Do not trap the power supply cord under the cabinet back from your set. Refer the television receiver. servicing to qualified service personnel. Caution Warning Never stand on, lean on, or suddenly push...
-
Page 5: Installation
INSTALLATION Front panel KEYBOARD SOURCE MENU VOL+ VOL- STANDBY 1 SOURCE Display the input source menu. In MENU mode, press SOURCE to confirm the selected item. 2 MENU D isplay main MENU. 3 CH+/CH- In TV mode press CH+ or CH- to change the channel up and down. - Page 6 INSTALLATION ANTENNA CONNECTION Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
- Page 7 INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC. This sequence is very important. HDMI INPUT AUDIO INPUT VGA INPUT...
- Page 8 INSTALLATION CONNECTING TO AV EQUIPMENT This TV provides one group of AV and one group of YPbPr for convenient connectionto VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.
-
Page 9: Remote Control
REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL 1:POWER:To set the TV to standby or power on. :In USB mode, used as reverse key, in teletext mode used as subpage key. : In USB mode, used as forword key, in teletext mode used as reveal key. Press in USB Mode to begin or continue playback. - Page 10 REMOTE CONTROL TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain :...
-
Page 11: Operation
OPERATION Installation Guide Channel Tuning Please select an OSD Language : 0 Programme(s) DTV : 0 Programme(s) Cesky English Magyar Polski Fran ais Radio : 0 Programme(s) Espanol Dansk Hrvatski Nederlands Portugues UHF CH 68 DTV Deutsch Italiano Norsk Pycck NOTE: Country All the channels including ATV, DTV and Radio can... - Page 12 OPERATION NOTE: Picture Mode Standard Press teletext red button to store the channels Color Temperature after manual tuning. Aspect Ratio 4). Program edit: Noise Reduction < < > > PICTURE Screen You can Delete ,Rename ,Move, Skip , FAV any programs.
- Page 13 OPERATION 5.OPTION MENU The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language,Subtitle language etc. USB 2.0 OSD Language English Audio Languages Subtitle Languages Country Australia < < > > OPTION Restore Factory Default PHOTO MUSIC MOVIE...
- Page 14 OPERATION Select the media file by pressing , then INFO the preview frame will pop up.Press the button to choose the programs , Press to play the media file in full screen.When the INFO key, you can display the highlighted program's media file (photo,music, Movie, or text type) is information.
-
Page 15: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS LCD : Viewing Picture Size(diagonal) 18.5"(46.99cm) Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.7M Brightness 250 cd/m 800:1 Contrast ratio Response time 5 ms Viewing angle 170 (H)/160 (V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
