Summary of Contents for AKKTOL BT-607

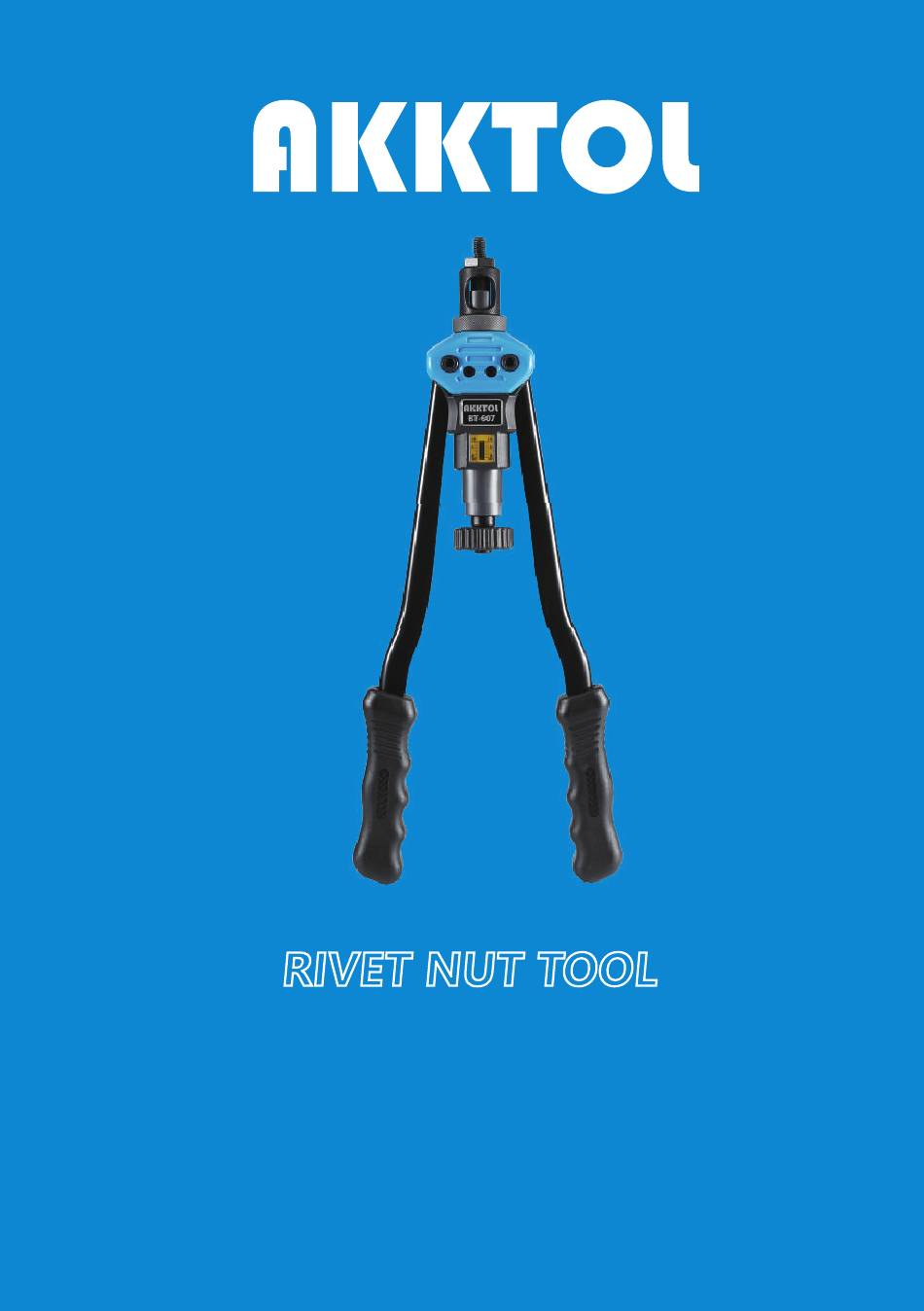

- Page 1 RIVET NUT TOOL BT-607 USER MANUAL...
- Page 2 Please feel free to contact us or email us any time if there is any problem. Warranty Registration There are 3 easy ways to register your 2 year limited warranty. Facebook support@akktol.com www.akktol.com/register @akktol Precautions 1. Before beginning any operation, it is mandatory to read this manual of guidelines, which guarantees the proper functioning and full performance of the product.
-
Page 3: Table Of Contents
Catalog ......................Parts Name .................... Technical Description ......................Packing List ............Apply to All Kinds Nut of Various Materials ....................... Rivet Nut Chart ................How to Change the mandrel ? ........... Parameters for Recognizing Stroke Gauge ....................... Use of Riveter ................ -
Page 4: Parts Name
Outer Sleeve Sliding Sleeve Locking Nut Scale Identification Installation Knob Technical Description Name Rivet Nut Tool Model BT-607 Weight Approx. 1350g Length 410mm (16”) Max. Working Stroke Max. Effective Working Stroke Metric M3-M12; SAE 6-32, 8-32,10-32 Mandrel Specification 10-24, 1/4-20, 5/16-18, 3/8-16, 1/2-13 Max. -
Page 5: Packing List
125pcs/ storage case... -
Page 6: Apply To All Kinds Nut Of Various Materials
6-32 8-32 10-32 Rivet Nut Chart Length After Workpiece Drill Size Compression Thickness do(mm) (mm) (mm) (mm) e(mm) h(mm) 0.5-2.0 0.5-2.0 10.9 0.5-2.5 13.1 0.5-3.0 12.3 14.9 0.5-3.5 14.5 10.9 0.5-3.5 12.5 17.1 0.5-3.5 18.2 UNC 6-23 0.3-2.0 11.4 UNC 8-32 0.3-2.0 10.1 13.1... -
Page 7: How To Change The Mandrel
How to Change The Mandrel ? Before using the riveter, you need to check the information in the rivet nut chart and the thickness of your workpiece to ensure that the riveting range of the rivet nut covers the thickness of your workpiece. Choose the right mandrel for the rivet nut you are using. Note: The M8 mandrel is already installed on the tool, so the small box of M8 is empty. - Page 8 3. Fully depress the inner hex sleeve and thread the selected mandrel into the tool by hand until it reaches the bottom. The mandrel does not need to be torqued. Release the inner hex sleeve and allow it to fully reengage the hex part of the mandrel. If the mandrel and inner hex sleeve do not initially align, slightly rotate the mandrel until the inner sleeve clicks up and reengages.
-
Page 9: Parameters For Recognizing Stroke Gauge
Parameters for Recognizing Stroke Gauge 1. Initial State The top of white line should be at 0mm when the handles are closed (Fig 1). Fig1 2. Stroke Check Open the handles, the top of white line is at 6mm( Fig 2), so the working stroke is 6mm, the nut height will be decreased by 6mm after riveting. -
Page 10: Use Of Riveter
Before riveting any rivnut smaller than M8 or 5/6-18, you need to calculate the working/compression stroke by using the chart and formula. Taking the M5 rivet nut working on a 2 mm thick workpiece, for example, the calculation is as follows: The working stroke = 13.1 mm (L) - 1.0 (k) - 8.0 mm (h) - 2.0 mm (e) = 2.1 mm 1. - Page 11 For smaller rivet nuts, please observe the gauge while closing the handles. Stop applying more power on the handles when the decrease in the distance on the gauge approaches the calculated working stroke. Slightly press the handles within a 1mm working stroke until the rivet nut is secure in the hole. For larger rivet nuts, it is not necessary to observe the working stroke in the gauge during riveting.
-
Page 12: Instructions To Adjust The Stroke
Instructions to Adjust The Stroke 1. Proper adjustment of the riveter is good for efficient and easy operation. 2. The adjustment of the riveter will vary, depending on the size and type of rivet nut being used and the hole size. 3. -
Page 13: Thank You
Thank You Dear Customer, Thank you for choosing AKKTOL. We hope you are pleased with your rivet nut tool. If you have any questions or are unhappy with support@akktol.com. your purchase, please do not hesitate to reach out to us at We would be more than happy to address your issue and we would appreciate the opportunity to make it right. - Page 14 @akktol RoHS Made in China Yibei Technology (Shenzhen）Co., Ltd 13A10, Global Logistics Center, China South City, Pinghu, Longgang, Shenzhen, China 518000 AKKTOL is a trademark of Yibei Technology (Shenzhen) Co., Ltd, registered in the United States and other countries.
