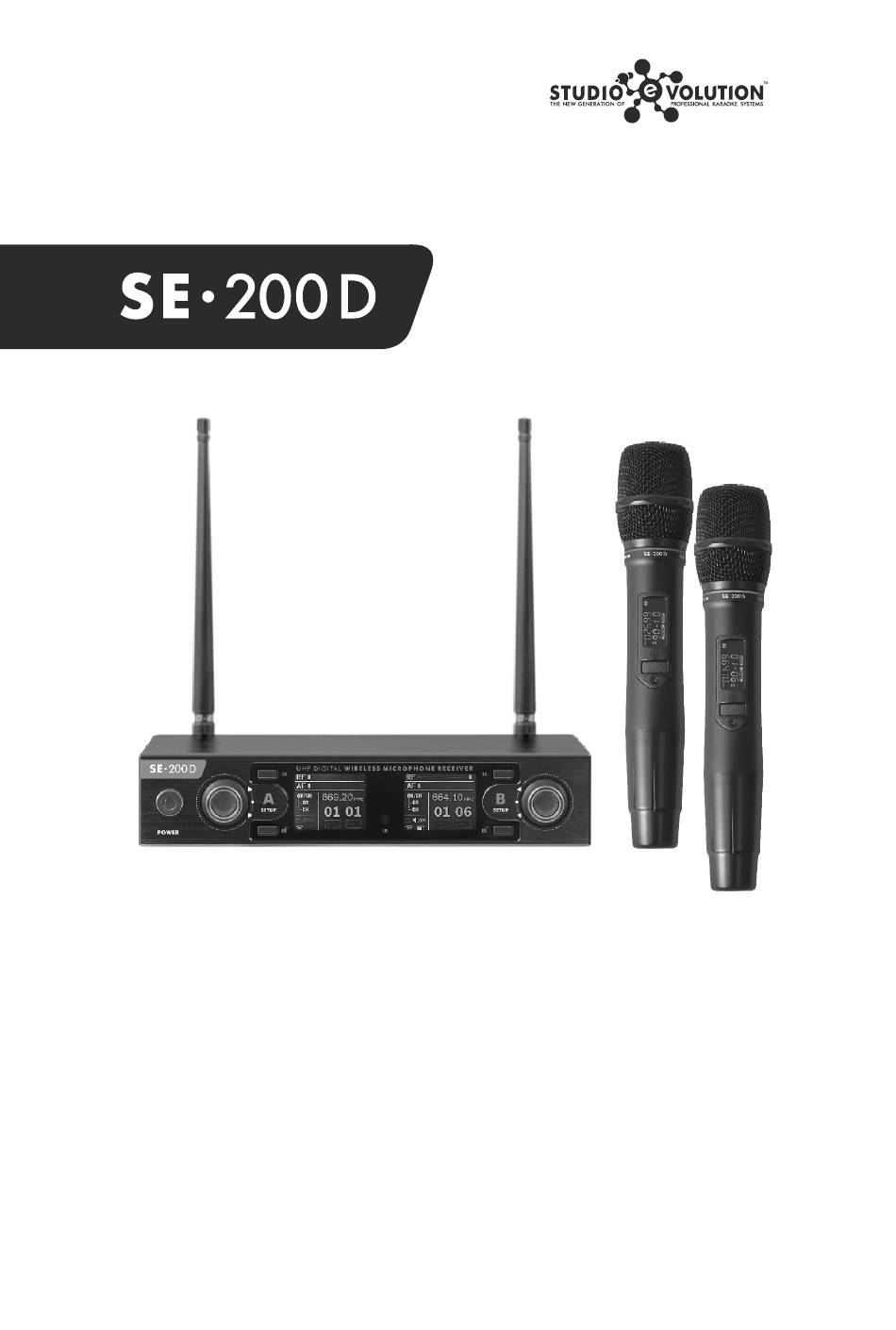

DIGITAL

WIRELESS
MICROPHONE

SYSTEM
OPERATING
MANUAL
Please
read
this
manual
carefully
before
use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SE-200D and is the answer not in the manual?

Questions and answers

Summary of Contents for Studio Evolution SE-200D

  • Page 1 DIGITAL
 WIRELESS MICROPHONE
 SYSTEM OPERATING
MANUAL Please
read
this
manual
carefully
before
use.
  • Page 2: Table Of Contents

    CONTENTS Brief
Introduction.............

1 Main
 Features............
 1 Parts
 (Receiver)............
 2 Receiver
 Display............
 3 Handheld
Mic
Operation..........
6 Receiver
 Operation..........
 8 Technique
Specification...........10 1.
BRIEF
INTRODUCTION This
digital
wireless
system
adopts
intelligentized
cryptographic
 hardware.
Unique
sound
and
RF
performance. With
optional
professional
recharge
accessories.
 Endurable
rechargeable
lithium
batteries.

 Frequencies
grouping,
colorful
TFT
LCD
and
humanized
menu make
it
easy
for
single
or
multi­sets
mounting. 2.
MAIN

FEATURES •

UHF
band
(660­690
Mhz). •

Digital
audio
transmission
technology. •

Unique
digital
16
bit
ID
pilot
technology,




no
crosstalk
disturbance
even
at
the
same
frequency.
 •

Ultra­short
audio
latency. •

48
KHz
audio.
 •

Frequency
response:
30­20000
Hz. •

Colorful
TFT
display
and
menu
settings. •

Auto
frequency
scanning
and
spectrum
display. •

Working
distance:
40
m.
  • Page 3: Parts (Receiver)

    3.
PARTS





(RECEIVER) 1.


POWER 2.


SETUP

A 10.


SETUP

B 3.


IR
(infrared) 11.


ANT­A 4.


UNLOCK
 12.


ANT­B 5.


TFT

DISPLAY 13.


MIX.OUT 6.


IR
(infrared)
 14.


BALANCED

OUT
B
 7.


TFT

DISPLAY 15.


BALANCED

OUT
A 8.


IR
(infrared) 16.


DC
INPUT 9.


UNLOCK 17.


USB
CHARGE
OUTPUT








...
  • Page 4: Receiver Display

    4.

RECEIVER
DISPLAY 669.20 07 05 GR/CH SCAN RF:


Indicate
signal
intensity,
the
longer
length
of









the
color,
the
stronger
signal. AF:

Indicate
audio
level,
the
longer
length
of
the








color,
the
stronger
signal. GR:
Group:



Number
above
the
icon
indicates
the
current























frequency
group. CH:
Channel:
Number
above
the
icon
indicates
the
current























group
frequency. Auto
scan.
Automatically
scan
up
or
down
to
search
 for
available
frequency
until
the
desired
frequency
is
 reached.
Can
be
set
under
SCAN
function. Lock
status,
the
bottons
are
ineffected
under
this
status. Mute,
indicates
Receiver
is
under
MUTE
status. Indicate
the
current
voice
volume
of
Receiver,
 adjustable
range
is
0%­100%. IR
icon,
when
flashing
indicates
now
is
sending
 SYNC
signal. Battery
icon,
indicates
the
handheld
microphone
 battery
status
during
charging.
  • Page 5 Display
during
operation. When
the
receiver
is
working,
long
press
UNLOCK
to
unlock
 the
system
before
settings.
Begin
from
channel
adjustment
details are
below. Note:
the
below
setting
is
under
unlock
status,
 long
press
UNLOCK
before
setting. Channel
setting
mode. Select
menu
icons. Numbers
change. 669.20 669.20 07 05 07 05 GR/CH GR/CH SCAN Press
setup
knob
to
enter
into
the
channel
setting
mode.
 Chose
GR/CH
by
rotating
the
knob.
Press
it
for
confirmation
.
 Then
adjust
the
control
knob
to
select
the
appropriate
menu
item (GR
or
CH).
Select
the
appropriate
group
or
channel
by
knob
rotation.
 Press
the
control
knob
to
confirm
the
appropriate
channel,
finally
 press
IR
function
for
synchronization
with
microphone.
  • Page 6 Scan
available
channel
mode. Select
menu
icons. Spectrum
analysis
of
enviromental.
 669.20 669.20 GR/CH SCAN SCAN X:790.00MHz3MHz/div DOWN X:790.00MHz3MHz/div V:REF-50dBm20dB/div V:REF-50dBm20dB/div Adjust
SETUP
control
knob,
press
SCAN
function
enter
into
scan
 available
frequency
mode.
Then
adjust
the
control
knob,
select
UP
 or
DOWN
can
automatically
scan
up
or
down
to
search
for
available
 frequency
until
the
desired
frequency
is
reached.
This
function
 is
convenient
for
user

to
find
the
available
frequency
quickly
under
 different
situation. Volume
setting. Voice
volume. Rotate
SETUP
control
knob
to
adjust
the
Receiver
 voice
volume,
visually
showed
by
Bar
chart
and
%
number.
  • Page 7: Handheld Mic Operation

    5.
HANDHELD




MICROPHONE




OPERATION 1.

Microphone
capsule:
convert
sound
to
electrical
signal. 2.

LCD
display:
indicates
the
microphone
working
information. 3.

SYNC
window:
use
to
receive
IR
signal,
from
Receiver
IR
window
. 4.

ON/OFF
switch:
controls
ON/OFF
power
and
mute
function. 5.

Battery
Sink:
insert
1x18500
lithium
battery,
note
to
insert
it
in





correct
polarity. 6.

Mic
cap:
unscrew
it
when
change
battery. 7.

Micro­USB
socket
for
charging
(DC,
5
volts).
 Indicates
below
working
 channel HANDHELD
 Indicates
below
working
 MICROPHONE
 group Indicates
Group
7,
Ch05 Indicates
mute
status Indicates
current
 using
frequency
(811,5MHz) Indicates
battery
status,
 flashing
indicates
battery
 low
power GROUP CHANNEL HI
or
LO
indicates
high
or
 low
transmition
power...
  • Page 8 Remove
the
battery
cover,
insert
1x18500
Lithium
battery
in
 correct
polarity. Long
press
ON/OFF
button
in
3
sec,
if
LCD
not
light,
check
whether
 battery
in
correct
polarity
or
battery
is
low
of
power.
If
the
battery
 indicator
of
LCD
display
is
flashing,
please
change
with
new
battery. The
microphone
can
only
work
under
the
same
frequency
 with
Receiver. To
synchronize
the
microphone
with
receiver: 1.
Unlock
A
or
B.
 2.
Press
IR
(receiver). 3.
Put
microphone
IR
in
front
of
receiver
IR. 4.
Сheck
if
the
same
channel
is
indicated
on
microphone
and




receiver
displays. Note!
The
SYNCHRONIZATION
period
is
within
30
seconds. After
switching
ON,
the
microphone
automatically
enters
 the
default
mode
and
automatically
uses
the
last
saved
channel.
 HANDHELD
MICROPHONE
USING
TECHNIQUE Don’t
hold
the
microphone
Grille: Avoid
holding
the
microphone
on
antenna
position: antenna
 position antenna
 position...
  • Page 9: Receiver Operation

    Don’t
use
two
microphones
together: Attention:
the
using
distance
 between
the
microphone
Grille
 and
mouth
needs
to
be
less
 than
15cm. Avoid
microphone
location
 in
front
of
loudspeakers. 6.
RECEIVER
OPERATION Pull
out
the
antenna
(11),
(12),
make
them
to
be
perpendicular
 to
the
receiver. Connect
the
power
adapter
(12V
1A,
positive
central
contact) to
the
DC
socket
(16)
of
the
Receiver
before
using.
Make
sure,
 that
the
adaptor
is
suitable
for
the
Receiver. Connect
the
audio
cable: Mix
output:
connect
the
audio
cable
(purchased
additionally)
 to
the
MIX.
OUT
socket
(13)
while
the
other
side
connect
 to
INPUT
socket
of
the
mixer
or
amplifier. Balance
output:
connect
the
balance
audio
cable
(attached)
 to
the
BALANCE
socket
(14/15)
while
the
other
side
connect
 to
INPUT
socket
of
the
mixer
or
amplifier. Connect
the
USB
charge
cable: Connect
the
charge
cable
(attached)
to
the
USB
socket
(17)
 while
the
other
side
connect
to
the
handheld
microphones. Notes!



You
may
charge
microphones
by
another
5V
chargers














(for
smartphones).














During
charging
the
microphone
doesn’t
work! Do
not
charge
non­rechargeable
batteries! Turn
on
the
power
button
(1),
LCD
display
(5,7)
will
shine.
 Receiver
is
in
working
status.
Note:
Before
turn
off
the
Receiver,
 turn
the
volume
control
knob
(2,10)
to
the
minimum
volume.
 Adjust
the
volume
as
you
need
after
next
turning
on.
  • Page 10 Select
function
by
adjusting

IR
SYNC
picture the
SET
UP
knob
(2/10)
 (Function
details
refer
to
the
 Instruction
of
Receiver
TFT

 display
function). See
below
IR
SYNC
picture,
 long
press
IR
button
under
 unlock
status,
Receiver
start
 sending
signal,
automatically
 turn
to
work
after
completion. Long
press
IR
button,
start
sending
signal
while
signal
icon
 flashing.
Turn
on
handheld
microphone,
put
the
IR
window
in
front
of
 the
Receiver
IR
window.
Signal
icon
disappears
when
devices
are
 connected
by
IR.
Shown
frequency
need
to
become
the
same
on
 handheld
microphone
and
on
Receiver
displays. Recommendations
 of
Receiver
installation. The
distance
from
 the
receiver
to
walls
or
to 1
meter
 floor
needs
to
be
not
less or
more than
1
meter.
Otherwise,
 1
meter
 antennas
efficiency
will or
more decrease
and
working distance
will
be
reduced. Pull
out
antennas
vertically for
better
signal
receiving.
  • Page 11: Technique Specification

    7.
TECHNIQUE
SPECIFCATION
 RECEIVER Carrier
Frequency:
UHF660­690
MHz Bandwidth:
30
MHz Channel
Bandwidth:
300
KHz Preset
Group:
15
group,
6
frequencies
in
each
group. Dynamic
Range:
96
dB Distortion:
<0.1% Frequency
Response:
30­20
Khz
/
+­2
dB Signal/Noise
Ratio:
96
dB Receiving
Sensitivity:
­95
dBm Transmission
Delay:
<3
ms Power
Supply:
DC
12V

1A Audio
Outputs:
1
x
TRS
6.3
mixed
A+B,

























2
x
XRL
Balanced
A/B MICROPHONE Carrier
Frequency:
UHF660­690
MHz Bandwidth:
30
MHz Frequency
Switch:
IR
SYNC Output
Power:

9
mW Harmonic
Radiation:
<­50
dBc Battery:
1x18500
Lithium Battery
operation
before
recharging:
>8
h...
  • Page 12 Content
List 1.


Receiver

........
x
1 2.


Handheld
Microphones

....
x
2 3.


Antiroll
rings

........
x
2 4.


Audio
Cable

........
x
2 5.


Charge
Cable

......
x
1 6.


Power
Adapter

......
x
1 7.


18500
Rechargeable
Battery

..
x
2 8.


Manual

.........
x
1 WWW.STUDIO­EVOLUTION.COM...
