Summary of Contents for Equator VSM 6000

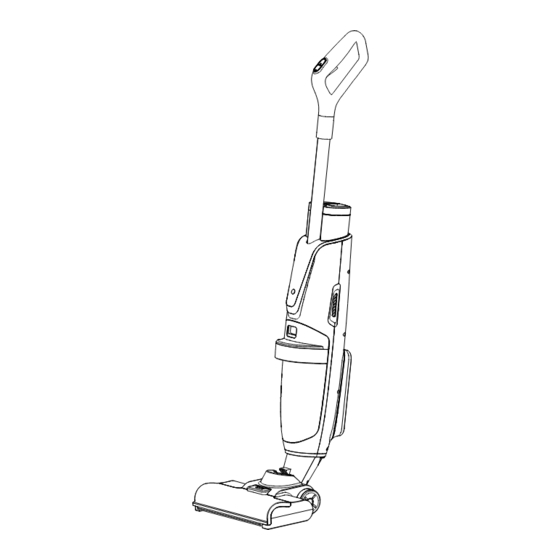

- Page 1 VACUUM SweepMOP Vacuum Sweep + Mop Model - VSM 6000 OWNER’S MANUAL Read the instructions carefully and keep for future reference...
- Page 2 Installation e.g. Charging Station not correctly connected Maintenance e.g. Failure to clean roller brush, HEPA filter, and other parts Mishandling e.g. Connecting parts incorrectly...
- Page 3 either 1. Open Smart Phone 2. Open Photo 3. Scan QR Code 4. Click the Link...
- Page 4 Safety Please follow the safety precautions listed below: This Vacuum Sweep Mop is not intended for use by children or persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance. Use only the power adaptor that is included with this appliance.
-
Page 5: Parts And Accessories
Parts and Accessories Charging station HEPA Filter Carpet brush Main body Roller brush Cleaning Brush HEPA Cleaning Brush Adapter... -
Page 6: Product Description
Product Description This appliance is intended for household use. The Vacuum Sweep Mop is a multiple function appliance, which can sweep, vacuum and mop many types of floor surfaces and carpets. Power button Spray button ECO/MAX mode Handle Clean water tank status light: Red light: Water shortage White light: ECO mode Blue light: MAX mode... -
Page 7: Digital Display
The indicator light will light up in purple when spraying water manually Model VSM 6000 W/B Clean - 600 ml / Waste - 550 ml Water Tank Capacity Adaptor Input / Output 100V ~ 60Hz 0.8A / DC 27V 0.8A... -
Page 8: Product Assembly
Product Assembly To assemble, insert the Handle into the Main Body until you hear a click that will confirm the Handle is in place. To remove the Handle, insert a screwdriver or Allen key into the small hole located at the back of the Main Body and press while lifting the Handle up. - Page 9 Place the Waste Water Tank at an angle at the base of the Main Body and then push into place, ensuring that you hear a click confirming that it has been correctly installed. Install the Roller Brush or Carpet Brush by aligning the groove on the right side of the brush with the drive shaft and then press down on the Roller or Carpet Brush.
- Page 10 Charging Insert the Adapter into the Charging Station port and plug the other end into the power outlet. Ensure that the Power button is off. Place the Vacuum Sweeper Mop Main Body onto the Charging Station ensuring that there is a battery connection and the unit can start charging.
-
Page 11: Operation
Operation Operate the Vacuum Sweep Mop by following these steps: Remove the Vacuum Sweep Mop from the Charging Station. Place on the floor and press the Power button. Press the Mode button to select either Eco or Max. Press the Voice on or off setting at the back of the unit. Voice on will direct you on how to operate, clean, etc. -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance Routine Cleaning After each use, the appliance needs to be cleaned. Place the Main Body onto the Charging Station. Ensure the Clean Water Tank is full and press the Self-Clean button. During the cleaning process the display time on the display will count down from 59 to 0 seconds. -
Page 13: Troubleshooting
Troubleshooting Does not charge · Check if the Adapter Plug is connected to the power source. · Check if there is water or foreign object on the magnetic connector of the Adapter. Please wipe it dry and clean. · Check if the Main Body and the Charging Station are properly connected. Appliance does not start ·... -
Page 14: Error Code Table
Appliance doesn't move smoothly · The Roller Brush or Carpet Brush are not installed correctly Self-clean doesn't work · Wastewater tank is full · No water in clean water tank Wastewater overflows · Check if the wastewater tank is full. Error Code Table The error code is displayed on the LED Display, which helps to identify the problem. - Page 15 Lead This form is prepared in accordance with SJ/T 11364-2014. O Means that the content of hazardous substance in all materials of the part is below the limit requirements specified in GB/T 26572-2011. X Means that the content of the hazardous substance in the last one homogeneous material of the part.
