Summary of Contents for DALUM CO2

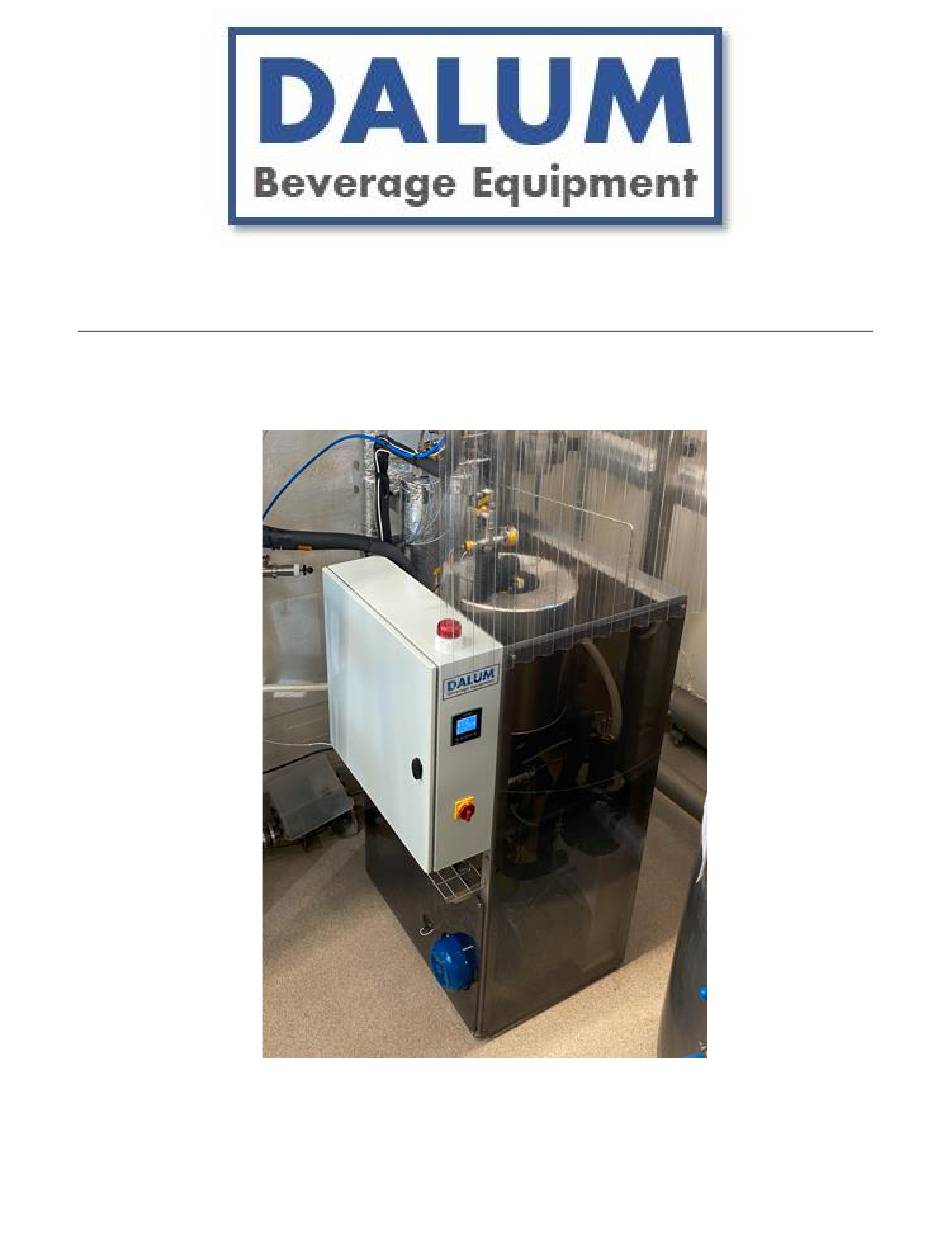

- Page 1 DALUM CO2 Recovery Unit Manual Edition: EN /2023 - Iteration: 1.12 https://www.dalumequipment.com...
- Page 2 Table of Contents Congratulations on acquiring a Dalum CO2 Recovery Unit! Now you are recovering natural CO from your own traceable source and reducing CO emissions.i Note: Please read these operating instructions carefully before commissioning this product. We will be happy to assist you with any question you may have or if any clarification is required.
-
Page 3: Table Of Contents
Moving Plant ..................... 9 1.8.1 Before Moving..................... 9 1.8.2 Loading and Unloading ................10 2. DALUM CO2 Recovery Unit................... 11 Description of the Unit ..................11 Technical Data ....................11 Electrical diagram ................... 12 Process diagram ..................... 12 Components....................13 Short description of components and their function ........ - Page 4 Tank connection ..................22 3.3.7 Internet connection ................... 23 3.3.8 UniCloud connection ................. 26 4. Operating the DALUM CO2 Recovery Unit ............30 The different states that the Unit can enter ............. 31 4.1.1 Running ....................31 4.1.2 Stopped ....................31 4.1.3...
- Page 5 Table of Contents 9.3 Pressure hazard: ....................55 9.4 Regulatory compliance: ..................56 9.5 Cost-effectiveness: ....................56 10. Ending notes ......................58 10.1 List of documents available when buying a DALUM CO2 Recovery Unit ..58 CO2-Recovery Plant EN/2020...
-
Page 6: Introduction
Introduction This Dalum Beverage Equipment operation manual provides support for the setup and safe use of the CO recovery Unit. This operating manual contains important information for the safe and correct setup, connection, and operation of the product. Before installing and starting the device for the first time, you must have read and understood all instructions in this manual. -
Page 7: Important Safety Instructions
Personal protective equipment Risk of injury from propelled parts! ▪ When operating the CO2-Recovery Plant, always wear safety goggles. ▪ All persons standing close to the CO2-Recovery Plant must wear suitable safety goggles. Risk of injury to the hands! For example: Scratches, cuts, penetration wounds, burns and scalding due to hot or cold sources of energy and/or the environment. -
Page 8: Safety Components
Comply with transport regulations and have only people trained in goods handling and with forklift license handling the CO2 Unit at arrival. . Dalum Beverage Equipment shall not be liable for damage caused by non-compliance with the instructions and recommendations in this chapter. -
Page 9: Positioning And Erecting The Unit
1.7.2 Positioning and erecting the Unit. • Move the CO2 Unit and axillary equipment to the area it will be installed in the transport packaging by forklift or pallet lifter at lowest possible elevation. • Remove the wooden box by unscrewing the panes side by side with an electric screwing machine. -
Page 10: Loading And Unloading
If the machine is transported vertically, it can be lifted on the bottom frame with a pallet lifter as the unit has a low point of gravity. Make sure the machine is in balance on the lifting device before moving and move slowly. CO2-Recovery Plant EN/2020... -
Page 11: Dalum Co2 Recovery Unit
DALUM CO2 Recovery Unit Description of the Unit The CO Recovery unit from Dalum Beverage Equipment is a sustainable and compact solution for craft breweries to generate their own CO from the fermentation of their craft beers. The -Recovery plant produces from 0 kg/h up to 15 kg/h of liquid CO based on your requirements. -
Page 12: Electrical Diagram
Electrical diagram The Electrical diagram is added as an Appendix to the manual or as a separate file. Process diagram CO2-Recovery Plant EN/2020... -
Page 13: Components
Components Short description of components and their function Most of the parts are designed by Kim Dalum and made by Dalum Beverage Equipment, if more specific information is needed for any of these components, please contact Dalum Beverage Equipment. For components made outside the company we refer to their manuals – contact us if needed and we provide manuals on request. -
Page 14: Cooling Pump
2.6.4 Compressor The three-stage oil free compressor is designed by Kim Dalum. It is manufactured in stainless steel to improve its lifespan and keep the product clean and the fact that it is oil free eliminates the risk of contaminating the CO2. Every component is food grade quality and qualified. -
Page 15: Gearmotor
2.6.6 Scrubber The scrubber is one of the stages for purifying the CO2. It is the first component that the gas from the fermentation tank enters. There are many kinds of scrubbers, but the scrubber used on the DALUM CO2 Unit is designed by Kim Dalum. The gas is washed/flushed with fresh water and flowing through a filter, thereby removing some of the unwanted substances/molecules from the brewing process. -
Page 16: Dehydrator
2.6.9 Sulfur filter This is another stage for purification of the CO2. The sulfur filter lets the CO2 pass but filters many other unwanted substances on the way through. This is designed by Kim Dalum and built by Dalum Beverage Equipment. -
Page 17: Electrical Components
Most of the electrical components can be found in the electrical cabinet, but some are also mounted in various places on the Unit. The DALUM CO2 Recovery Unit has both a high voltage 230V circuit and low voltage 24V circuit. -
Page 18: Inside The Electrical Cabinet
PLC the speed of the motor is adjusted at all times to fit the production capacity. Router If the router is connected to internet, it is possible for Dalum Beverage Equipment to monitor and analyze performance of the Unit. -
Page 19: Installation
Installation All work covered in this section must be carried out by a qualified and trained technician. Dalum Beverage Equipment shall not be liable for damage caused by non-compliance with the instructions and recommendations in this chapter. The safety instructions and the local accident prevention regulations in force must be observed for all work. -
Page 20: Gas Line Connection
The collected foam may contain some sticky particles, which may affect the performance of check valves and the flow of fluids passage. Recovery Unit from Dalum Beverage Equipment comes with two options. Foam detector and single foam trap or double foam detector connected in series. -
Page 21: Water Line Connection
The pressure is different between the drain points, it can range from 1 bar to 46 bars. Make sure the drainpipes are not blocked and well supported. The drain point should nearby the plant and enough for max 25 l/h of water at floor level. CO2-Recovery Plant EN/2020... -
Page 22: Coolant Connection
Tank connection When connecting the tank there are three main points: 1. The liquid CO2 outlet from the CO2 Unit is a 46-bar pressurized 6x1 mm seamless stainless-steel pipe connected and joint by compression fittings. The transfer Valve 06VA40 should be placed as close to the Storage Tank Liquid Filling line as possible and the pipe must be insulated by at least 30 mm insulation. -
Page 23: Internet Connection
Dalum with proper tank documentation before connecting to the unit. 3. The Storage tank must have an economizer for flash gas return. If not contact Dalum or the tank supplier for installation. Flash gas return from the tank economizer is a low pressure (below 0,5 bar) tube or pipe with 8-10 mm opening connected to the inlet at the Pressure Relief Valve on the feed gas line. - Page 24 Unit. • Open a web browser and go to 192.168.1.1 – here you login with the provided username and password (this is not the SSID and password). CO2-Recovery Plant EN/2020...
- Page 25 Select Scan and join the relevant network. • Enter password and click save – now the CO Unit should be connected to your wireless internet. If any questions or issues with this process, feel free to contact Dalum Beverage Equipment. CO2-Recovery Plant EN/2020...
-
Page 26: Unicloud Connection
If you have not received the mail or have any questions, please contact Dalum Beverage Equipment. The person that registers on UniCloud will become admin and will have authorization to invite others to the company Dashboard. - Page 27 When the password is successfully created the account is verified, and you will have to login to proceed in the process. Login in with your mail and password, and the two-factor authentication code that is sent to your mail. CO2-Recovery Plant EN/2020...
- Page 28 The last step is confirming your phone number, it is required to receive SMS notification if there is an alarm on the DALUM CO2 Recovery Unit. This window should pop-up automatically the first time you login. Otherwise, it can be accessed from your account when logged in.
- Page 29 If you need help or have any questions you are always welcome to contact Dalum Beverage Equipment, together we can overcome the obstacles. Congratulations, everything is now set for you to start using your DALUM CO2 Recovery Unit. 3.3.8.1 UniCloud Dashboard Overview This is the UniCloud overview.
-
Page 30: Operating The Dalum Co2 Recovery Unit
Operating the DALUM CO2 Recovery Unit Before starting the Unit make sure that all connections listed in 3.3 are correctly connected, and that manual valves for refrigerant and fresh water are opened. Note: ½-1 day after yeast is added to the fermenting tank there will be enough CO... -
Page 31: The Different States That The Unit Can Enter
This state is when a serious fault has occurred, this state turns of the high voltage. The self-diagnosing system has stopped the Unit to secure no damage to the Unit, the users, or its environment. For further explanation of the different states contact Dalum Beverage Equipment. CO2-Recovery Plant EN/2020... -
Page 32: Starting The Co Recovery
PRV to the open air. When using the Dalum CO2 Unit, you will experience a few alarms or warnings. As mentioned earlier the system is self-diagnosing and warnings or alarms will appear to secure operation which furthermore protects the system and its users. -
Page 33: Mimic Diagram
In each of the zoomed-in displays you can see additional information for that specific section. CO2-Recovery Plant EN/2020... -
Page 34: Stopping The Unit
Note: If there is a stop at the CO2 unit due to alarm, it will go to STOP and go out of service status. This means that the compressor stops and all valves after the compressor closes. When the compressor does not take CO2, the input pressure will go up and the PRV will open at 0.40... -
Page 35: Standby On/Off
Click OFF as soon as the pressure has dropped 1-2bar. • Wait for one minute and then repeat FORCING ON and OFF on the Blow Off Valve. If there are any questions or uncertainties, contact Dalum Beverage Equipment. CO2-Recovery Plant EN/2020... -
Page 36: Inspection And Maintenance
Inspection and Maintenance Carry out inspection and maintenance on the DALUM CO2 Recovery Unit with regular intervals. • Maintenance and repair work must be performed by trained and qualified people. • Make sure that the system is depressurized before maintenance work. -
Page 37: Planned Maintenance
The Sulfur filter has an operation time of 2 years before it is needed to replace the active carbon. Pressure relief valve for the CO2 collection circuit, which is located before the gas reaches the Unit should be cleaned every 3 month to avoid sticking problems from glucose. -
Page 38: Routine Check
Routine check When the CO2 Unit is in operation, there are multiple temperatures and pressures to keep track of to make sure that the process is running optimally. Most of the information can be seen on the Mimic Diagram, and additional information can be seen when zoomed in on a specific component. -
Page 39: Risk Assessment
The CO2 recapture system utilizes various components, such as compressor, pipelines, and storage tanks, which can malfunction or fail. Such failures can lead to the release of CO2 gas, posing risks to workers and creating asphyxiation hazards in poorly ventilated areas. Regular inspections, maintenance, and testing are necessary to ensure the proper functioning of the system and identify and address any potential issues. -
Page 40: Regulatory Compliance
Cost-effectiveness: The installation and operation of CO2 capture systems can be expensive. Therefore, it is crucial to conduct a cost-benefit analysis that evaluates the expected benefits of the system, such as reduced carbon emissions, increased efficiency, and safe supply, against the costs of installation, operation, and maintenance. -
Page 41: Troubleshooting
Troubleshooting When troubleshooting on the DALUM CO2 Recovery Unit help can be found in this section. If problems cannot be fixed by the brewery’s dedicated personnel do not hesitate to contact Dalum Beverage Equipment for support. Alarms are reset by activating STOP/START. - Page 42 To get rid of oxygen, us automatic high glycol temp. or depressurize function. very rarely the due to If the sterile filter is very cold and liquid CO2 in the possible covered by ice liquid CO2 could fill the stripper pipe and the CO2-Recovery Plant EN/2020...
- Page 43 06LT61 Fault sensor 06LT60 is high compressor cooling loops or Calibration the lower sensor condenser. Check if the CO2 drain 06LT61 must also be valve 06VA40 on the tank holds high. One or both condenser pressure or if the pressure...
- Page 44 If not, the solenoid is defect or signal compressor cooling is missing. NB 240 Volts! pump is not running. In RUN check if the compressor Can be caused by temperature drops when forcing the pump not running, CO2-Recovery Plant EN/2020...
- Page 45 I7 to I11 on the PLC exceeds 315C for 10 terminals. seconds, the high Try to reset on start/stop and if the voltage power will be problem occurs again contact DBE. cut off and can be reset by pressing ON/OFF. Could be CO2-Recovery Plant EN/2020...
- Page 46 51 Warning 06LT62 CO2 The CO2 storage tank No action needed unless the tank is Tank Full is 95% full for 10 not full or more than 95% full, in this...
- Page 47 Heating Up reach 260 C during the heating process. Could DALUM if dew point goes high in next be caused by cycle. numerous stops and If the dehydrator was not warming up...
- Page 48 260 C during the Heating Up heating process. Could DALUM if dew point goes high in next be caused by cycle. numerous stops and If the dehydrator was not warming up...
- Page 49 02LT60 High Foam in Foam Trap 03PT60 CO2 Pressure Below 0.15 03AT60 Too High O2 01PP30 Compressor Fault 06LT62 CO2 Tank is full for more than 10 min 05TE40 Temperature too High 01TS10 Termistor On Motor 05TE41 Temperature too High...
-
Page 50: Special Situations
Power outage In case of a power cut, the system will stop, and the control will turn off. The input of CO2 will be closed and the PRV will open if the pressure reaches 0.40 bar. The connection to the storage tank will also be closed. - Page 51 1. If the Pressure indicator on stage 3 condensate separator exceeds the reading on condenser pressure indicator on top of the unit there is a blockage in the system (checklist). Check the dehydrator valves and pipes for ice or condensate CO2-Recovery Plant EN/2020...
- Page 52 There are one or several filters before any valve in the CO2 plant but in rare incidents a valve could be blocked by a foreign body. It is easy to dissemble the valve for a quick...
- Page 53 Be careful not to lose the spring and plunger and ALWAYS depressurize the system before disassembling valves. CO2-Recovery Plant EN/2020...
-
Page 54: Risk Assessment Operating Dalum Co Systems
Gaseous CO2 is heavier than atmospheric air and will collect at floor level and low-lying spaces. Liquid CO2 and dry ice Liquid CO2 and dry ice are extremely cold and can freeze tissue on contact. If swallowed liquid CO2 and dry ice cause serious injury or death. Precautions: Monitor and ventilate for CO2 where CO2 can accumulate. -
Page 55: Pressure Hazard
The CO2 Unit has an automatic depressurize function, please see the manual. If the CO2 storage tank has a shut of valve on the liquid CO2 filling line its mandatory to close this valve when maintaining or working on the DALUM CO2 Unit. -
Page 56: 9.4 Regulatory Compliance
The CO2 system including pipes and tanks is designed to cope with extreme heat due to safety valves, but it may cause permanent damage to the system. In case of fire heating up the CO2 system, leave the area and only let trained fire fighters deal with the fire. - Page 57 This analysis will help determine whether the system is financially viable and a sound investment. CO2-Recovery Plant EN/2020...
-
Page 58: 10. Ending Notes
The Unit should only be operated, maintained, repaired, and supervised by trained personnel. If you have any problems with the DALUM CO2 Recovery Unit, do not hesitate to contact Dalum Beverage Equipment – we will do our utmost to help! Please do not distribute any of the material receive to 3 parties unless consulted with Dalum Beverage Equipment.
