Summary of Contents for DRESKAR FT001

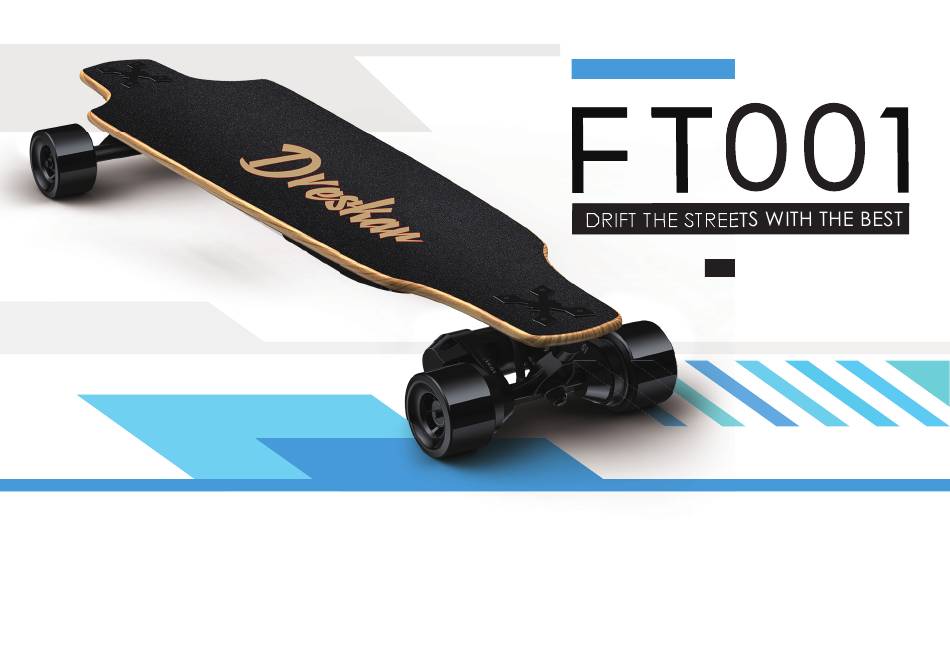

Page 1 DRESKAR DRESKAR Electric Skateboard Electric Skateboard USER MANUAL Your satisfaction is our greatest motivation! Please let us know if you haveany question or would like any further information:ESTFT2021@outlook.com...
Page 2 Do note that electric skateboard is not a toy. Please take time to learn it and read this manual carefully. Particularly the safety instruction pages. We hope you will enjoy this product and have lots of fun with it in the future. Happy Riding! DresKar Team.
Page 3 Electric Skateboard Features Top Speed 25MPH 20% uphill capability 900x2W Dual motors Belt transmission system 7.5AH High 17 Miles Range performance battery Durableand beautiful Maximum load-bearing up to 330lb...
Page 4: General Information
GENERAL INFORMATION This User Manual will guide you through the functions and usage of your DresKar Electric Skateboard. Before operating this vehicle read all the instructions for safe assembly, charging, and operation. Please inspect the DresKar unit upon unpacking for any signs of physical damage or defects.
Page 5: Safety Warning
SAFETY WARNING RISK OF DEATH SERIOUS INJURY Whenever you ride an electric skateboard, you risk death or serious injury from the loss of control, collision, and falls. To ride safely, you must read and follow the instructions and warnings in the manual. Always wear a helmet when riding.
Page 6 E-Skateboard Parts Diagram Motor Tail Power wheel Belt Battery Housing Power button Charging port Waterproof sand paper Controller Housing Board Deck Front Truck Front wheel Kingpin Nose...
Page 7 E-Skateboard Speciﬁcations 5 Layers Maple + Material Skateboard size 1000*255*145MM 2 Layers bamboo Deck Package Size 1000*240MM Carton size 1055*325*200MM Material N.W. 8.25KG Wheel Weight Size 90*52MM G.W. 10.4KG Type 18650 Low speed 10KM/H Battery Charging voltage Speed Medium speed 25KM/H Capacity 7500mAh High speed...
Page 8: Remote Control Diagram
Remote Control Diagram Speed Accelerate Control Throttle Brake Power button Reverse button Speed Signal indicator High mode toggle Middle 100% of the battery left 50% of the battery left 10% of the battery left The battery indicator of remote Pair button Charging port Remote control indicator: Red light, no electricity, please charge...
Page 9 Usage and Instructions The first step,the BOARD and REMOTE must be paired.Before riding,to ensure the BOARD and REMOTE are turn off. Remote Connection The pairing status icon will remain steady while connected.
Page 10 Connecting 1. Turn on the board. 2. Press the board power button for 5seconds.lt will flash. 3. Turn on the remote, then press the pair button. the signal indicator will flash and the power button light will flash with the same frequency. Then means the paired successfully. 4.
Page 11 Push the throttle forward to accelerate. Push the Throttle down to brake or Move the throttle wheel in small increments. Decelerate. Keep a wide stance on the board. Move the throttle wheel in small increments. Keep a low center of gravity. Keep a wide stance on the board.
Page 12: Cruise Control
Shutdown When stop riding by brake operate. Get down front foot at first, then get down your back foot. Cruise Control Confirm the front direction of the skate- board. The feet stand on the widest front and back Skateboard. Push and hold the Throttle to activate the Cruise Control.
Page 13 TURN ON LED LIGHT The light strips on both sides of the bottom of the Electric skateboard can change with the driving forward and backward during the driving process, which will make driving more cool and attract people's attention at night. Turn on led light: Long press the Reverse button for 3-5seconds to turn on the light, the same for turning off the light.
Page 14 CHARGE THE REMOTE / BOARD 3hrs 1. Plug the charger into the mains socket (Charger Power: 110V-240V, 12V 4.5A). The light on the charger lights up green. 2. Plug the other end of the charger into the device. The 30mins indicator on the charger will turn red. When the indicator turns from red to green, the charging is Remote charge time 30 minutes.
Page 15 How to adjust Drive Belt tightness? 1. Loosen the belt cover screws 2. Loosen the motor screws 3. Tighten the screw of the pull and remove the motor cover. until the motor can move block, tighten the belt tightly, loosen the screw loose 4. After adjusting the belt tightness, 5.
Page 16: Safe Riding Techniques
Safe Riding Techniques When operating, accelerating, decelerating, or braking, please keep your weight in line with the skate- board direction in which you are going and in accordance with the functions you are performing in order to increase your stability and avoid possible product damage. ●...
Page 17 Battery Safety Usage Warnings When Using the Battery (1) Misusing the battery may cause the battery to get hot, rupture, or ignite and cause serious injury. Be sure to follow the safety rules listed below: ● Do not place the battery in ﬁre or direct contact with heat. ●...
Page 18: Routine Maintenance
ROUTINE MAINTENANCE ● Regularly inspecting your board for damage and checking that it is run ning properly. ● Before riding make sure all screws are tight. ● Do not clean the board with harsh abrasives or chemicals; using a semi-damp cloth to wipe off dust and dirt from belts, bearings and wheels.
Page 19 How often should you replace drive belts? Generally, whether to replace the belt depends on the frequency of your use and the degree of wear and tear of the belt. It is suggested that you should check the belt once a week. If the belt wears severely, the belt needs to be replaced. Generally, the drive belt needs to be replaced after 6 months of use.
Page 20: Limited Warranty
WARRANTY LIMITED WARRANTY: ●We offer 12 months warranty on all parts of the electric skateboard from the date when you receive the board except for the battery. ● We offer 6 months warranty on the battery. ● This warranty excludes damage resulting from abuse, accident, modifications, unau- thorized repairs, neglect, abuse, water damage, or other causes that are not defects in materials and workmanship.
Page 21 PROTECT ● ALWAYS WEAR A HELMET ● Find an open, flat area with clean pavement for your first ride. ● Read the warning on the skateboard and at the beginning of this manual. ● OTHER PROTECTIVE EQUIPMENT IS HIGHLY RECOMMENDED. AVOID THESE THINGS THAT CAN CAUSE SLIPPING: AVOID AVOID...
Page 22: Packaging List
Packaging List Electric Skateboard Remote User Manual USB Cable Charge T tool Plug...
Page 23 Happy? Not Happy? If you are satisfied with our product, Our friendly customer service team will work please share your joy to inspire more hard to put a smile back to your face. electric skateboard fans. Please contact us by email before return: ESTFT2021@outlook.com Tell your friends Share your feeling by...
Page 24 DRESKAR...
