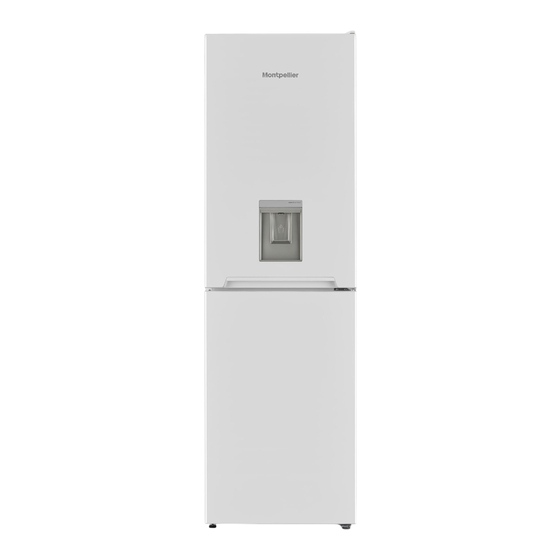

177cm Tall Low Frost Fridge Freezer
MLF1770EWWD/KWD -
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
White/Black with Water Dispenser
Advertisement
Table of Contents
Related Manuals for montpellier MLF1770EWWD
Summary of Contents for montpellier MLF1770EWWD
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 177cm Tall Low Frost Fridge Freezer MLF1770EWWD/KWD - White/Black with Water Dispenser Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................8 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............10 2.1 Dimensions ........................12 3 USING THE APPLIANCE ................13 3.1 Information on Less Frost Technology ................13 3.2 Thermostat Setting .......................13 3.3 Temperature Settings Warnings ...................13... -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Make sure that the appliance is left to stand for a minimum of 4 hours before being turned on for the first time. WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. - Page 5 If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 8: Installation Warnings
1.2 Installation warnings • Do not cover the body or top of fridge freezer with lace. This will affect the Before using your fridge freezer for the performance of your fridge freezer. first time, please pay attention to the • Clearance of at least 150 mm is required following points: at the top of your appliance. -
Page 9: During Usage
• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning. Old and Out-of-order Fridges • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. -
Page 10: Description Of The Appliance
2 DESCRIPTION OF THE Notes: APPLIANCE • Please read the instruction manual This appliance is not intended to be used carefully before installing and using your as a built-in appliance. appliance. We are not responsible for the damage occurred due to misuse. •... - Page 11 Parts of the Water Dispenser (A) Front reservoir group (B) Water tank group 1) Water reservoir upper cover 2) Glass lid 3) Water drip reservoir 4) Water tank upper cover 5) Water tank cover 6) Lateral locking lids 7) Water tank 8) Tank gasket 9) Tap detail EN - 11...
-
Page 12: Dimensions
2.1 Dimensions Overall dimensions 1770,0 540,0 595,0 the height, width and depth of the appliance without the handle. Overall space required in use 650,2 Space required in use 1137,9 1920,0 the height, width and depth of the 640,0 appliance including the handle, plus the space necessary for free 692,8 circulation of the cooling air, plus... -
Page 13: Using The Appliance
3 USING THE APPLIANCE appliance work will automatically return to the operation in the thermostat-3 position according to the time indicated in 3.1 Information on Less Frost the note. Technology The super mode will be cancel Thanks to the wrap around evaporator, automatically after max 48 hours. -
Page 14: Accessories
Climate class and meaning: 3.5 The Water Dispenser T (tropical): This refrigerating appliance is intended to be used at ambient 3.5.1 Mounting the Water Tank temperatures ranging from 16 °C to 43 °C. ST (subtropical): This refrigerating 1. Place the water tank in the plastic holder appliance is intended to be used at on the door, pitched in the direction of ambient temperatures ranging from 16 °C... -
Page 15: Filling The Water Tank
3.5.3 Cleaning the Water Tank 4. Release the side locking covers to detach the water tank cover. • Lift the water tank. • Remove the tank cover by releasing the side locking covers. • Clean the tank with warm water and reassemble the pieces that you have removed. -
Page 16: Food Storage
4 FOOD STORAGE • Consume packaged foods before the recommended expiry date. Do not allow food to come into contact with 4.1 Refrigerator Compartment the temperature sensor, which is located in the refrigerator compartment, in order • To reduce humidity and avoid the to keep the refrigerator compartment at consequent formation of frost, always optimum temperature. -
Page 17: Freezer Compartment
• Do not purchase frozen food if the Maximum How and where to Food storage time store packaging shows signs of humidity and abnormal swelling. It is probable Bottled Until the products expiry date that it has been stored at an unsuitable On the designated e.g. - Page 18 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Maximum storage time Meat and fish Preparation (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast...
-
Page 19: Cleaning And Maintenance
Maximum storage time Vegetables and Fruits Preparation (months) Strawberry and Wash and hull 8 - 12 Blackberry Cooked fruits Add 10 % of sugar to the container Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time Thawing time at room Thawing time in oven (months) -
Page 20: Defrosting
5.1 Defrosting • Thin frost formation is quite soft and can be removed with a brush or plastic Defrosting the Refrigerator scraper. Compartment • Do not use metal or sharp scrapers, mechanical devices or other means to accelerate the defrosting process. •... -
Page 21: Shipment And Repositioning
• After defrosting is complete, clean the • Remove all movable parts or fix them inside of the appliance with a solution of into the appliance against shocks using warm water and a little bicarbonate of bands when re-positioning or soda, then dry thoroughly. - Page 22 If dripping occurs; Your appliance is operating noisily Check that; Normal noises • The tap is well assembled. Cracking noise occurs: • The tap gaskets are well assembled. • During automatic defrosting There is a build-up of humidity inside the •...
-
Page 23: Tips For Saving Energy
• Drinks or other liquids should be covered The door does not open or close when inside the appliance. If left properly uncovered, the humidity inside the Check if: appliance will increase, therefore the • There is food or packaging preventing the appliance uses more energy. -
Page 24: Technical Data
7 or 10 years, based on the type of Montpellier web site and all relevant and component, from the placing on the market downloadable information that is required can be found there. - Page 25 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 26 EN - 26...
- Page 27 EN - 27...
- Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
