AED Multi Sub User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Multi Sub
User manual
This manual is subject to change without further notice. No rights can be derived from this manual. No part
of this manual may be reproduced, in any form or by any means, without prior written consent from AED
Distribution NV, Belgium. AED Audio is a registered trademark of AED Distribution NV.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multi Sub and is the answer not in the manual?

Questions and answers

Related Manuals for AED Multi Sub

Summary of Contents for AED Multi Sub

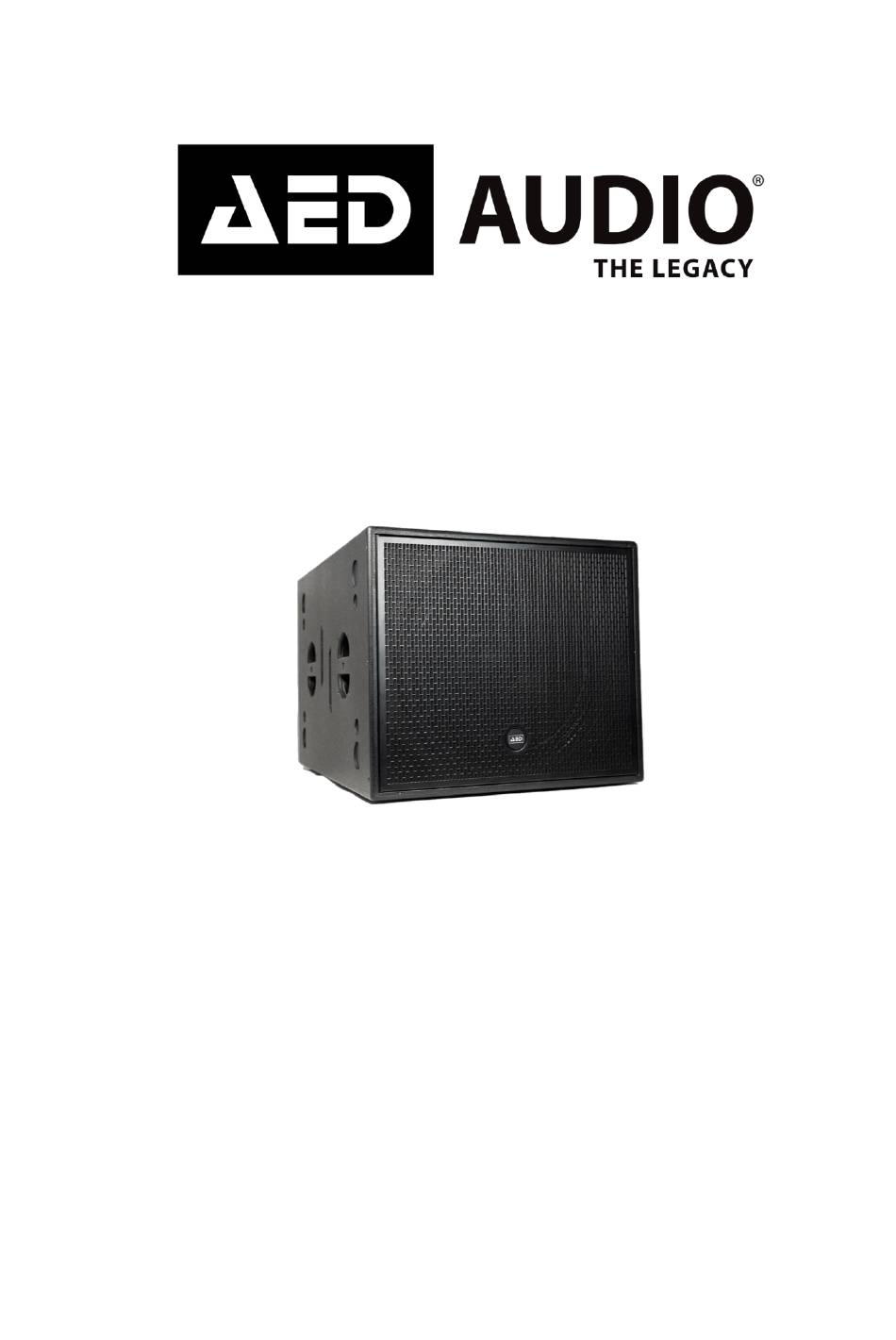

  • Page 1 This manual is subject to change without further notice. No rights can be derived from this manual. No part of this manual may be reproduced, in any form or by any means, without prior written consent from AED Distribution NV, Belgium. AED Audio is a registered trademark of AED Distribution NV.

  • Page 2: Table Of Contents

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Table of contents The AED Audio Flex6 Manual ....................... 4 Introduction ..........................4 Disclaimers ..........................4 Intended use ..........................4 Symbol description ........................5 Symbols used ......................... 5 Abbreviations used ........................5 Revision history ........................
  • Page 3 Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Notes ............................16...

  • Page 4: The Aed Audio Flex6 Manual

    Product, or personal injury caused by non-observance by the user of the safety instructions in the Manual or the applicable laws. As such AED Audio shall among others not be liable for any damage or injury if the Product is used contrary to or for...

  • Page 5: Symbol Description

    Symbol description Symbols used ► Information and tips to ease things for you as you use your AED Audio MultiSub. References to the online AED Audio website, where you can find interesting further information: https://www.AEDAudio.com Prompt to take action. This symbol means that you are being prompted to perform some action.

  • Page 6: Contact Details Manufacturer

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Contact details Manufacturer AED Distribution Bedrijvenpark De Veert 12, 2830 Willebroek – Belgium Tel.: +32 3 860 76 66 Mail: info@aedaudio.com http://www.aedaudio.com Manufacturer’s declarations EU declaration of conformity Licenses and credits...

  • Page 7: General Safety Information And General Safety Instructions

    Don’t put or install the device on a surface that subject to vibration or bumps. Modification Under no circumstances any modification of the Product may be done by any person other than AED Audio.

  • Page 8: Other Safety Notes

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Other safety notes Errors caused by not following these instructions are not covered by the warranty. The manufacturer will not accept liability for any resulting defects or problems. • Keep the unit away from radiators or other heat sources! •...

  • Page 9: Technical Specifications

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Technical specifications Technical data Type MultiSub Configuration Powered subwoofer Single 18” ferrite driver LF transducer 35 – 120Hz Frequency response -6 dB 30 – 140Hz Frequency response -10dB Maximum rated SPL 131dB Class D | 500W RMS –...

  • Page 10: Dimensions Drawing

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Dimensions drawing...

  • Page 11: Connectivity

    Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Connectivity Panel identifiers Master volume Scan QR Code for more information Line input Signal indicator Line output Clip indicator Standby mode Mode selector (concert/ club/ Vocal) PowerCon True In PowerCon True Out/ Link Power switch...

  • Page 12: Transportation, Handling And Commissioning

    Please contact your local distributor for service. If units are damaged and still used, AED Audio cannot be held liable for any risk/danger or occurrence given by these damaged units.

  • Page 13: Accessories

     Fits multiple SOLID15's (optionally stacked with FLEX6's)  Fits 1x SOLID28 (optionally stacked with SOLID15's and/or FLEX6's)  Fits multiple MULTI SUB's (optionally stacked with MULTI12's)  Keep cabling connected during transport  Movable wooden cable tray and blue...

  • Page 14: Safety Regulations

    WARNING! To reduce the risk of fire or electric shock, do not expose this device to rain or moisture  if speakers are exposed to rain or moisture, use fitted rain protection found in the AED catalogue.  WARNING! This device shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the device..

  • Page 15: Repair

    AED Audio authorized distributor. Repairs by parties other than AED Audio or a AED Audio authorized distributor may not involve the use of AED Audio genuine parts and may affect the safety and functionality of the Product. For repair options or specific inquiries, please contact the AED Audio Service Department.
  • Page 16 Version: V1.1.0 Installation and User Date: 13/12/2023 instructions Notes All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microfilm or otherwise without the prior written consent of the manufacturer. This restriction also applies to the corresponding drawings.
