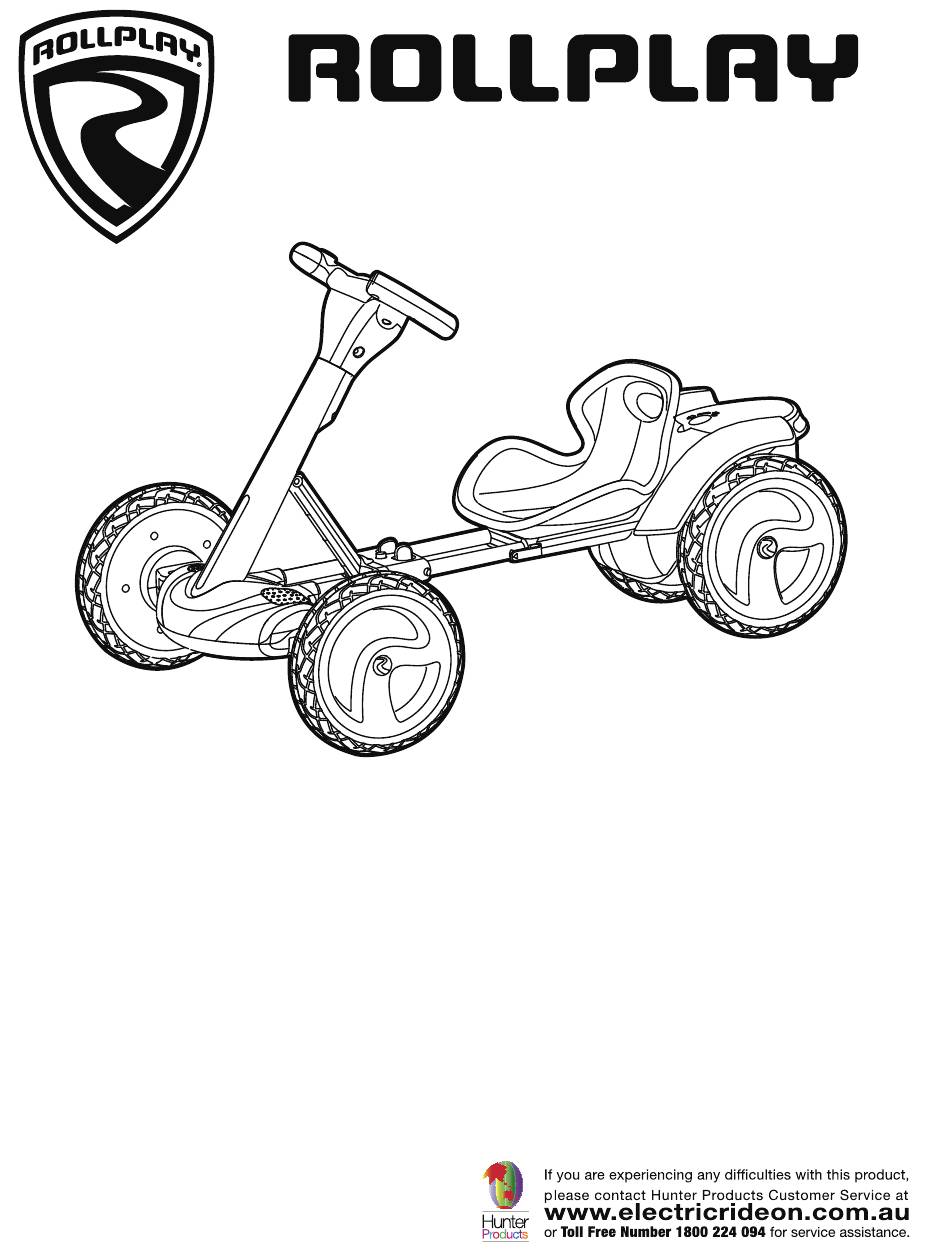

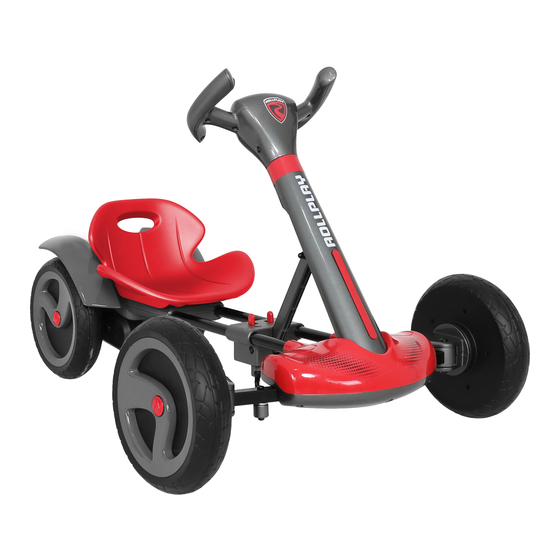

FLEX KART
Owner's Manual and Assembly Instructions
Model #: W405B, HUN0685, 43192847
Read and study the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understood the instructions.
Made in China.
Styles and colors may vary. Prior to returning to the store, please contact Rollplay's Customer
Service with questions. Visit us online at www.rollplay.com for assistance and replacement
parts.
IMPORTANT:
Save this manual with your sales receipt.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rollplay FLEX KART
Summary of Contents for Rollplay FLEX KART
- Page 1 Made in China. Styles and colors may vary. Prior to returning to the store, please contact Rollplay's Customer Service with questions. Visit us online at www.rollplay.com for assistance and replacement parts.
- Page 2 Introduction Thank you for purchasing this vehicle. We hope the rider enjoys it for years to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase. Please contact Hunter Products Customer Service with any questions.
- Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 12 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. Email or call Customer Service if you need assistance or replacement parts.
- Page 4 WARNING: SAFE RIDING RULES After assembling any wheel to the axles, please check the gap between the screw thread and the collapsible, if the gap is too big, please add two or three washers inside the wheel, but after tightening the nut outside the wheel, please turn the wheel by your finger to check if the wheel can run smoothly, this is very important, because if the wheel can run smoothly, it is ok, but if the nut press the wheel and the wheel can not run smoothly, it maybe produce heavy noise or some parts break easily.
-
Page 5: Table Of Contents
Table of Contents Safety ............6 Parts ............8 Charging Instructions ........9 Unfolding the Frame ........ 10 Installing the Steering Wheel ..... 11 Attaching the Seat ........12 Operating Instructions ......13 Folding Instruction ........14 Maintenance ..........15 General Care .......... -
Page 6: Safety
Safety WARNING: SAFE RIDING RULES • Instruction sheet and packaging must be retained since it contains important information. • The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. User must be at least 24 months old and weigh no more than 25kg (55 lbs.). - Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, immediately give the person water or milk.
-
Page 8: Parts
Parts Not Included: Phillips head screwdriver... -
Page 9: Charging Instructions
HOURS BEFORE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the FLEX Kart is stopped and turned off. 2. Locate the cover in the rear of the car. Using a coin or screwdriver turn the cover lock to the unlocked position and remove the cover. -
Page 10: Unfolding The Frame
Unfolding the Frame Click After taking the vehicle out of the package, 1) Release the Frame Lock by pulling it outward from the vehicle (Fig A). 2) While holding the Frame Lock in the released position, pull upwards on the Steering Bar towards the front of the vehicle until it clicks into place (Fig B). -
Page 11: Installing The Steering Wheel
Installing the Steering Wheel 1). Remove the screw (M5*47) from the Steering Wheel. 2). Plug the steering wheel wire into the steering bar wire. (Fig A) 3). Place the steering wheel onto the top of the steering bar, match the screw holes of the steering wheel and the steering bar. -
Page 12: Attaching The Seat
Attaching the Seat 1). Remove screws (M6*38) from the the seat's polybag. 2). Align the two holes on the Seat over the holes on the vehicle body to the desired position. Insert the screws through the holes on the seat and the frame, tighten with a Phillips head screwdriver. -
Page 13: Operating Instructions
Operating Instructions Start Button Power switch Turn on the power switch, Press the Start Button at the right of the Steering Wheel handle (Do not release) to control the left and right steering or forward riding through the steering wheel. -
Page 14: Folding Instruction
Folding Instructions 1) Press & hold the Lock Button & pinch the two Spring Tabs together simultaneously (Fig C). Fold the Steering Bar down (Fig D) and slide the Frame Bracket towards the seat (Fig E). 2) Ensure the Frame Lock securely locks the vehicle in the folded position. -
Page 15: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Charge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours. -
Page 16: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 20 for more information. -
Page 17: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Loose wires or loose Ensure the battery connectors connectors are securely attached. - Page 18 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service. “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 19: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 20: Service And Repairs
Service and Repairs If your product requires service, repairs or replacement parts, please visit us online at www.electricrideon.com.au Or contact us at: Toll Free Service Phone: 1800 224 094 emall: www.enquiries@hunterproducts.com.au Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday www.electricrideon.com.au... -
Page 21: Warranty
Warranty One-Year Limited Warranty Hunter Products 6v vehicle warrants that your will be free from defects in materials and workmanship for the vehicle (except for the 6-volt battery) for a period of 12 months, from the date of purchase. This warranty only applies where the product is completely and correctly assembled and used in accordance with all accompanying recommendations and users instructions.
