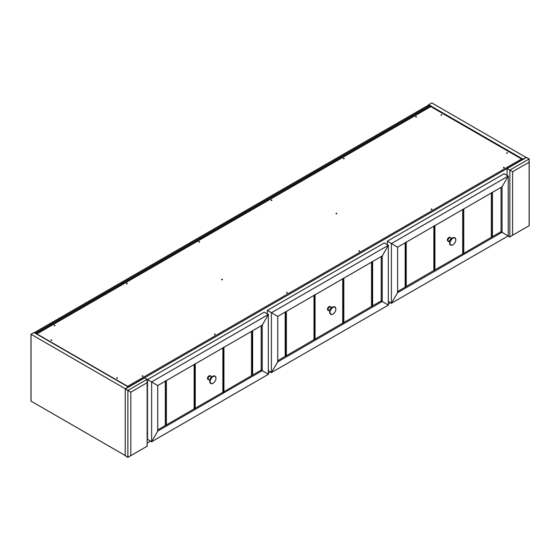

- Page 1 ASSEMBLY INSTRUCTIONS LUCA 3 DRAWER PANEL/BUNK/DAYBED UNDERBED STORAGE SKU: 314670 ITEM NO: Y2103W-347 314582 Y2103B-347 314626 Y2103G-347 5 min...
- Page 2 Revert the knob as instruction That's it ! You've finished assembling your item. Thank you!
- Page 3 ASSEMBLY INSTRUCTIONS LUCA TWIN-TWIN BUNK BED SKU: 314663/314664/314665 ITEM NO: Y2103W-340/341/342 314575/314576/314577 Y2103B-340/341/342 314619/314620/314621 Y2103G-340/341/342 30 min...
- Page 4 Ensure thickness of mattress does not exceed 6" and mattress is at least 5" below upper edge of guardrails. Ensure thickness of mattress doest not exceed 6" for lower bunk. REPLACEMENT PARTS Replacement parts, including additional guardrails, may be requested from Living Spaces, usually at a cost.
- Page 5 Always use the ladder or Stairway Chest for entering and leaving the upper bunk. You will buy ladder/Stairway as options.
-
Page 6: Description Qty
BOX 1-TW /TW + TW /FL UPPER ENDS/SLATS BUNK BED DESCRIPTION QTY PART IMAGE SKU# 1987TT-A-W: (White) Upper Ends 1987TT-A-B: (Blue) 1987TT-A-G: (Grey) Slats 1987TT-J BOX 2: TW /TW LOWER ENDS/SLATS BUNK BED IMAGE DESCRIPTION QTY SKU# PART 1987TT-B-W:(White) Lower Ends 1987TT-B-B:(Blue) 1987TT-B-G:(Grey) Slats... - Page 7 BOX 3- TW /TW SIDE/GUARD RAILS BUNK BED IMAGE SKU# DESCRIPTION QTY PART 1987TT-C-W: (White) 1987TT-C-B: (Blue) Upper Rails 1987TT-C-G: (Grey) 1987TT-D-W: (White) 1987TT-D-B: (Blue) Guard rails 1987TT-D-G: (Grey) 1987TT-E-W: (White) Guard rail 1987TT-E-B: (Blue) supports 1987TT-E-G: (Grey) 1987TT-F-W: (White) 1987TT-F-B: (Blue) Lower rails 1987TT-F-G: (Grey)
- Page 8 Hardware List of Twin-Twin Bunk Bed IMAGE DESCRIPTION Part SKU# Bolt and nut M8*90mm 1987TT-1(16) 1987TT-2(6) Bolts M8*35mm Screws Ø6.5*83mm 1987TT-3(8) 1987TT-4(16) Dowel Ø8*40mm 1987TT-5(28) Screws 8#*30mm 1987TT-6(4) Metal dowel Ø10*100mm 1987TT-7(1) Allen key 60*22*4mm Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY.
- Page 9 STEP 1: Assembly Rail (C): Please locate two rails (C) to Ends (A) by Dowel (4) firstly, and then fasten gradually by Bolt+nut (1) BUT NO TIGHTEN. Assembly Guard Rail (D): Please locate Guard rails (D) to Ends (A) by Dowel (4) firstly, and then fasten gradually by Bolt (3).
- Page 10 STEP 3: Please fasten slats (J ) by screw (5) into corresponding holes. 5=14Pcs STEP 4: Insert dowel (4) to Ends (B) firstly, then the Rails (F) are fastened by Bolt+nut (1). Pay attention to rail orientation. 4=4Pcs 1=8Pcs...
- Page 11 STEP 5: Please fasten slats (J ) by screw (5) into corresponding holes. 5=14Pcs STEP 6: Assemble the upper bunk to lower bunk by Metal dowel (6). 6=4Pcs...
- Page 12 Combining with Ladder ( Option 1) Attaching the ladder to Guard rail by Screw (this hardware is placed in ladder box)
- Page 13 Combining with Stairway Chest (option 2) Please attach the Stairway Chest to Bunk bed by metal bracket and screw (are placed in Stairway box). Please place Stairway Chest is next to Bunkbed Side and wall.
- Page 14 Option 1: Option 2: That's it ! You've finished assembling your item. Thank you!
- Page 15 ASSEMBLY INSTRUCTIONS LUCA STAIRWAY CHEST ITEM NO: Y2103W-349 SKU: 314672 Y2103B-349 314584 Y2103G-349 314628 10 min...
-
Page 16: Cleaning Instructions
Hardware List of Luca Stairway Chest IMAGE DESCRIPTION Part SKU# 70*20*2mm Connector 1997LD-1(3) 1997LD-2(6) Screws 8#*25mm Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY. WITH USE SCREW MAY ENCOME LOOSE CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS. - Page 17 Option 1: Your Bunk bed is Twin/Twin Please attach the Stairway Chest to Bunkbed by metal bracket (1) and screw (2). Please place Stairway Chest is next to Bunkbed Side and wall. That's it ! You've finished assembling your item. Thank you!
- Page 18 Option 2: Your Bunk bed is Full/Full Please attach the Stairway Chest to Bunkbed by metal bracket (1) and screw (2). Please place Stairway Chest is next to Bunkbed Side and wall. That's it ! You've finished assembling your item. Thank you!
- Page 19 Option 3: Your Bunk bed is Twin/Full Please attach the Stairway Chest to Bunkbed by metal bracket (1) and screw (2). Please place Stairway Chest is next to Bunkbed Side and wall. That's it ! You've finished assembling your item. Thank you!
