Summary of Contents for crest performance CPX 3800

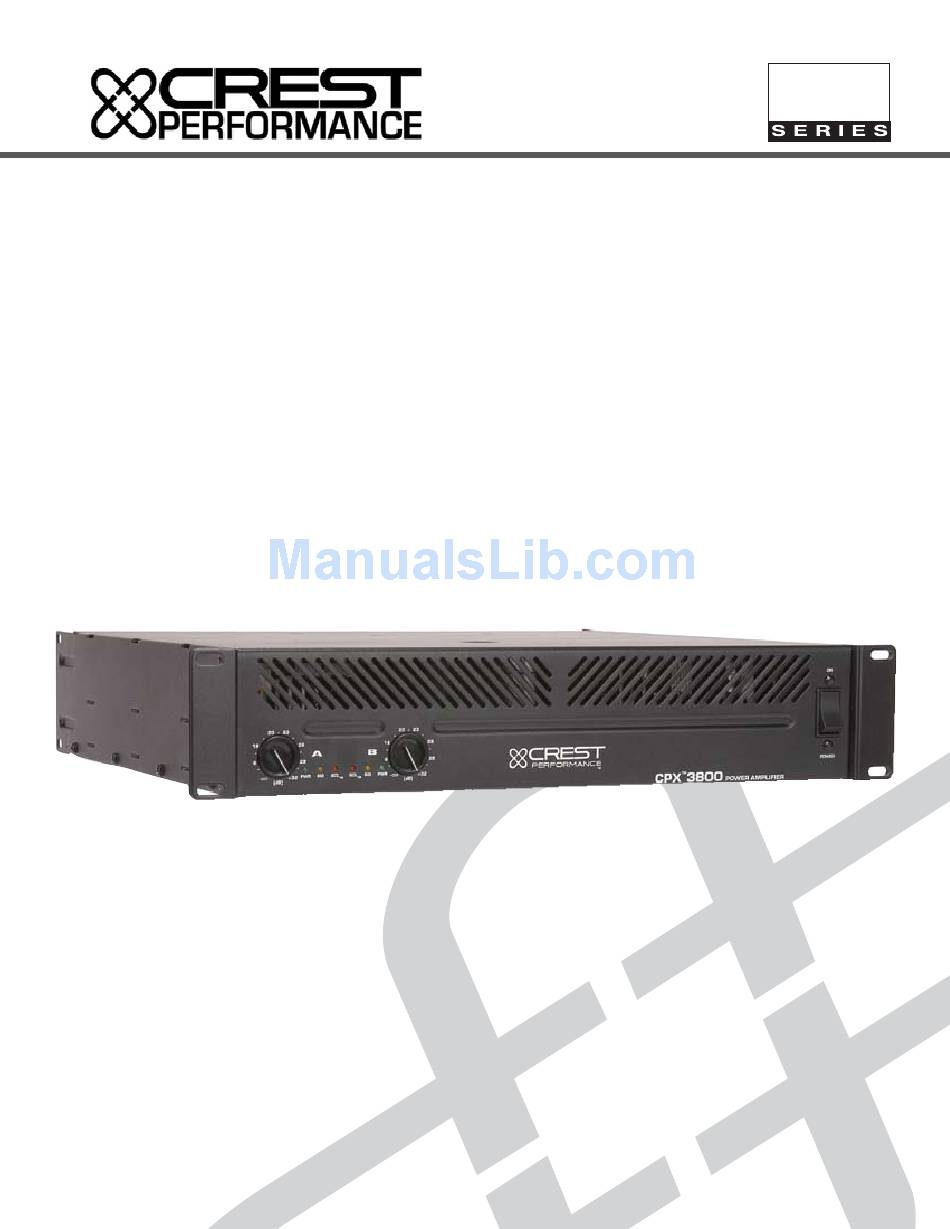

- Page 1 ® 3800 Power Amplifier Owner’s Manual...
- Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the lit- erature accompanying the product.
-
Page 3: Important Safety Instructions
WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. -
Page 4: Wichtige Sicherheitshinweise
ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden: Lesen Sie sich diese Anweisungen durch. Bewahren Sie diese Anweisungen auf. Beachten Sie alle Warnungen. Befolgen Sie alle Anweisungen. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. Reinigen Sie es nur mit einem trockenen Tuch. - Page 5 INSTRUCTIONS IMPORTANTES DE SECURITE ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: Lire ces instructions. Gardez ce manuel pour de futures références. Prétez attention aux messages de précautions de ce manuel. Suivez ces instructions. N’utilisez pas cette unité proche de plans d’eau. N’utilisez qu’un tissu sec pour le nettoyage de votre unité.
- Page 6 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: Lea estas instrucciones. Guarde estas instrucciones. Haga caso de todos los consejos. Siga todas las instrucciones. No usar este aparato cerca del agua. Limpiar solamente con una tela seca.
-
Page 7: Important Precautions
Save the carton and packing materi- als! Should you ever need to ship the unit, use only the original factory pack- ing. For replacement packaging, call Crest Performance’s Customer Service Department directly. Read all documentation before operating your equipment. Retain all documentation for future reference. - Page 8 table of contents how to use this manual introduction installation unpacking mounting connecting power cooling requirements operating precautions connecting inputs connecting outputs features overview front panel rear panel operation modes stereo parallel bridged mono protection features GCL™ Gain Comparator Limiting impedance sensing ™...
-
Page 9: How To Use This Manual
conventions terms official Crest Performance features and each indicator or control on the amplifier will appear as: terms actions specific actions or selections the user can execute will appear as: actions tasks are broken down into steps warnings Procedures not to attempt. Issues or hazards to keep in mind when operating the equipment. - Page 10 Congratulations on your purchase of the CPX 3800 Series, a power ampli- fier designed for years of reliable, flawless operation under rigorous use. This amplifier offers the sonic superiority and unsurpassed reliability for which Crest Performance is famous while remaining surprisingly compact.
- Page 11 what to do with the shipping carton proper rack-mounting technique required line voltages keeping the amplifier cooled preventing amplifier damage installation unpacking mounting connecting power cooling requirements operating precautions connecting inputs connecting outputs p. 11...
-
Page 12: Installation
installation unpacking Upon unpacking, inspect the amplifier. If you find any damage, notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials. Should you ever need to ship the unit back to Crest Performance, one of its offices, service centers or the supplier, use only the original factory packing. -
Page 13: Cooling Requirements
The CPX 3800 utilizes one common heat sink and a single fan, but retains the separate circuitry. NOTE: Maintain an adequate air supply at the back of the amplifier and enough space around the front of the amplifier to allow the cooling air to escape. -
Page 14: Connecting Inputs
installation connecting inputs Input connections are made via the three-pin XLR (pin 2+) or 6.3 mm plug “Combi” connectors on the rear panel of the amplifier. The inputs are actively balanced. The input overload point is high enough to accept the maximum output level of virtually any signal source. -
Page 15: Features Overview
location of connectors and controls legend of panel symbols features overview front panel rear panel p. 15... -
Page 16: Ac Power Switch/Circuit Breaker
features overview front panel switches and controls AC Power Switch/Circuit Breaker The CPX Series amplifiers have a combination AC switch/circuit breaker on the front panel. If the switch shuts off during normal use, push it back to the ON position once. If it will not stay on, the amplifier needs servicing. -
Page 17: Power Led
indicators CPX™ Series amplifiers feature three front panel LED indicators per channel: GCL™, SIGNAL and POWER. These LED indicators inform the user of each channel’s operating status and warn of possible abnormal conditions. GCL (Gain Comparator Limting) LED A channel’s GCL LED will light at the onset of clipping. If the LEDs are flashing quickly and intermittently, the channel is just at the clip threshold. -
Page 18: Rear Panel
features overview rear panel IEC Mains Connector This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton. Warning - all apparatus with class 1 construction shall be connected to a mains socket outlet with a protective earthing connection. -
Page 19: Low Cut Switch
Low Cut Switch This switch is used to activate the LOW CUT filter for the corresponding channel. It is a push-type switch that requires a small tool to activate. The IN position routes the input signals through the 40 Hz LOW CUT filter, while the OUT position bypasses the filter. - Page 20 features overview Conn. Mode Select Switch Depressing the rear panel CONN. MODE select switch connects both input connectors together in parallel. This directs the same input signal to both channels and allows one connector to be used with a patch cable to drive another amplifier.
-
Page 22: Operation Modes
operation modes choosing the appropriate mode switching between operation modes special considerations when using bridged mode p. 22 owner’s manual stereo parallel bridged mono... - Page 23 stereo For stereo (dual channel) operation, turn the amplifier off and set the mode select switches on the back panel to the OUT (extended) position. In this mode, both channels operate independently of each other with their input attenuators controlling their respective levels. For example, a signal at chan- nel A’s input produces an amplified signal at channel A’s output, while a signal at channel B’s input produces an amplified signal at channel B’s output.
-
Page 24: Protection Features
protection features owner’s manual GCL™ description of protection features gain comparator limiting ™ impedance sensing AUTORAMP ™ signal control thermal protection short circuit DC voltage protection turn on/off p. 24... -
Page 25: Short Circuit
The CPX Series amplifiers incorporate several circuits to protect both themselves and loud- speakers under virtually any situation. Crest Performance has attempted to make the amplifiers as foolproof as possible by making them immune to short and open circuits, mismatched loads, DC voltage and overheating. -
Page 26: Turn-On/Turn-Off Protection
protection features turn-on/turn-off protection At power-up, the amplifier stays in the protect mode with outputs disconnected for approximately six seconds while the power supplies charge and stabilize. While the output relays are open, the GCL™ LEDs light. When power is removed, the speaker loads immediately disconnect so that no thumps or pops are heard. -
Page 27: Speaker Protection
protecting your speakers the owner’s role in amplifier safety safety speaker protection user responsibility p. 27... -
Page 28: Amplifier Maintenance And User Responsibility
safety speaker protection All loudspeakers have electrical, thermal and physical limits that must be observed to prevent damage or failure. Too much power, low frequencies applied to high frequency drivers, severely clipped waveforms and DC voltage can all be fatal to cone and compression drivers. The Crest Performance CPX Series amplifiers automatically protect speakers from DC voltages and subsonic signals. -
Page 29: Service And Support
when to get support ways to contact Crest Performance service and support support contact us p. 29... -
Page 30: Customer Service
service and support support In the unlikely event that your amplifier develops a problem, it must be returned to an authorized distributor or service center or shipped directly to our factory for service. To obtain service, contact your nearest Crest Performance Service Center, Distributor, Dealer or any of the worldwide Crest Performance offices. -
Page 31: Specifications
All power measurements made at 120 VAC, power transformer cold. 4 ohm power is time limited by magnetic circuit breaker. All power measurements made at 120 VAC, power transformer cold, 2 ohm power is time limited by magnetic circuit breaker CPX 3800 2650 watts @ 1 kHz at <0.1% T.H.D. - Page 32 service and support cable length (in feet) feet feet feet feet standard wire gauge power loss into power loss into power loss into (AWG) 8 Ω load (%) 4 Ω load (%) 1.58 1.00 .125 1.58 3.16 1.00 1.25 8.00 12.60 4.00 8.00...
-
Page 33: Glossary Of Terms
glossary of terms (for setup) Stereo Music with two separate channels, usually a left and right channel. Mono Music with only one channel. Crossover An electronic device that separates high and low frequencies and sends them to different outputs. The sepa- rate signals are usually sent to a high out and a low out. - Page 34 NOTES...
- Page 35 Center. OR (2) Ship the defective item, prepaid, to Crest Audio, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.
- Page 36 http://www.crest-performance.com CPX Owner's Manual 01/18/2006 80303153...
