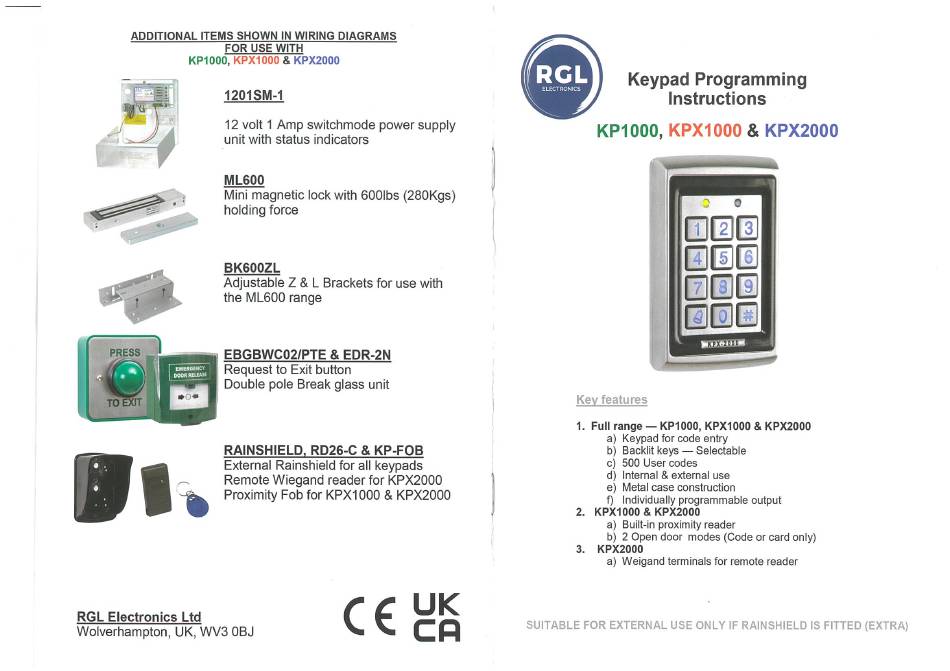

ADDITIONAL ITEMS SHOWN IN WIRING DIAGRAMS
FOR USE WITH
KPI000, KPXI 000 & KPX2000
1201SM-1
12 volt 1 Amp switchmode power supply
unit with status indicators
ML600
Mini magnetic lock with 600lbs (28OKgs)
holding force
BK600ZL
Adjustable Z & L Brackets for use with
the ML600 range
EBGBWCO2IPTE & EDR-2N
Request to Exit button
Double pole Break glass unit
PGL
Keypad Programming
ELECTRONICS
Key features
RAINSHIELD, RD26-C & KP-FOB
External Rainshield for all keypads
Remote Wiegand reader for KPX2000
Proximity Fob for KPX1000 & KPX2000
1. Full range
—
KP1000, KPXI000 & KPX2000
a) Keypad for code entry
b) Backlit keys
—
Selectable
c) 500 Usercodes
d) Internal & external use
e) Metal case construction
f) Individually programmable output
2. KPXI000 & KPX2000
a) Built-in proximity reader
b) 2 Open door modes (code or card only)
3.
KPX2000
a) Weigand terminals for remote reader
RGL Electronics Ltd
Wolverhampton, UK, WV3 OBJ
rcUK
'-S
J
PRESS
a
Instructions
KPI000, KPXI 000 & KPX2000
0
EMERGENCY
DOOR EEtLAIE
ØS
SUITABLE FOR EXTERNAL USE ONLY IF RAINSHIELD IS FITTED (EXTRA)
