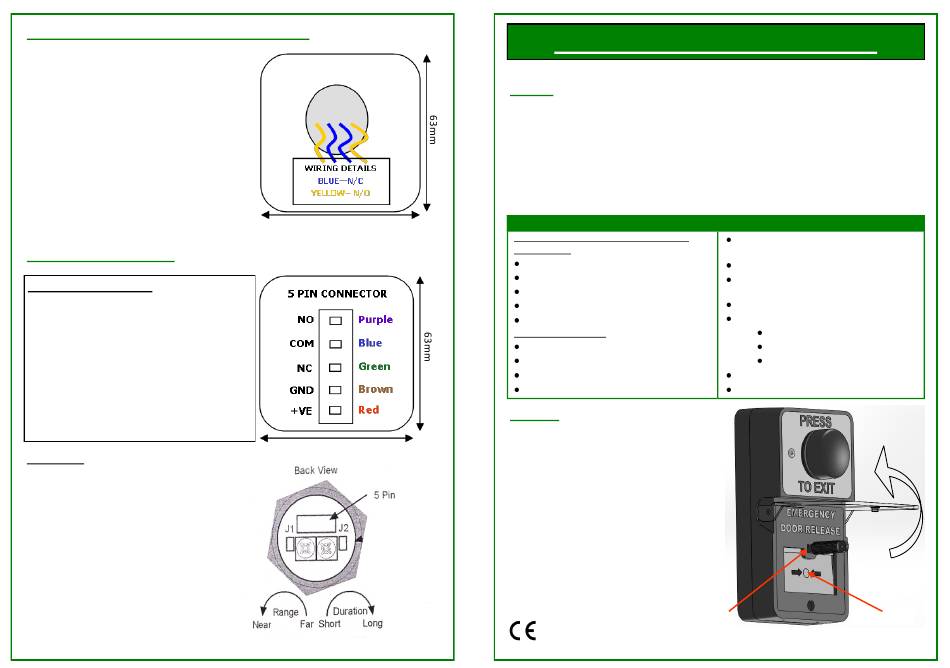

RGL DU-NT/TF Instruction Sheet

Green & Stainless Steel Button Latch Release Configuration
Wires are to be connected at Terminal Board
provided on the PCB (fixed on Front Cover) as
per connection diagram.
Touch Free Button Instructions
TECHNICAL SPECIFCATION
Input Voltage DC: 12V
Quiescent Current: 16mA
Proximity Current: 23mA
Range: 30—120mm
Maximum Output: 1A@30VDC
Lifetime (IR Sensor): 100,000 hrs
Lifetime (Relay): 1x10^7 Operations
Case: Stainless Steel
Weight (sensor only): 375g

OPERATION

Adjust detection range and duration of
operation as desired. Ensure no object is
within 300mm and 60° of the unit to avoid
spurious triggering.
Using J1 and J2 select the colour operation
as follows—
J1 = Standby—Red
Operation Green
J2 = Standby—Green
Operation—Red
81mm
24V
20mA
30mA
81mm
4
DUAL UNIT—INSTRUCTION SHEET
Complies with Risk Assessment – RA001, EN50133 and Industry Codes of Practice

Contents

The Following items are included with the unit:-
1. Combination Head CSK Screw (M3.5x40mm) – 2Nos.
2. Allen Head CSK Screw (M3.5x40mm) – 1No
3. Combination Head CSK Screw (M3.5x32mm) – 2Nos.
4. Allen Head CSK Screw (M3.5x25mm) – 1No
5. Allen Head CSK Screw (M3.5x18mm) – 1No
6. Brass Hex Insert (M3.5) – 1No.
7. Allen Key – 2.5mm (Across – Flat) – 1No.
8. Plastic Reset Key – 2Nos.

TECHNICAL SPECIFICATION

Combination Exit Button & Emergency Release
EXIT BUTTON
High impact plastic back box (robust design)
Double pole contact—N/O-N/C at 30V AC/DC
Designed for greater than 1million operations
Etched Legend
Security Screws (Allen Key Type)
EMERGENCY RELEASE
3 N/O—N/C Contacts
Audible (Selectable)/ LED Warning
Plastic Cover flips up for operation
Size—160Hx90Wx42D all mm
Operation
To activate the emergency feature, lift the clear flap
and press the Push Plate where Indicated.
This will illuminate the LED and a Buzzer will start
sounding.
On activation the Push Plate will move backward,
and the Yellow Indicator Bar retaining the Push Plate
will drop down preventing Un-authorised reset.
To reset the unit after activation, The Reset Key must
be used to make the unit operationally ready again.
Insert the key in the correct orientation and push it
to the limit of the key. This will allow the Yellow
Indicator Bar to return to its original position and
hence the Push Plate will be reset.
Reset Key

FEATURES

Easy clean surface (Ideal for Hospital/Public
areas)
Easy cable entry from sides or rear
Screw footprint for flush fitting onto a Stan-
dard UK Single Gang Box.
Reduced wiring labour time
Buttons available
Green Dome
Stainless Steel
Touch Free
Key Reset (Not Replacement Glass)
Internal Use
Push Here
Figure. 1
