TRAKRACER TR80-LITE Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TR80-LITE

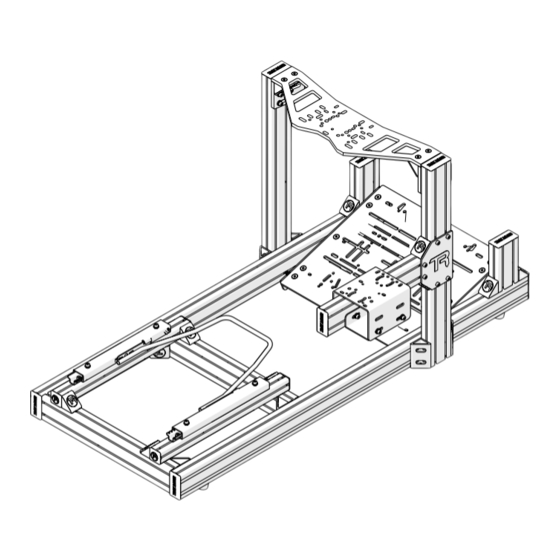

Assembly Guide
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
TR80-LITE
1
Published 2022‑12‑06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR80-LITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRAKRACER TR80-LITE

  • Page 1 TR80-LITE Assembly Guide IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box TR80-LITE...
  • Page 2 TABLE OF CONTENTS Symbol Legend Part list Assembly Notes TR80-LITE Assembly Instructions Seat Slider Option Recliner seat installation GT/Rally seat installation Wheel Mount Option 1 Universal Shifter Mount...
  • Page 3 IMPORTANT: As there are different versions of each rig depending on your region, please ensure that you are using the correct instruction set. The part number below should match the part number labeled on your box IMPORTANT: Due to the nature of cut aluminium profile, some metal shavings may still be present after our extensive QA cleaning process.

  • Page 4: Table Of Contents

    Tool Kit, M8 WF-M8 Washer (Flat), M8 WF-M8 Washer (Flat), M8 WL-M8 Washer (Lock), M8 WL-M8 Washer (Lock), M8 * NOTE: Extra hardware may be included as spare parts INCLUDED TOOLS If you have any issues, please contact us at support@trakracer.com...
  • Page 5 NOTE FRONTSIDE OUTSIDE INSIDE TOP SIDE SHIFTER SIDE BACK SIDE...
  • Page 6 The handle screws (SL-M8-20 & SL-M8-25) are NOTE ratcheted to allow for tightening and loosening when space for rotation is limited. Simply pull the handle out and turn handle into position and push handle back in to engage thread.
  • Page 7 NOTE NS-M8 & NS-M6 It is strongly advised that spring T-Nuts are inserted by sliding from the ends of profiles. Please take careful note of each step of all T-nuts as some are to be installed in anticipation of future steps. If T-Nuts are skipped, and the ends are no longer accessible, they can be...
  • Page 8 NOTE BC-40...
  • Page 9 M6x20mm AT-80-1200 NS-M6 FR-01 SH-M6-20 AT-80-500 NS-M8 Insert 2pcs of NS-M8 into TOP SIDE of each AT-80-500 (for STEP 4)
  • Page 10 M8x20mm SH-M8-20 WL-M8 WF-M8 BC-40 380mm 15" M8x20mm AL-40-500 NS-M8 SH-M8-20 WL-M8 WF-M8 BC-40 344mm 13.5"...

  • Page 11: Ba-80-Blk

    M8x16mm AL-80-660 NS-M8 SH-M8-16 BA-80-BLK M8x20mm AL-80-240 NS-M8 SH-M8-20 WL-M8 WF-M8 BC-40...

  • Page 12: Pp-Np-Lb

    M8x20mm PP-NP-LB NS-M8 SH-M8-20 WL-M8 WF-M8 M8x20mm SF-M8-20 NF-M8 PP-80-TP...
  • Page 13 M8x20mm AL-80-400 NS-M8 SH-M8-20 WL-M8 WF-M8 BC-40 BP-80-H BC-40 EC-40 EC-80 Note: End caps should be installed after all accessories are mounted...
  • Page 14 PS-1350-R...
  • Page 15 Seat Slider Assembly Part # Description Check SS-01 Seat Slider SH-M8-16 Screw (Hex), M8x16 NL-M8 Nut (Locking), M8 WF-M8 Washer (Flat), M8 WL-M8 Washer (Lock), M8 TR80-SLIDER Published 2022‑12‑06...
  • Page 16 M8x16mm SH-M8-16 SS-01 NS-M8 WL-M6...
  • Page 17 Recliner Seat Assembly SA-06/SA-07/SA-08 Published 2022‑12‑06...
  • Page 18 Note: Screws supplied with seat...

  • Page 19: Sh-M8-20

    M8x20mm SH-M8-20 WF-M8 SB-03 Note: Screws supplied with seat & SB-03...
  • Page 20 M8x16mm SH-M8-16 WF-M8 NL-M8 Note: Hardware supplied with Seat Slider Slide the slider all the way back to install screws and nuts. Then slide all the way forward and repeat for front screws and nuts.
  • Page 21 GT/Rally Seat Assembly SA-04/SA-05/SA-09/SA-10 Published 2022‑12‑06...
  • Page 22 M8x16mm SH-M8-16 WL-M8 WF-M8 M8x16mm SH-M8-16 WF-M8 NL-M8 Note: Hardware supplied with Seat Slider Slide the slider all the way back to install screws and nuts. Then slide all the way forward and repeat for front screws and nuts.

  • Page 23: Sh-M6-20

    Universal Wheel Universal Wheel Base Plate Base Plate TR80-WMPLATE TR80-WMPLATE Universal Wheel Base Plate Part # Description Check BOX #: TR80-WMPLATE SH-M8-20 Screw (Hex), M8x20 SF-M8-20 Screw (Flat), M8x20 SH-M6-20 Screw (Hex), M6x20 WF-M8 Washer (Flat), M8 WL-M8 Washer (Lock), M8 NF-M8 Nut (Flange), M8 NS-M8...
  • Page 24 M8x20mm SF-M8-20 NF-M8 BC-40 WM-WMP-DP M8x20mm SF-M8-20 NF-M8 WM-WMP-PP BC-40...
  • Page 25 M8x20mm SH-M8-20 WF-M8 NS-M8 NOTE: Adjust position after wheelbase and seat installation...

  • Page 26: Washer (Lock), M8

    Universal Shifter Mount TR80-SHIFTER4 Part # Description Check BOX #: TR80-SHIFTER4 SH-M8-20 Screw (Hex), M8x20 SH-M6-15 Screw (Hex), M6x15 WF-M8 Washer (Flat), M8 WL-M8 Washer (Lock), M8 NS-M8 T-Nut (Spring), M8 NF-M8 Nut (Flange), M8 SM-01 Shifter Mount SM-02 Shifter Bracket * NOTE: Extra hardware may be included as spare parts TR80-SHIFTER4 Published 2022‑12‑06...
  • Page 27 M8x20mm NS-M8 SH-M8-20 WL-M8 WF-M8 NF-M8 SM-01 SM-02...
  • Page 28 FINISHED Share your build online and tag us to be featured! @trakracer @trakracer @trak_racer...
