Summary of Contents for BPE STE-BSG-5220

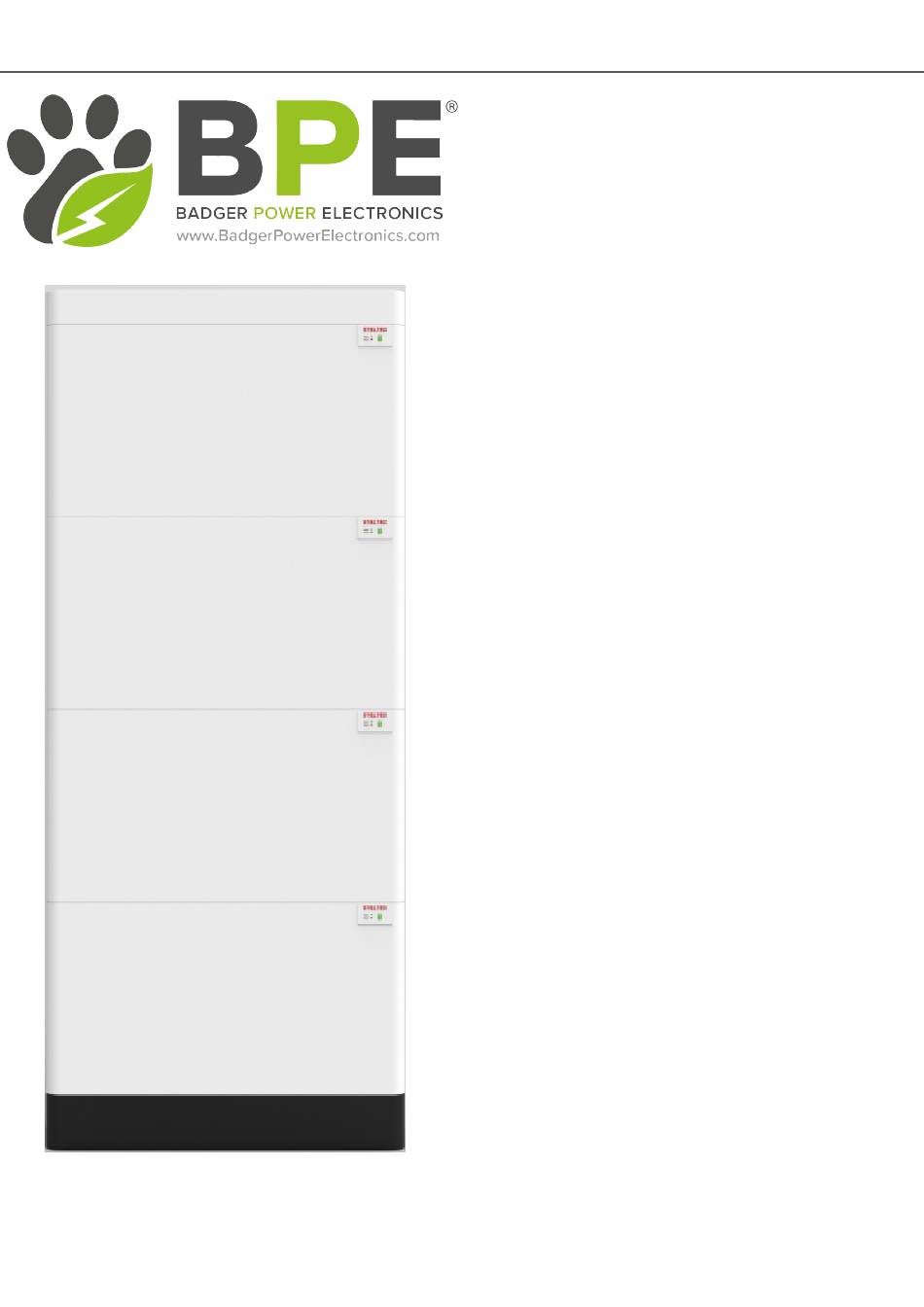

- Page 1 BPE PowerDepot 5.22kWh LiFePO4 Battery User Manual...
-
Page 2: Safety Information
Do not touch the battery terminals Do not short circuit the battery Do not rest any heavy objects on top of the battery only BPE PowerDepot 5.22kWh batteries can be stacked on one another 1.3 Electrical Safety. Battery Symbols Explained There are multiple symbols located on the battery that refer to a variety of safety and operation matters. -
Page 3: Electrical Safety
Do not connect or disconnect power cables when battery is operating. This may cause electric arcing or sparks which may lead to fire or personal injury. Do not connect another manufacturers batteries in parallel with BPE batteries. Do not connect battery to AC directly. -
Page 4: System Information
The PowerDepot 5.22kWh LiFePO4 battery is an indoor stackable battery system that is designed to fit perfectly in any home. With an intelligent integrated BMS, our 5.22kWh battery is compatible with the BPE PowerDepot A1 EES and a wide variety of other inverter manufacturers. The battery is easily stackable, this allows the system to scale between 5.22kWh and 20.88kWh, providing you with the capability to power your entire... - Page 5 ON/OFF 1. ON For a single BPE 5.22kWh battery, press and hold (for 5 seconds) the ON/OFF button. The Normal LED will light up and begin to operate normally. The six green LED bars represent the battery's SOC. For multiple BPE 5.22kWh batteries in parallel, press and hold (for 5 seconds) the ON/OFF button of MASTER battery (The battery connected to the inverter with the communication cable).
-
Page 6: Installation
Do not expose the battery to direct sunlight. Only mount battery on a stable floor surface. Do not stack more than four BPE 5.22kWh on top of one another. 3.2 Installation Step 1 Securely place the battery base near a wall, the distance between the base and the... - Page 7 Step 2 Using the four included dowel pins, insert them into the corners by screwing them into the base with a screw driver. Next, place the battery on top of the base; ensuring the battery securely sits on top of the dowels. Step 3 If you're installing more than one 5.22kWh battery, insert four more dowel pins on top of the bottom battery.
- Page 8 Step 5 Fixed the battery with the wall using a L shaped metal parts and expansion bolts. Step 6 Install the top cover onto the top most battery pack.
- Page 9 Step 7 Ensure the batteries are all connected to the PE terminal by installing the included square brackets between each battery pack. The bottom battery pack will attach to the base plate with an L shaped bracket. Step 8 Connect all power and communication cables between the battery packs. Danger: Do not reverse the polarity on any of the battery power cables.
-
Page 10: Maintenance
4 Maintenance Recharge Requirements During Storage Battery should be stored in an environment with temperature range between -10°C ~+45°C and maintained regularly according to following table with 0.5C (51A) current untill 40% SOC after a long period of storage. Storage Relative Humidity of Storage Time...
