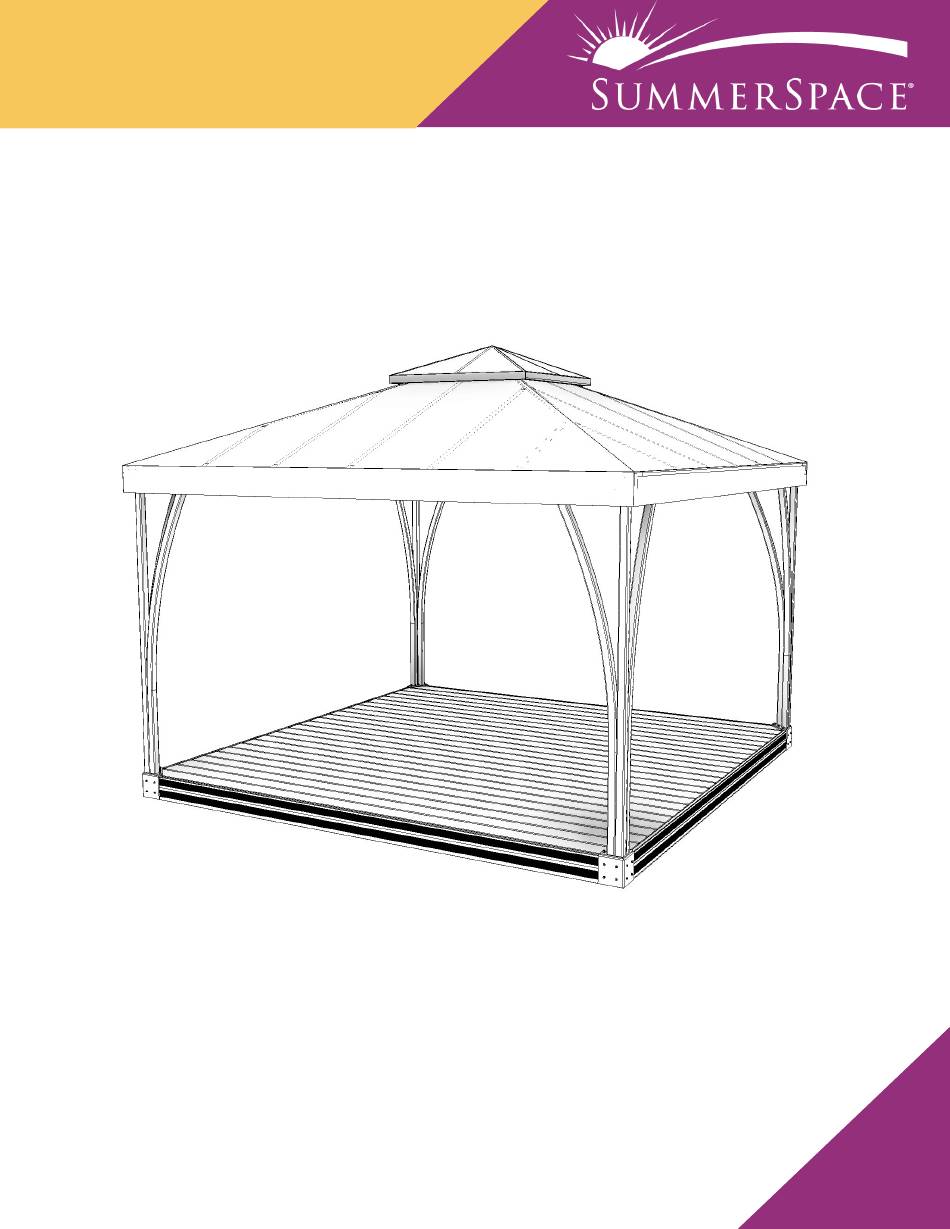

- Page 1 A S S E M B L Y I N S T R U C T I O N S SQUARE/RECTANGLE POOL CABANA Complete Field Assembly Instruction Guide For assistance Call: 1 (207) 795-6536 Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 2 Predrill 1/8" pilot holes in the marked locations on each A1 and A2 Soffit, then secure with six F9 self-drilling screws. Pro Tip - Start with the top fastener to help keep the soffit and corner 90 flush. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 3 Square the frame on the ground by measuring diagonally, from opposite corner to opposite corner. The measurements should be exactly the same, if not shift the frame until those measurements match. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 4 Connect the B1 and/or B2 pieces using H Cupola Ring Corners. Predrill 1/8" pilot holes in the marked locations on each Cupola Ring piece, then secure with four F9 self-drilling screws Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 5 Then, working in a diagonal X pattern, slip the end of each Hip Rafter onto its corresponding H Cupola Ring 90. The roof should start to take shape Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 6 Ensure that the Hip Rafters are fully nested into each G Soffit Corner 90, pre-drill 1/8" pilot holes, and secure with two F9 self-drilling screws inside the fastener hole. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 7 I N S T R U C T I O N S Ensure that each Hip Rafter is fully seated onto its corresponding H Cupola Ring 90, drill pilot holes, and then secure with two F9 self- drilling screws each. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 8 Pre-drill a 1/8" pilot hole in the marked locations and secure both the upper and lower casting into the rafter with two F9 self-drilling screws per casting. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 9 Pro Tip - Make sure both of the castings are fully seated against the Soffit and Cupola Ring. If they are not, use a ratcheting tie-down strap to pull the Soffit flush before securing the rafter. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 10 A S S E M B L Y I N S T R U C T I O N S Secure the lower casting to the soffit using F21 square drive, self- drilling screws. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 11 I N S T R U C T I O N S Lay out the Jack Rafters in their marked locations (23 1/4" on center). Starting from the center and working outwards, secure with F9 self- drilling screws. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 12 Align the legs in each corner, insert, and hand tighten the hardware. Once the roof structure is supported by all the legs, make any final adjustments to each leg and fully tighten the hardware. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 13 Hip Rafter. Secure the top of the Fabric to the H Corner Casting with F9 self- drilling screws through the grommet on either side of the seam. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 14 Cupola Ring. Once all four corners are secure, fasten the Fabric through the grommets at each Common Rafter location using F9 self-drilling screws. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 15 Pro Tip - Keep the Cupola top upside down while passing it over the Cabana, then flip it upright just before setting it in place. This will prevent the mounting rods from contacting the Cabana top and eliminate the possibility of damage to the Fabric Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 16 I N S T R U C T I O N S Insert the Cupola's mounting rods into their pockets in the Cupola Ring, then secure with F11 self-drilling screws. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 17 Insert the M1 and/or M2 Tension Rods into the fabric pockets under the valance. Take your time, making sure to capture each pocket. The rod should be perfectly flush with the end of the last pocket. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 18 Install all straps before tensioning. Pro Tip - Straps that are located behind legs will need to be started in the soffit channel past the legs, and then slid into place. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 19 Pro Tip - Keep the fabric seam even on the top of the hip rafters, as well as along the soffit. If the fabric is tensioned unevenly, the seams will appear curved. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net...
- Page 20 It may be necessary to roll the fabric to up to get the valance stiffener to seat. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
- Page 21 Mount to a significant foundation. A sturdy wooden deck, concrete slab, or poured footers are all acceptable mounting solutions. It is the responsibility of the installer to use appropriate fasteners for the mounting surface. Futureguard Building Products 101 Merrow Road, Auburn, Maine 04210 www.futureguard.net IG-C-SQR-V2.1...
