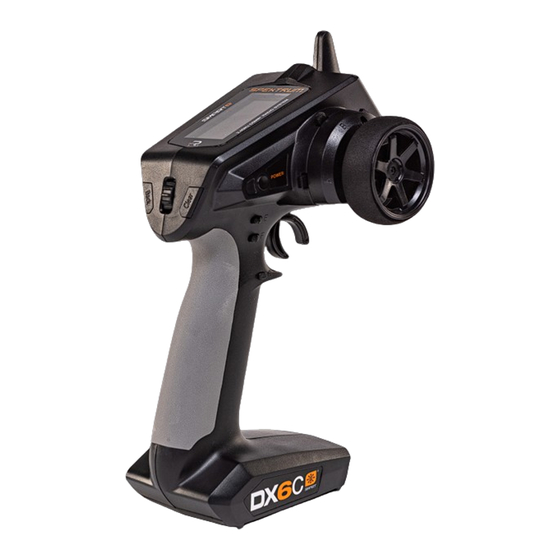

- Page 1 DX6C 6-Channel 2.4GHz DSMR Radio System ® Instruction Manual Bedienungsanleitung Scan the QR code and select Manuel d’utilisation the Manuals & Support tab Manuale di Istruzioni from the product page or the most up-to-date information...
- Page 2 WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 3: Table Of Contents
Receivers. ™ ® ® The DX6C is available with and without a receiver, they are both covered in this manual • SPM6125 includes the SR315 DSMR receiver. • SPMR6125 is a tranmistter only package and does not include a receiver... -
Page 4: Spektrum Sr315 Sport Surface Receiver
When the LED turns solid, power off the reicever, and then The case of the receiver can accept an antenna tube directly, making release the Bind Button optimal antenna placement easy (antenna tube not included). SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 5: Dx6C Controls And Switches
E: Position of Steering (STR) trim F: Position of Throttle (THR) trim G: Position of Brake (BRK) trim H: Position of AUX 1 trim I: Position of AUX 2 trim J: Position of AUX 3 trim SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL... -
Page 6: Navigation
The DX6C does not allow switch assignments to be over-loaded, SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 7: Menu
4. Select Back Button to return to the MENU. To erase a character(s): 5. Press the Clear button while the character is selected. 6. Press the Clear button a second time to erase all characters to the right of the cursor. SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL... -
Page 8: Travel
2. Slide Up or Down to adjust the speed and press OK to save the selection. 3. Select a switch to activate/deactivate the function. If Switch ON is selected, the value will always be on for that function. SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 9: Rates
TIMER The DX6C Timer function allows you to program a countdown timer and stop watch (count up timer) to display on the main screen. An alarm sounds when the programmed time is reached. You can program the timer to start using the assigned switch position or automatically when the throttle moves above a pre-programmed position. -
Page 10: Bind/Frame Menu
IMPORTANT: Always remove the bind plug from the receiver when the bind Process is complete. Failure to do so will cause the receiver to enter bind mode the next time you power on the receiver. SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 11: Mixing
MIXING Mixes can connect two servo outputs to one control input. The DX6C features preset steering mixes and one programmable mix (Mix 0). The AUX channels can only be assigned to one mix at a time. If AUX 1, 2, or 3 is assigned to another mix, it will not be available as a slave channel option. -
Page 12: Avc Programming Menu
AVC PROGRAMMING MENU The DX6C includes a menu specific to AVC operation. This menu manages AUX 1 and AUX 2 operation and tailors it for technolgy use. The AVC menu also controls the Priority features. See page 18 for more information on AVC tuning ®... -
Page 13: Telemetry
USB SETTINGS The DX6C can operate as a game controller on a PC when connected to the USB port. When this mode is set to Inhibit the transmitter will operate normally. When the mode is set to Active the transmitter will not transmit (RF is off and the transmitter does not connect or bind with a receiver). -
Page 14: Settings
Assign Trims to any trimmer or switch on the transmitter. 1. Select the Trim position from the list. 2. Press OK to select the position. 3. Slide to select the Trim desired in that position. 4. Press OK to save the selection. SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 15: Settings (Continued)
In the Model Utilities function you can create a new model, delete a model, copy a model, reset a model to default settings and sort the model list. If the DX6C is updated, use the Validate All selection to ensure model settings are updated to be fully compatible with the new firmware. -
Page 16: Model Utilities (Continued)
OK to select it. Use the slide button to move the selected model to the position desired. Press OK when you have the model in the position desired. SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 17: Physical Transmitter Adjustments
Updates require the a micro USB cable (not included, PC required). The micro USB port is only for updates, it cannot be used to charge the transmitter battery. SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL... -
Page 18: Avc Tuning (Avc Receiver Not Included)
For example: If a truck set up for 2S is upgraded to 3S, the truck may oscillate at high speeds on 3S, requiring steering gain to be reduced. Throttle gain will have a bigger effect on 3S, so increasing throttle gain may be beneficial. SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 19: Troubleshooting Guide
Re-bind with the second bind plug in the disable port inserted after binding OPTIONAL PARTS LIST PART # PARTS DESCRIPTION SPM6719 Spektrum DX6R Transmitter Case Additional optional parts and details are available at SpektrumRC.com SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL... -
Page 20: 1-Year Limited Warranty
Once assembly, setup or use of the days from notification, after which it will be discarded. Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your 10-15 SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL... -
Page 21: Warranty And Service Contact Information
Class B digital device, pursuant to part Email: compliance@horizonhobby.com 15 of the FCC Rules. These limits are designed to provide Web: HorizonHobby.com reasonable protection against harmful interference in a SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL... -
Page 22: Ic Information
European Directive 2012/19/EU concerning waste of Wireless Frequency Range and Wireless Output Power: electrical and electronic equipment (WEEE). This DX6C: 2402 – 2478 MHz / 20dBm label indicates that this product should not be SR315: 2404 – 2476 MHz / -1.33dBm disposed of with household waste. - Page 23 DSM, DSM2, DSMR, AVC and Active Vehicle Control are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
