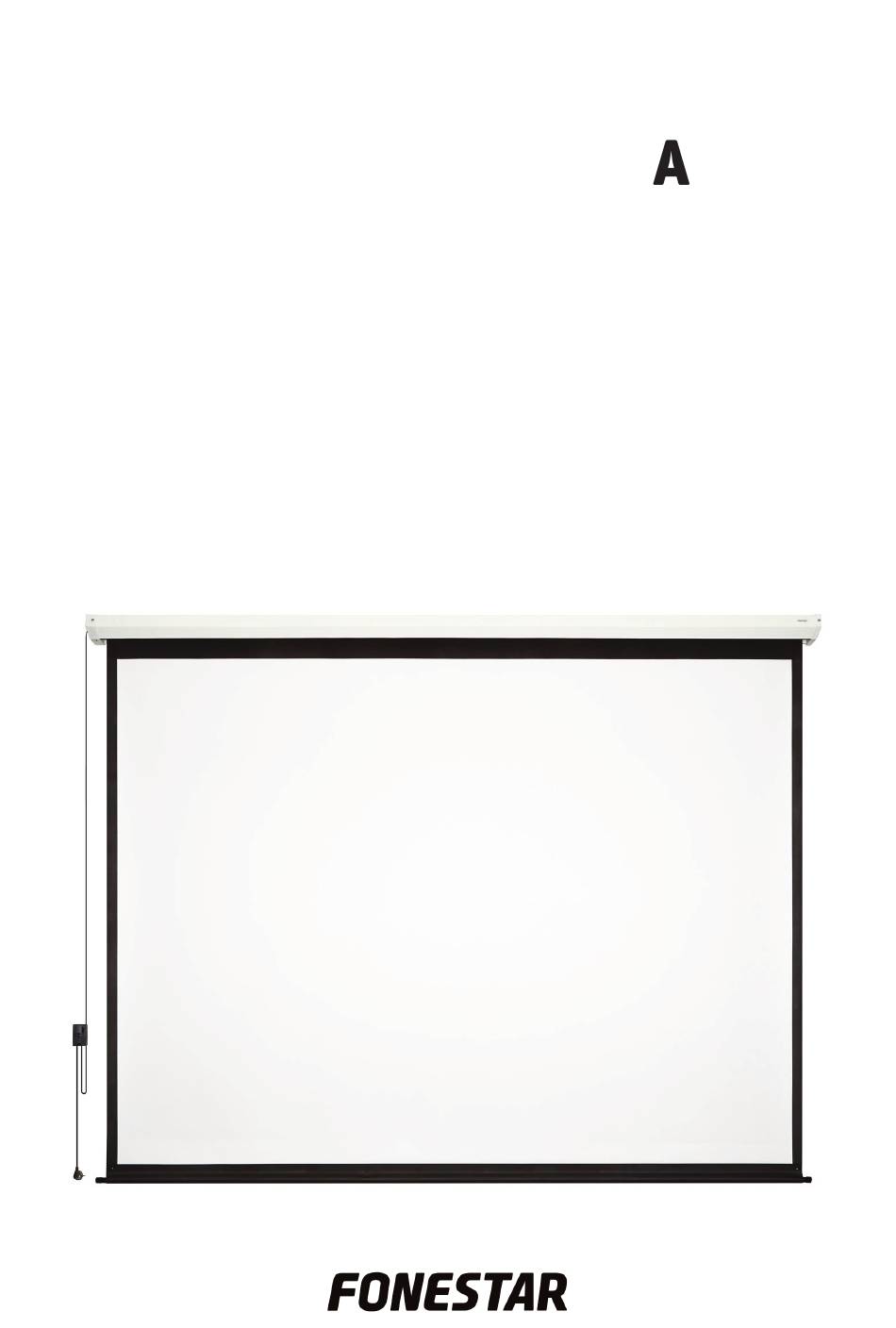

- Page 1 PPEL-43200-B ELECTRIC PROJECTOR SCREEN INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
- Page 4 DESCRIPTION - Electric projector screen with silent and fast tubular motor. - Operates with control buttons or RF remote control. - Adjustable run for different sized screens. - Ideal for classrooms, conference rooms, etc. - Screen dimensions: 200” (4 x 3 m). ASSEMBLY INSTRUCTIONS CAUTION: make sure that the surface on which the screen is to be mounted is strong enough and completely flat.
- Page 5 3.- Connect the wall receiver to the mains supply. - 5 -...
- Page 6 ADJUSTMENT OF MOTORIZED DROP AND RETRACT LIMITS The screens are supplied with the drop and retract limits adjusted to the screen size. In most cases it is not necessary to adjust them. Use the following instructions to adjust them: RETRACT LIMIT Regulate the retract limit using an allen key in keyhole 1 (yellow).
- Page 7 The remote control and the wall receiver will remain synchronized. Now both the remote control and the wall receiver can be used to raise and lower the screen. TECHNICAL SPECIFICATIONS PPEL-43200-BA CHARACTERISTICS Electric projector screen. Silent and fast tubular motor.
- Page 8 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
