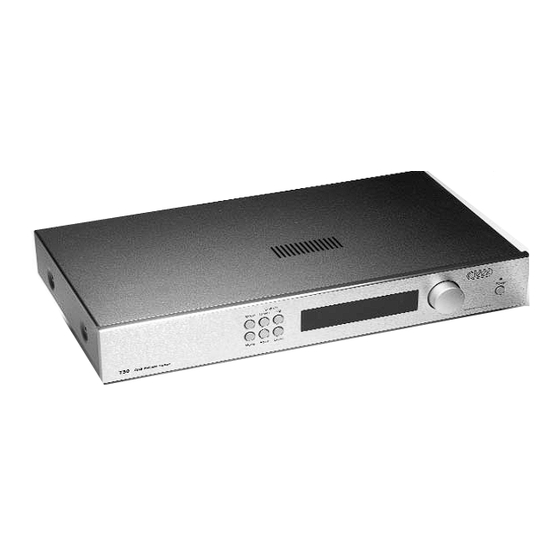

Creek audio operating instructions am/fm tuner t50

Advertisement

Quick Links

mThank you for purchasing the T50. You are now in possession of a State of the art
RDS AM/FM tuner. The T50 is a matching tuner for the 50 & 53 series Creek product
range, although it will work very well with any other manufacturers' amplifiers.
Creek T50

Operating Instructions

The functions and operation of the T50 are deceptively
simple for the many features that it offers, which can also
be remotely controlled. The following notes are provided
to explain all aspects of its design and use.
T T 5 5 0 0 F F U U N N C C T T I I O O N N S S
F F r r o o n n t t p p a a n n e e l l c c o o n n t t r r o o l l s s
1. Tuning / Pre-sets station selection, by rotary control
knob, is switched by the Mode selector.
2. Mode selector push button changes the function of
the rotary control from tuning to pre-set station selec-
tion and back again.
3. Band push button selects FM, MW and LW for
Europe, or FM/AM for North America and countries
without LW. Custom frequencies and bands for other
locations are factory set, but Creek dealers can re-
program them if you have to move to a different zone.
4. Search Up / Down push button tunes up or down
automatically, stopping on each usable station and
rolling over at band ends.
5. Display push button allows a selection of display
brightness settings, from off to fully bright.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Creek Audio T50

  • Page 1: Operating Instructions

    T50. You are now in possession of a State of the art RDS AM/FM tuner. The T50 is a matching tuner for the 50 & 53 series Creek product range, although it will work very well with any other manufacturers’ amplifiers.
  • Page 2: Rear Panel

    6. Store allows selected stations to be memorised by the tuner in pre-set channel locations, separately on each wavelength. 7. Display window together with all other function status in a highly visible green display. 8. Infra-Red sensor (except Display). See Remote Control notes on page 7 of this manual. 9.
  • Page 3: Power Supply Requirements

    CONNECTING THE T50 Power supply requirements To operate the tuner it is necessary to first connect the unit to the mains supply via the power cord supplied. There is an IEC mains connector on the rear panel that contains a protection fuse and mains switch.
  • Page 4 Pre-Set mode, selected by the MODE button (which toggles between the two functions). The T50 will remember the last tuned frequency, station ID or pre-set after switching off, so it can be restored when switching back on. NB. The last tuned station will only be remembered if it has been left unaltered for 1 minute before switching off..
  • Page 5: Band Selection

    M M W W Tuning and signal strength indicator When tuning across the band the T50 indicates the presence of a station. If the station is not quite tuned in, arrows indicate the way the tuning knob should be turned to obtain centre tuning and lock.
  • Page 6 If you prefer to allocate the station a different pre-set number (1-29), turn the tuning knob until the PRE-SET indicator displays the desired number and then press the STORE button as above. The T50 will now be ready to store another station and will attempt to place it in the next consecutive pre-set number address, should you wish to do so.
  • Page 7: Remote Control Operation

    3. Low 4. Off The display levels are held in the memory of the T50 and will be remembered if the tuner is powered off. If the tuner is working but there is no display, it could be that the display brightness level has been switched to off.
  • Page 8 WEIGHT MAINS VOLTAGE AND FREQUENCY IS INTERNALLY SET FOR THE COUNTRY OF USE Creek Audio Ltd reserves the right to change or modify the specification of its products without prior warning. Creek Audio Ltd. 12 Avebury Court, Mark Road, Hemel Hempstead, HP2 7TA, England...
