Summary of Contents for Spartus WRC310

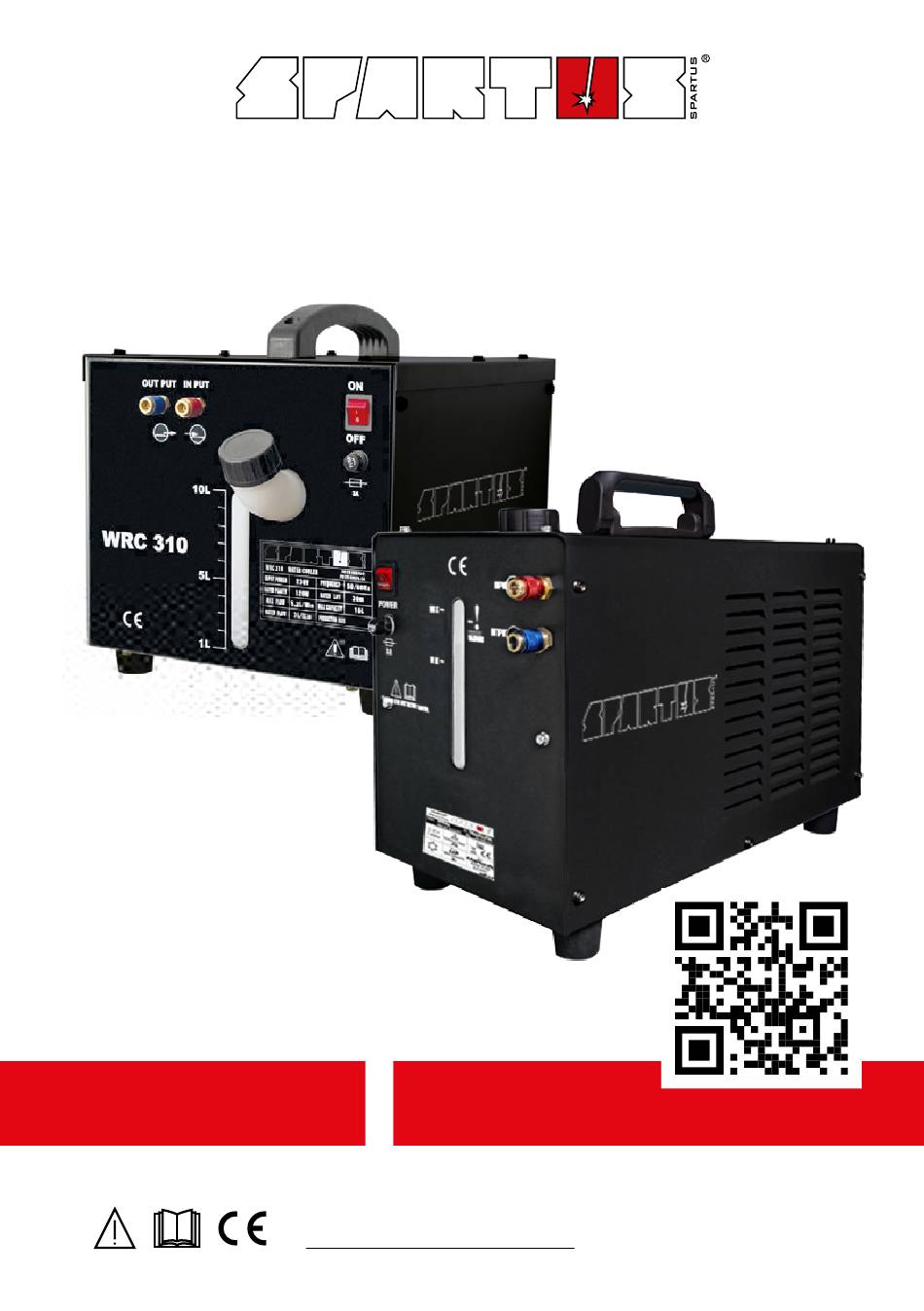

- Page 1 Welding water cooler SPARTUS® WRC310 WRC400 User’s manual...
- Page 2 Therefore, our offer covers such a wide assortment of products. Thank you very much for your trust in our company. We would like to invite you to familiarize yourself with the remaining products and offer at www.spartus. info or directly at a local distributor of SPARTUS® products.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING ....2 1.1 General safety rules ................................2 1.2 Electric shock can kill ................................2 1.3 Welding arc radiation can be dangerous ........................3 1.4 Vapours and gases can be dangerous .......................... 3 1.5 Noise can be harmful ................................ -
Page 4: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and per- shall be taken during manual handling. sons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL • Power supply must never be connected Such radiation can be direct or reflected from before the accessories of SK sockets/con- surfaces such as bright metals and light colo- nectors are properly installed in the device. ured objects. •... -
Page 6: Noise Can Be Harmful
USER’S MANUAL Arc welding and allied processes produce wel- in case of an emergency, are in the imme- ding fume which may pollute the atmosphere diate vicinity. surrounding the work. Welding fume is a vary- • In closed rooms or in certain circumstances ing mixture of airborne gases and fine particles during outdoor operations, it may be re- which, if inhaled or swallowed, constitute a... -
Page 7: Fire Or Explosion Hazard
USER’S MANUAL source, observed for an adequate period after its c) effective maintenance of sound protection termination. devices, • „Hot spots” and immediate surroundings d) indication as „ear protection areas” where should be observed until their temperature applicable, has dropped to normal. e) restriction of entry to these „ear protection 1.6.2 Explosion hazard areas”... -
Page 8: Other Hazards
USER’S MANUAL 1.7.4 Moving elements can be dangerous cylinder valve socket when the valve is being opened. • Special valve shield should always be in- stalled during cylinder transportation or when the cylinder is not used. OTHER HAZARDS Arc welding and allied processes carrying other All protective elements and device housing hazards not listed before. -
Page 9: Symbols Used In Instructions
USER’S MANUAL WARNING The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition. Never bring a bare hand close to the electrode, when the device is connected to a power source. 1.9 SYMBOLS USED IN INSTRUCTIONS We use this symbol to pay your attention about important information. -
Page 10: Assesment Of Area
Methods of reducing electromagnetic interference are listed in detail in the standard EN 60974-9 – „Arc welding equipment – Part 9: Installation and use”. 4. CONFORMITY WITH STANDARDS The SPARTUS® WRC310 / WRC400 water coolers are in conformity with the relevant Union har- monization legislation: LVD 2014/35/UE... -
Page 11: General Description
5. GENERAL DESCRIPTION SPARTUS® WRC310 / WRC400 water coolers The SPARTUS® WRC310 / WRC400 water coolers are designed to cool welding torches. It is cha- racterized by high performance. The large-capacity coolant vessel is equipped with a coolant level gauge. The machines are mains powered from single phase 230V source power. -
Page 12: Technical Parameters Of Device
0.2% Benzotriazole. 7. INSTALLATION AND USE WARNING! SPARTUS® WRC water coolers are intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. Qualified person (def.) A person who has gained the relevant technical education, training took place and / or gained experience to perceive the risk and avoid hazards during use of the product (IEC 60204-1). -
Page 13: Description Of Construction
USER’S MANUAL 7.3 DESCRIPTION OF CONSTRUCTION Transport handle Coolant in Water level indicator Inlet (hot water) Outlet (cold water) Power switch Power cord Vents... -
Page 14: Connecting To Power Supply
3. Screw the filler cap. 7.5.2 Connecting the welding torch SPARTUS® WRC410 water cooler has built-in quick couplings. It is the most popular standard 21. Welding torch should be equipped with water hoses armed in type 21 couplings (male plug). -
Page 15: Maintenance
USER’S MANUAL 8. MAINTENANCE WARNING! Before performing any maintenance or repairing of device, disconnect welding machine from the power source and wait at least 5 minutes. The voltage accumulated in capacitors should be discharged at this time to a safe level. But even after that operation you should be careful. Maintenance and repair work may be performed only by qualified personnel with the appropriate per- missions. -
Page 16: Troubleshooting
10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS® dealer or authorized service center. - Page 17 Notes...
- Page 18 Notes...
- Page 19 A masterly combination of high quality production, excellent parameters and ergonomics – these are fea- tures of the SPARTUS® Master series of devices, which were created with demanding welding jobs in mind. Precision, functionality, excellent parameters and resistance to high workloads –...
- Page 20 Videopresentation of products Subscribe to the channel SPARTUS.INFO...
