Summary of Contents for TEKNIX SCGH91B

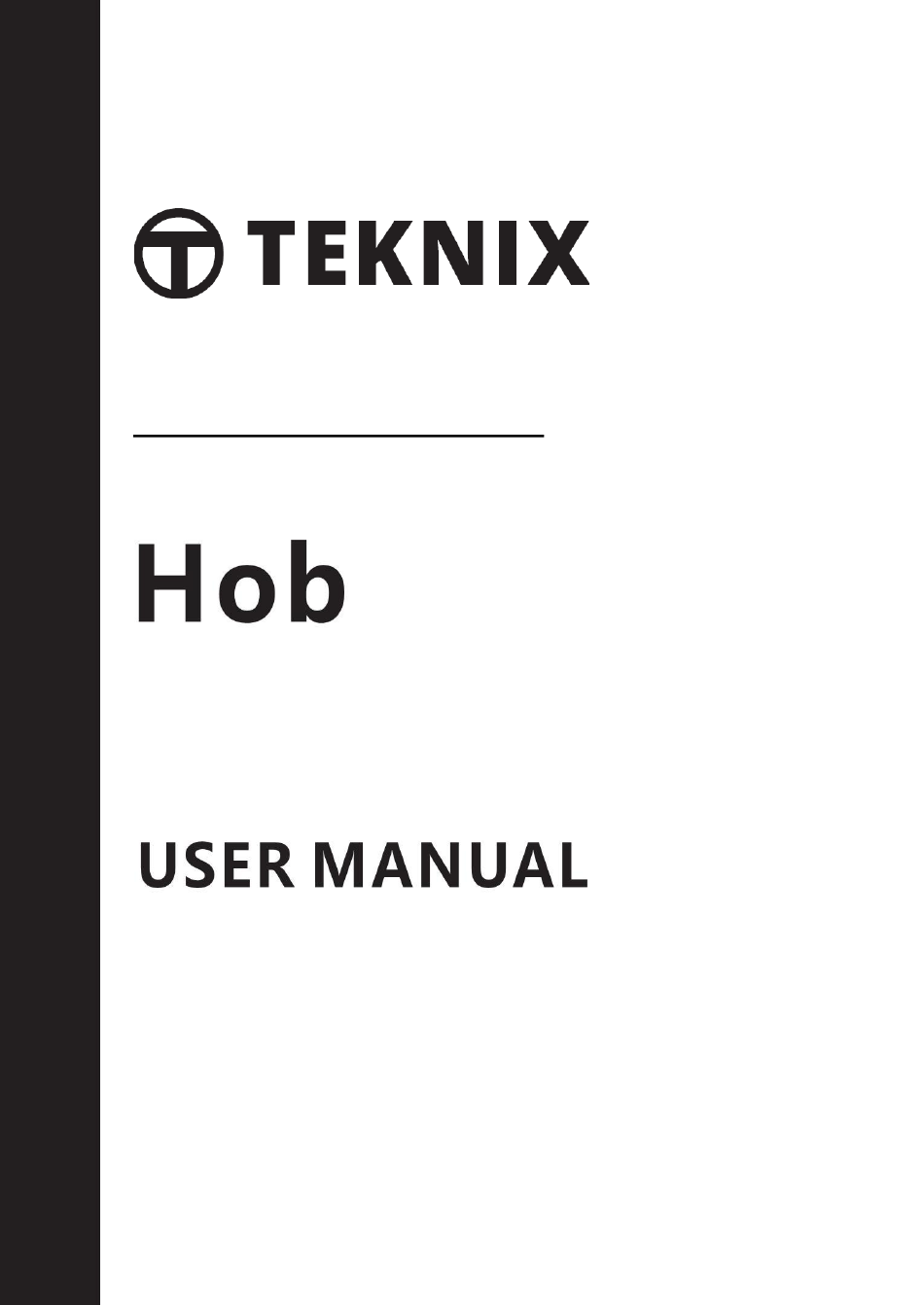

- Page 1 SCGH91B & SCGH91X...
- Page 3 These instructions have been drawn up for your safety and that of others. You are therefore requested to read them carefully before installing and using the appliance. Keep this instruction manual for future reference as necessary. If the appliance is sold or moved, make sure that the manual is handed over to the new user.
- Page 4 During use This product is designed to cook food inside ordinary homes and for · non-professional purposes. It should not be used for any other purpose. After using the appliance, make sure that all controls are in “CLOSED” or “OFF” ·...
- Page 5 Contents For the User For your safety ........................ 1 Description of the hob ..................... 4 Instructions for use ......................13 Cleaning and maintenance ....................14 For The Installation Technician Technical data ........................ 4 Instructions for the installation technician ..............7 Electrical connection ......................
- Page 6 Description of the hob A_ Hob B_Burner control knobs C_Small auxiliary burner D_Cast iron pan support E_Medium semi-rapid burner F_Large rapid burner G_Triple flame burner H_Cast iron pan support Technical Data Dimensions in mm: 840x480 Installation opening L x P 20mbar OUTPUT OUTPUT...
- Page 7 Instructions for the installation technician CAUTION: This appliance must only be installed and used in rooms with permanent ventilation to local standards. Installation of the appliance and its connection to the electrical mains must only be carried out by QUALIFIED PERSONEL. Before any procedure, it is important to check that the appliance is DISCONNECTED from the electrical mains.
- Page 8 If it is not possible to install the hood (fig. B) an electric fan must be installed on the outside wall or the window of the room, provided it is possible for the ventilation opening to be increased in proportion to the delivery rate of the fan (fig. C). For a kitchen, the delivery rate of this electric fan must guarantee an hourly air exchange of 3-5 times its volume.
- Page 9 Electrical connection The appliance is profited to operate with a power supply voltage of 230Vsingle-phase. The connection must be made in accordance with the regulations and laws in force. Before making the connection, make sure that: 1) The safety circuit-breaker and the electrical system are able to withstand the load of the appliance(see nameplate).
- Page 10 Adapting to the different types of Changing the nozzles Remove the pan standee. Remove the burner caps and flame caps from the burners. Use a size 7 socket wrench to unscrew and remove the nozzles, replacing them with those corresponding to the type of gas to be used (see the table).
- Page 11 Building into fitted kitchen units These hobs are designed for installation in fitted kitchen units up to 600mm deep with suitable characteristics. Any cabinet side panels taller than the height of the hob itself must be at least 150mm away from the opening into which the hob is inserted. The dimensions of the hob and the installation opening are shown in the illustration.
- Page 12 Installation options On base cabinet with door When constructing the cabinet, suitable precautions must be taken to prevent contact with the casing of the hob, which becomes very hot during operation. The recommended method for overcoming this problem is illustrated in fig.1 The panel underneath the hob must be easily removable to allow the hob to be locked in position and released in case of servicing work...
- Page 13 Instructions for use The hob control knobs The symbols on the control knobs mean the following: ● No gas flow Maximum gas flow Minimum gas flow All operating positions must be set between the maximum and minimum flow settings, and never between the maximum setting and the closed position.
- Page 14 In the instance of a power cut, place a flame near the burner and proceed as already described. If the flame does not light after a few attempts, check that the “burner cap” and "flame cap" are correctly positioned. To turn off the flame, turn the control knob clockwise to the symbol.
- Page 15 Clean the hob regularly with a soft cloth wet with lukewarm water and a little liquid detergent. Do not use the following products: - household detergents or bleaches; - soaped scouring pads not suitable for non-stick utensils; - steel wool scouring pads; - stain removers for baths or sinks.
