Summary of Contents for Elegoo MARS MATE

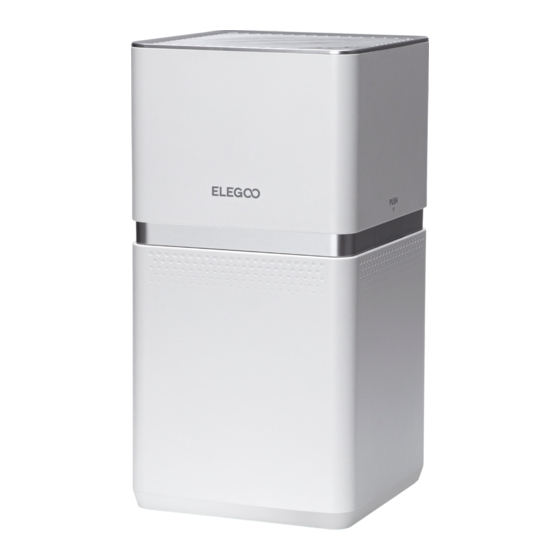

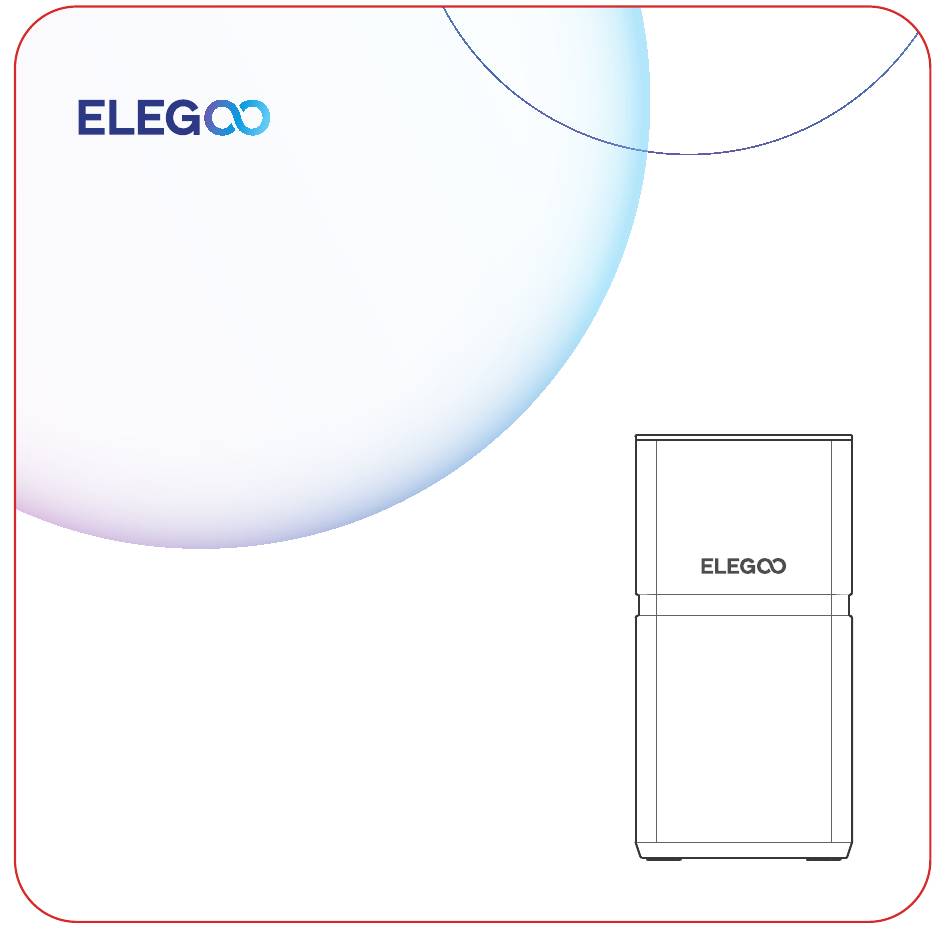

- Page 1 MARS MATE Air Purifier User Manual...
- Page 2 After receiving the product, please confirm whether the equipment is intact and the accessories are complete. If there is any damage or missing, please timely contact us at 3dp@elegoo.com. (To ensure the performance of each product, each product will undergo strict testing before leaving the factory.
- Page 3 Notice: Do not block the air inlet/outlet. Do not rinse the composite filter with water. Do not unplug/plug the power plug when your hands are wet. Regularly remove the dust on the air purifier and power plug. Only the supplied power adapter and matched special filter element can be used. Do not use the air purifier in places with heavy humidity or oily fumes, such as bathrooms.
-
Page 4: Packing List
Packing List Composite Filter Connector Seat Connector Hose (already installed in the machine) Adapter User Manual Nuts (4 pcs) MARS MATE Air Purifier Screws (4 pcs) Allen wrench Open end wrench... -
Page 5: Machine Parameters
Machine Parameters Machine Name： MARS MATE Air Purifier Machine Model： AP01 Rated Voltage： 100-240V 50/60Hz Rated Power： 12V 0.5A Noise： 35dB Net Weight： 5.2kg Gross Weight： 7.0kg Product Size： 210x247x410mm Package Size： 479x281x324mm Working Environment： Temperature： 14 F-104 F (-10°C-40°C); Humidity: ≤95%RH... -
Page 6: Machine Introduction
Machine Introduction Air Outlet Touch Control Button Host Open Lid Button Composite Filter... - Page 7 Operating Instructions On/Off Button Short press the "on/off button" to turn on the machine, and long press the "on/off button" for 3 seconds to turn off the machine; the icon for the power on status will light up in white, and the icon for power off...
- Page 8 Operating Instructions 2. Forced reset the filter life, within the 30s of power-on, in standby mode, long touch the "auto button" for 3 seconds + short touch the "filter reset button" for 3 times to enter the filter life reset, and after sending a "ding" sound, the red indicator light of the filter flashes about 5 times, frequency: 0.5 seconds/time, indicating that the forced reset action is completed.
- Page 9 Instructions for Use Start using 1. Take out the connector hose and connect it to the extension port of the 3D printer.(Screws and wrenches are in the accessories package)(See Picture 1) 2. Remove the connector hose and connect it to the air purifier and the 3D printer. (See Picture 2) (Picture1）...
-
Page 10: Filter Replacement
Filter Replacement Note: Before use, please ensure that the plastic protective bag outside the filter cartridge is removed and installed correctly. Press the button lightly with your Lift up the upper part of the machine. Take out the filter in the machine. hand according to the labeled button on the product. -
Page 11: Cleaning And Maintenance
Cleaning and Maintenance Before maintenance, the power cord must be unplugged from the power socket. 1. Clean the Machine Body 1) Use a soft rag to erase stains. 2) For stubborn stains that are not easy to wipe off, you can use a soft cloth dipped in an appropriate amount of neutral detergent. - Page 12 1. The product does not work normally 1) There is a connection problem, please check whether the plug is inserted into the socket and whether the "on/off" button is turned on. 2) The filter cover is not properly installed, please reinstall the filter cover. 2.
-
Page 13: Warranty Statement
Warranty Statement 1. From the date of purchase, ELEGOO equipment enjoys a 1-year free warranty service, except for the composite filter. 2. During the warranty period, the company is responsible for free repair for performance and functional failures that occur under normal use, and replace it if the machine cannot be repaired. - Page 14 Email Support Discussion Forums Help Articles...
