Summary of Contents for LOWES OAJS-2001
- Page 1 JUMP STARTER OAJS-2001 Instruction manual Before using the product, please read this instruction manual carefully and keep it for future reference. Note: There may be small differences between the images shown here and the product itself.
- Page 2 1. This product was designed for 12V lead acid/AGM/Gel batteries/vehicles only. 2. DO NOT connect the red and black clamps together. It will short circuit the jump starter 3. Do not disassemble the jump starter 4. Keep away from children. It is not a child’s toy 5.

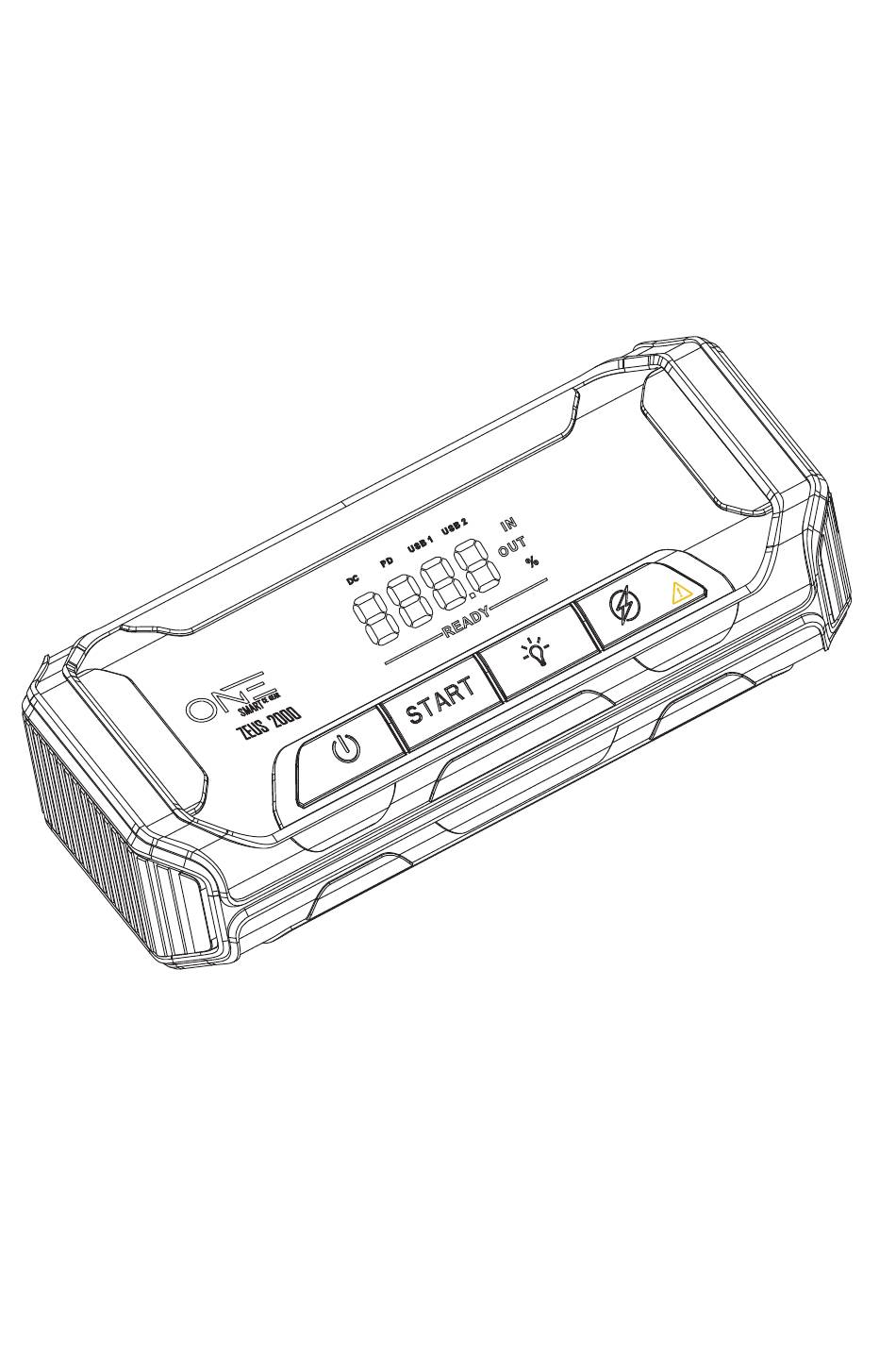

- Page 3 Battery Capacity: 74.0Wh Peak Current: 2000A Dimensions: 227*101*59 mm Type-C Input: 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A Output USB-C: 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A Output USB1: 5V/3A; 9V/2A; 12V/1.5A Output USB2: 5V/2.4A Output DC: 12V/10A Max 1. LED Light 2. Power Button 3.
- Page 4 USB 1 USB 2 READY USB 1 USB 2 1. When a USB is connected and charging, this will be displayed 2. When a DC cable is connected and charging, this will be displayed 3. When a USB-C cable is connected and charging, this is displayed.
- Page 5 Jump Starter x 1 Jumper Cable ×1 Packaging User Manual x 1 Type-C Cable (IN/OUT) ×1 USB A + USB C USB Cable (OUT) ×1...
- Page 6 Type-C (In/Out) USB 1 USB 2 Plug in any compatible Plug in the phone or Press the power button USB to USB1, USB2, other device to start charging or Type-C Press the Button Type-C (In/Out)
- Page 7 READY Insert the jumper cables Press the power button, then The screen will blink into the jump starter and press START button a green “READY” connect the clamps to the car battery. (Red to positive/ Black to negative) FORCE START PRESS 3 SECONDS Once solid green, If your car battery is in low voltage (below 2V), press and hold the...
- Page 8 Disconnect jumper cables (not in use) "READY" icon Jumper cables are - or - green and red connected to jump Connect clamps flashing starter to car battery Jumper clamps are "READY" Ready to jump start connected to the solid green your car car battery Ensure the correct...
- Page 9 a solid red "READY" and beeping ; The voltage will automatically cut out Automatically cut off output after 45 seconds Turn it back on & and it has not started follow the while the solid red instructions "READY" is visible When the jump starter is outputting lower than 13.0V, there will be no...
- Page 10 The charge is low and needs recharging unit to rechearge Automatically High temperature "H8" displays on recover when protection, stop working the screen the temperature at this time drops Automatically Low temperature "H0" displays recover when protection, stop working on the screen the temperature at this time increases...
-
Page 11: Toxic And Harmful Substances
A: The decive will automatically shut down after 30 seconds of idle use. (no charge happening) What is the lifespan of Jump Starter? 500 cycles or full charges.(It can still be used after 500 cycles, but the capacity remains at about 80%.) How long can Jump Starter hold a charge? TOXIC AND HARMFUL SUBSTANCES: Composition and amount of toxic and harmful substance in jump star ter... -
Page 13: Warranty Information
WARRANTY INFORMATION: 1. We o f f e r a l i m i t e d wa r r a n t y f o r t h i s p r o d u c t a g a i n s t a ny d e f e c t s i n m a t e r i a l a n d wo r k m a n s h ip for a period of 12 months since the da te of the factor y.
