BLINDSTER N300710-Q Installation Instructions Manual

Roller shade
Hide thumbs

Advertisement

Quick Links

Download this manual
N300710-Q
Roller Shade
INSTALLATION INSTRUCTIONS
Roller Tube/No Fascia

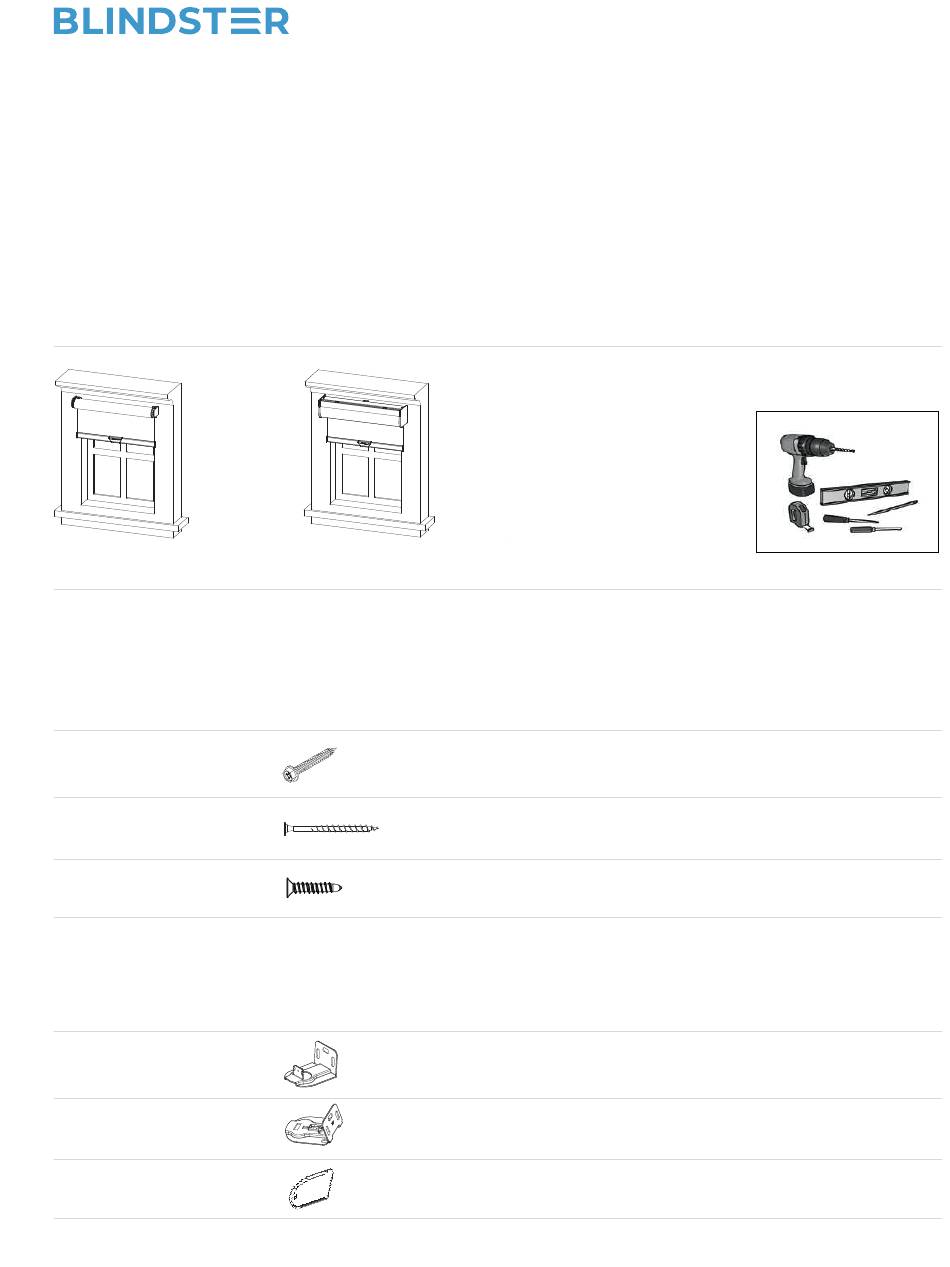

HARDWARE INCLUDED
1. SCREWS NEEDED FOR INSTALLING
Hardware
1 1/4" Hexagon screw
2" Flat head screw
5/8" Flat head screw
2. HARDWARE FOR REGULAR ROLLER SHADE (NO RACEWAY)
Hardware
Shade bracket
Shade bracket
Bracket cover
With Fascia
Drawing
Drawing
RECOMMENDED TOOLS
•
Screw gun / Drill
•
Tape Measure
•
Screwdriver
•
Level
•
Pencil
Usage
To install shade brackets
To install safety tension device for continuous cordloop
To install magnet catch
Usage
To install shade (on control side)
To install shade (on End Plug side)
Shade bracket cover (Pre-installed on the shade bracket)
