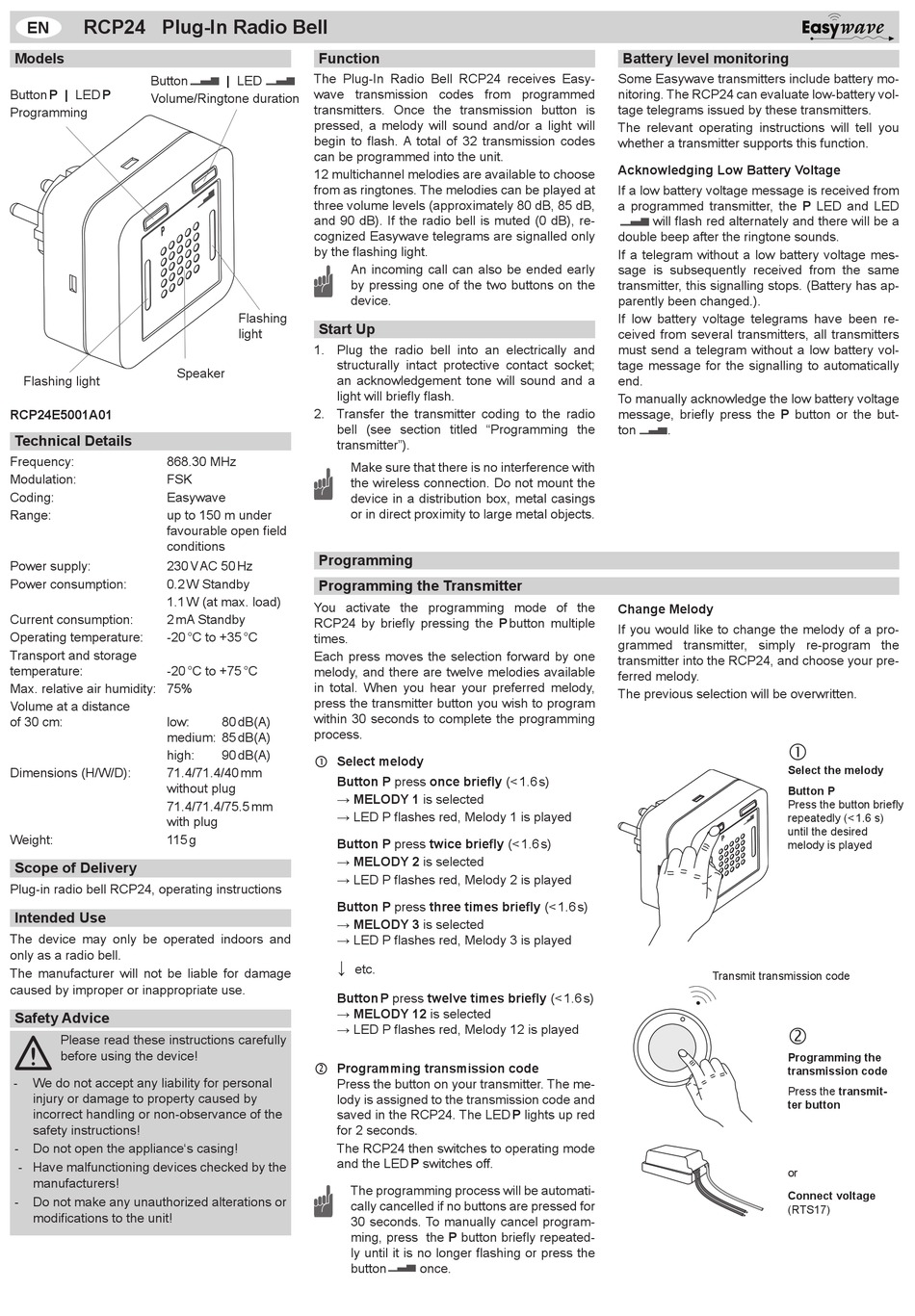

Easy wave RCP24 Manual

RCP24 Plug-In Radio Bell
EN
Models
Button
Button P | LED P
Volume/Ringtone duration
Programming
Speaker
Flashing light
RCP24E5001A01
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Range: up to 150 m under
favourable open field
conditions
Power supply: 230 V AC 50 Hz
Power consumption: 0.2 W Standby
1.1 W (at max. load)
Current consumption: 2 mA Standby
Operating temperature: -20 °C to +35 °C
Transport and storage
temperature: -20 °C to +75 °C
Max. relative air humidity: 75%
Volume at a distance
of 30 cm: low:
medium: 85 dB(A)
high:
Dimensions (H/W/D): 71.4/71.4/40 mm
without plug
71.4/71.4/75.5 mm
with plug
Weight: 115 g
Scope of Delivery
Plug-in radio bell RCP24, operating instructions
Intended Use
The device may only be operated indoors and
only as a radio bell.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Please read these instructions carefully
before using the device!
- We do not accept any liability for personal
injury or damage to property caused by
incorrect handling or non-observance of the
safety instructions!
- Do not open the appliance's casing!
- Have malfunctioning devices checked by the
manufacturers!
- Do not make any unauthorized alterations or
modifications to the unit!
Function
The Plug-In Radio Bell RCP24 receives Easy-
| LED
wave transmission codes from programmed
transmitters. Once the transmission button is
pressed, a melody will sound and/or a light will
begin to flash. A total of 32 transmission codes
can be programmed into the unit.
12 multichannel melodies are available to choose
from as ringtones. The melodies can be played at
three volume levels (approximately 80 dB, 85 dB,
and 90 dB). If the radio bell is muted (0 dB), re-
cognized Easywave telegrams are signalled only
by the flashing light.
An incoming call can also be ended early
by pressing one of the two buttons on the
device.
Flashing
Start Up
light
1. Plug the radio bell into an electrically and
structurally intact protective contact socket;
an acknowledgement tone will sound and a
light will briefly flash.
2. Transfer the transmitter coding to the radio
bell (see section titled "Programming the
transmitter").
Make sure that there is no interference with
the wireless connection. Do not mount the
device in a distribution box, metal casings
or in direct proximity to large metal objects.
Programming
Programming the Transmitter
You activate the programming mode of the
RCP24 by briefly pressing the P button multiple
times.
Each press moves the selection forward by one
melody, and there are twelve melodies available
in total. When you hear your preferred melody,
press the transmitter button you wish to program
within 30 seconds to complete the programming
80 dB(A)
process.
90 dB(A)
Select melody

Button P press once briefly (< 1.6 s)
→ MELODY 1 is selected
→ LED P flashes red, Melody 1 is played
Button P press twice briefly (< 1.6 s)
→ MELODY 2 is selected
→ LED P flashes red, Melody 2 is played
Button P press three times briefly (< 1.6 s)
→ MELODY 3 is selected
→ LED P flashes red, Melody 3 is played
etc.
Button P press twelve times briefly (< 1.6 s)
→ MELODY 12 is selected
→ LED P flashes red, Melody 12 is played
Programming transmission code

Press the button on your transmitter. The me-
lody is assigned to the transmission code and
saved in the RCP24. The LED P lights up red
for 2 seconds.
The RCP24 then switches to operating mode
and the LED P switches off.
The programming process will be automati-
cally cancelled if no buttons are pressed for
30 seconds. To manually cancel program-
ming, press the P button briefly repeated-
ly until it is no longer flashing or press the
button once.
Battery level monitoring
Some Easywave transmitters include battery mo-
nitoring. The RCP24 can evaluate low-battery vol-
tage telegrams issued by these transmitters.
The relevant operating instructions will tell you
whether a transmitter supports this function.
Acknowledging Low Battery Voltage
If a low battery voltage message is received from
a programmed transmitter, the P LED and LED
will flash red alternately and there will be a
double beep after the ringtone sounds.
If a telegram without a low battery voltage mes-
sage is subsequently received from the same
transmitter, this signalling stops. (Battery has ap-
parently been changed.).
If low battery voltage telegrams have been re-
ceived from several transmitters, all transmitters
must send a telegram without a low battery vol-
tage message for the signalling to automatically
end.
To manually acknowledge the low battery voltage
message, briefly press the P button or the but-
ton .
Change Melody
If you would like to change the melody of a pro-
grammed transmitter, simply re-program the
transmitter into the RCP24, and choose your pre-
ferred melody.
The previous selection will be overwritten.

Select the melody
Button P
Press the button briefly
repeatedly (< 1.6 s)
until the desired
melody is played
Transmit transmission code

Programming the
transmission code
Press the transmit-
ter button
or
Connect voltage
(RTS17)
