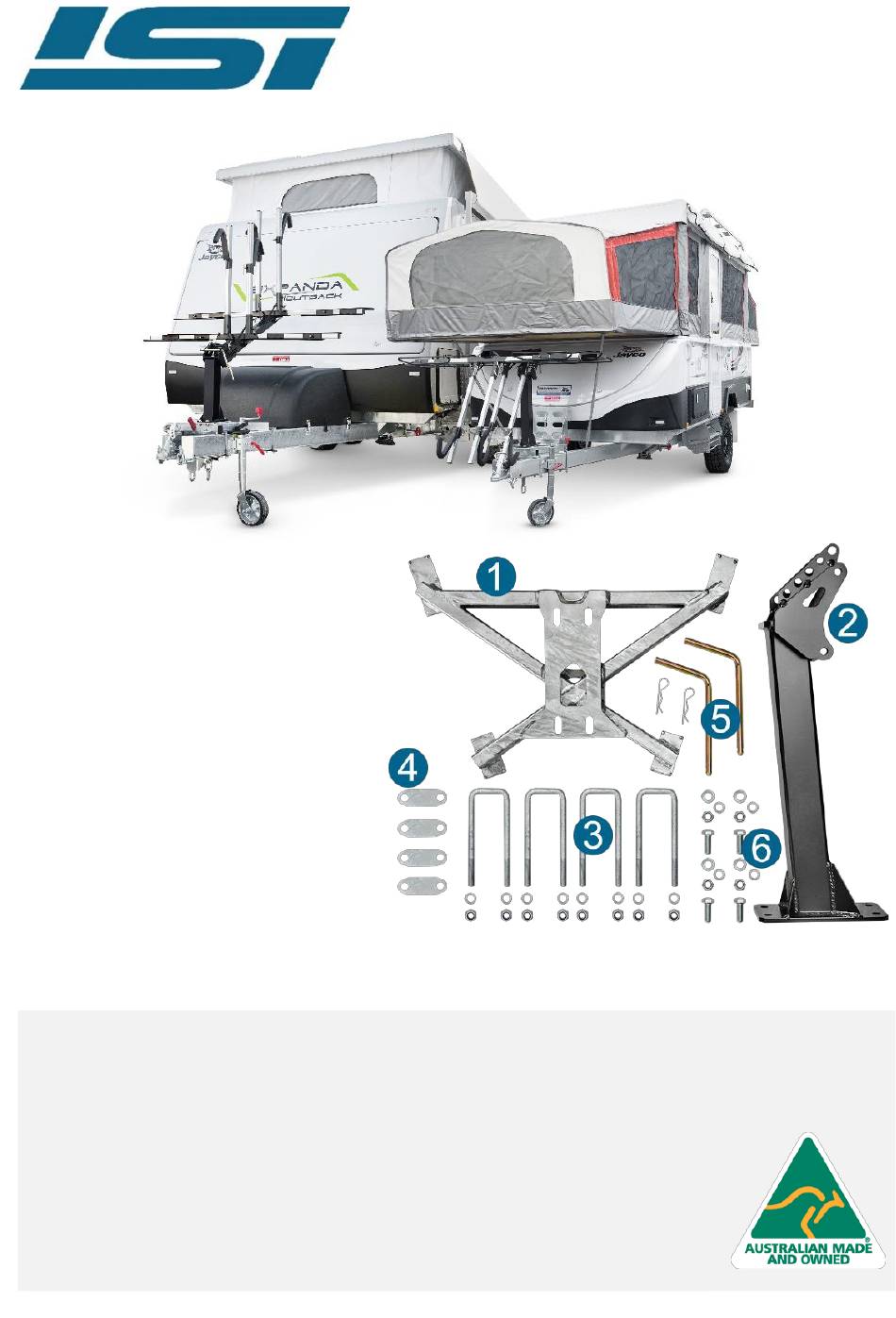

Drawbar Mounting System

1. 1 x Cross-Mount

2. 1 x StrongArm Post

3. 4 x U-Bolt, Washer & Nut

4. 4 x Fish Plate

5. 2 x Pivot Pin & R-Clip

6. 4 x M12 Bolt, washers & Nut

Tools Required

19mm Socket or Ring Spanner, 18mm Socket or Ring Spanner

The heart of the bicycle carrier drawbar mount for the Jayco chassis is the iSi Cross-

Mount. A super strong mount that braces the Jayco drawbar arms and spreads the

load over a wide area. This eliminates pressure hot spots that may otherwise cause

damage to the drawbar. Moreover, the iSi cross-mount clears the hand

brake, jockey wheel and is compatible with most weight distribution

systems and stone guards. For camper deployment, the bicycle carrier

assembly pivots up from the nose of the carrier. The overhead

rotation stops allow the operator to set the position of the carrier

from vertical all the way over to flat.

Jayco Camper Trailers and Caravans

Installation Guide

Table of Contents

Do you have a question about the Jayco Camper and is the answer not in the manual?

Page 1 19mm Socket or Ring Spanner, 18mm Socket or Ring Spanner The heart of the bicycle carrier drawbar mount for the Jayco chassis is the iSi Cross- Mount. A super strong mount that braces the Jayco drawbar arms and spreads the load over a wide area.
Page 2 Cross-Mount Place the Cross-Mount onto drawbar and align foot pads with the drawbar A-arms. 1. The breakaway module may need to be relocated. 2. Front foot pad may be placed over chassis number welded to top of a-arm. Install u-bolts over the foot pads and install a fish plate from underneath.
Page 3 Bicycle Carrier Main Beam Flip the bicycle carrier main beam over the top of the support post and insert a pivot pin through the upper hole in the pivot base and through the upper sleeve on the carrier main beam. Rotate the carrier main beam rearwards until the lower sleeve at the nose of the carrier rests...
Page 4 Insert as you load bicycles back. When done correctly, it’s 10 seconds per bicycle regardless of whether the carrier is on the car or drawbar. iSi - 100% Australian Made – 100% Australian Materials - 100% Aussie Tough...
