BleBox WLIGHTBOX-S-V2 User Manual

wlightboxs
control with μWiFi technology
from any place in the World
WIRELESS LED DIMMER 12-24V DC
ability to control bt voice commands with
Amazon Alexa i Google Home

SAFETY RULES

Do not connect loads with a higher power than allowed.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
Connecting the device to a power supply that does not meet
the quality requirements specified in EN 50081-1, EN 50082-1,
UL508, EN 60950 will invalidate the warranty.

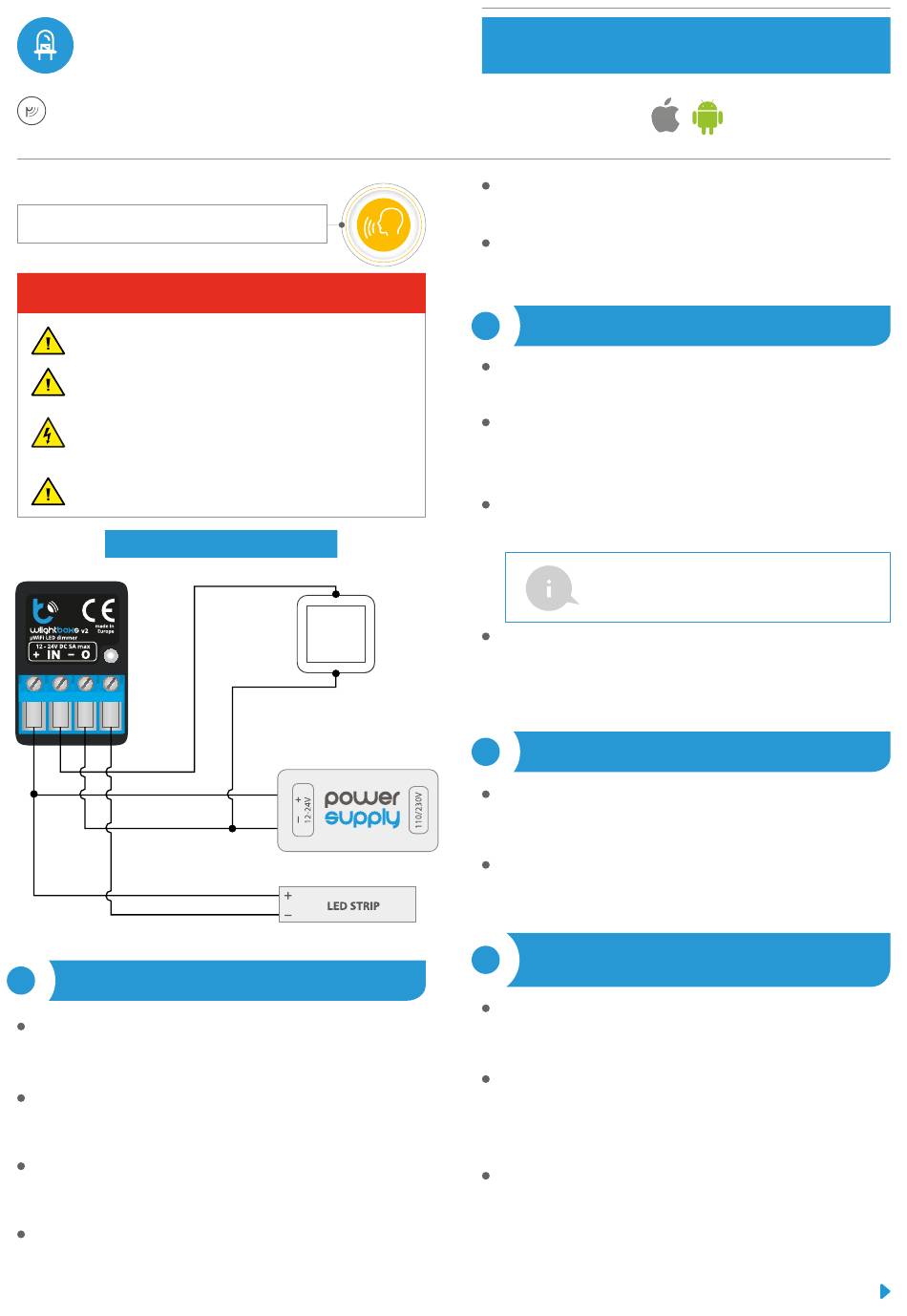

CONNECTION DIAGRAM

1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch off the mains fuse or disconnect the power
cord from the mains socket).
The controller should be installed in a place protected against adverse
environmental conditions, protected from third party access - in the flush
box or inside the enclosure of the controlled device. It is recommended that
the device be mounted in a stable and fixed position.
Familiarize yourself with the diagram and then proceed with the installation
of the controller. Pay special attention to the designation of the controller
connectors. Start by connecting the power wires: (+) (red or black with a
white dotted line) and (-) (black).
Connect the monochromatic LED strip paying attention to the polarity - the
cathode wire "+" (usually red color) should be connected to the "+" connector
of the controller, while the anode wire "-" (usually white color) should be
connected to the O output. The controller also allows to control halogen
bulbs, then the connection polarity of the wires is not important.
v2
button

INSTALLATION

user manual
If you wish to control locally by using a wall push-button, please connect the
monostable push-button according to the diagram. To control only by using
the smartphone or tablet, the connection of the push-button is not required
After making sure that the device is connected in accordance with the
diagram and that there are no metal components near the controller which
may accidentally cause short-circuit, start the device by turning on the power
(turning on the mains fuse or connecting the power cord to the power outlet).
2
Download the free wBox application. If you have an Android mobile device,
you will find the application in the Play Store. For iOS devices the application
is in the App Store.
By using your mobile phone or tablet, connect it to the device wireless
network. To do this, enter to your smartphone or tablet settings, then go
to setting of the WiFi network and find the network name "wLightBoxS-
xxxxxxxxxx" where xxxxxxxxxx is the serial number of the device. Connect
to this network.
Open the wBox application. A device will appear at the top of the screen. To
add it to the application, click on "+" on the right side of the name. To pre-
configure the controller, click on the default device name.
You can also set the configuration using the web
browser of your phone / tablet. After connecting to the
wireless network of the controller, turn on the browser
and go website www.blebox.eu
Test the controller's work by moving the brightness selection scrollbar
several times in the extremes and intermediate positions - the light source
should change its brightness. The control panel also has an additional effect
menu - access to it is achieved by moving-up the screen from the bottom
("More" at the bottom of the screen). In the menu, you can choose predefined
brightness values and set the duration of the brightness change.
3
Go to the configuration ("Settings" icon in the upper right corner of the
screen). In the "Main configuration" section, you can change the name of the
device that is displayed in the wBox application. The "Status LED enabled"
option allows you to turn off the built-in LED on the device.
The "Output mode" option defines the type of the output signal. In the case
of controlling standard LED strips or halogen bulbs the default value should
be left at "Linearized PWM". Some LED lighting fixtures with integrated
electronics require the value to be set to "Linearized and inversed PWM".
4
Once you turn on the controller for the first time, you can proceed to its
further configuration. Being connected to the WiFi network emitted by the
device, in the control panel of the wBox application select the device, then
go to "Settings" (icon at the top-right corner of the screen).
You can change the name of the device that is displayed in the wBox
application. In addition, you can change the name and password of its
generated WiFi network. Remember that changing the network name or
password will disconnect the device immediately after you click the "Save"
button, so re-connect to the device using the newly assigned network name
and password.
You can add the controller to your home WiFi network to control it through
this home network or from anywhere in the World. To do this, in the "Connect"
settings section, select a network name from the list and press "Connect". If
is required, enter the WiFi network password. During the connection of the
controller to your home network, the phone / tablet may disconnected from
the network. In this case, you will need to reconnect your phone / tablet to
the controller network.
