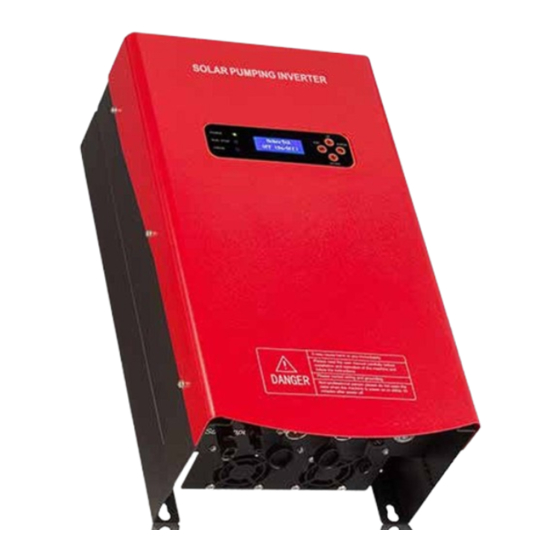

Commodore HPD1500LB User Manual

Solar pumping inverter
Hide thumbs

Advertisement

Quick Links

USER MANUAL
Solar Pumping Inverter
Version
v5.28.20
To ensure your personal and property safety, please read the manual carefully
before use the solar pumping inverter and operate in compliance with instructions.
Date
28/08/2023
Producer
Commodore

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPD1500LB and is the answer not in the manual?

Questions and answers

Summary of Contents for Commodore HPD1500LB

  • Page 1 USER MANUAL Solar Pumping Inverter Version Date Producer v5.28.20 28/08/2023 Commodore To ensure your personal and property safety, please read the manual carefully before use the solar pumping inverter and operate in compliance with instructions.

  • Page 3: Table Of Contents

    SOLAR PUMPING INVERTER I USER MANUAL Contents Safety Definition......................... Instructions & Diagrams....................Diagram..............................................2022 HPD 2200L & 3700 Diagram..................................LCD Display Diagram........................................2022 HPD 200L & 3700 LCD Display Diagram..............................System Settings........................Hybrid Function Guide..................... Hybrid Function..........................................Troubleshooting guide of Solar Pumping Inverter............................Installation...........................
  • Page 4 SAftEy DEfiNitioN...

  • Page 5: Safety Definition

    SOLAR PUMPING INVERTER I USER MANUAL SAfEty DEfiNitioN...
  • Page 6 SAftEy DEfiNitioN SAfEty DEfiNitioN Danger: Serious injuries or even death are potential consequences as a result of unsafe operation. Storage Conditions: Specifications Conditions Temperature -20 °C to +60 °C 5% to 90%, no condensation Store in dry, dust-free conditions. Do not store in the conditions with corrosive gas or liquid. Installation: Danger Do not connect a breaker between the inverter AC output and the pump.
  • Page 7 SOLAR PUMPING INVERTER I USER MANUAL Maintenance: Danger Under any conditions, without professional guidance, do not disassemble the device or touch the internal parts. Do not conduct any maintenance when the device is Power-On Naming Rules: H/L: 2200: HPD/H: HPD/H: Manufacturer Product Code: Solar Pumping Inverter 2200: Rated Power of Inverter 2200W H/L: AC Output Voltage.

  • Page 9: Instructions & Diagrams

    SOLAR PUMPING INVERTER I USER MANUAL iNStRUCtioNS & DiAGRAMS...
  • Page 10 iNStRUCtioNS & DiAGRAMS DiAGRAMS *Front Diagram *Bottom Diagram...
  • Page 11 SOLAR PUMPING INVERTER I USER MANUAL *Back Diagram...
  • Page 12 iNStRUCtioNS & DiAGRAMS Number Description Parameters 128*64pc LCD Screen Display with Cover 16*4 Characters Keyboard Esc, Up, Down, Enter Four Lines ( 3Phase and Ground Line ) AC Output Red/Yellow/Blue/Yellow_Green Colour IP65 Four Line ( 3Phase and Ground Line AC/Battery Input ) Red/Yellow/Blue/Yellow_Green Colour IP65 DC Input...
  • Page 13 SOLAR PUMPING INVERTER I USER MANUAL AC Input/Output Do not connect a breaker between inverter AC output connector with pump. AC Output to 3 Phase Pump Connection: Red Colour yellow Colour Blue Colour yellow_Green Pump-U Phase Pump-V Phase Pump-W Phase Ground Note: If the pump water flow is minimal, please try to change any 2 wire of 3 phase to change the forward or reverse running direction.

  • Page 14: 2022 Hpd 2200L & 3700 Diagram

    iNStRUCtioNS & DiAGRAMS *2022 HPD 2200L & 3700 *Front Diagram...
  • Page 15 SOLAR PUMPING INVERTER I USER MANUAL Number Description Parameters Keyboard Esc, Up, Down, On/Off 12*64px LCD Screen Display with Cover 16*4 Characters Power, Run/Stop, Error Note: Run/Stop LED Indicator Light flashing: Inverter is working on LED Indicator Light off: Inverter stop by On/ff button on: Inverter shutdown for the other reasons Mounting holes...
  • Page 16 iNStRUCtioNS & DiAGRAMS LCD Displays HSPH5500H Enter Into System Setting System Setting Working Time ID: 9792 Setting Menu Working Time Working Time Start - Stop (H:M) On(Working) 0 0 0 0 Hybrid/Stop Hybrid/Stop Time: 0 :0 - 23:59 14:24 07/16/19 Verify the PW Dry-Run Detect Dry-Run Detect...
  • Page 17 SOLAR PUMPING INVERTER I USER MANUAL Please pay attention to the following parameters. Incorrect settings may reduce inverter operation efficiency or cause the inverter to stop operating. Note: AC Pump Phase setting only valid on a 220V inverter. HSPH5500H Enter Into Solar Panel ID: 9792 Setting Menu...
  • Page 18 iNStRUCtioNS & DiAGRAMS Please pay attention to the following parameters. Incorrect settings may reduce inverter operation efficiency or cause the inverter to stop operating. Note: AC Pump Phase setting only valid on a 220V inverter. 2022 HPD 2200L & 3700 HSPH5500H Enter Into Solar Panel...
  • Page 19 SOLAR PUMPING INVERTER I USER MANUAL Main Menu “UP”, “DOWN” Key for Changes Menu “Enter” Key for enter Settings Menu HSPH5500H Line 1: Model ID: 9792 On(Working) Line 2: Serial ID 14:24 07/16/19 Line 3: Show System is Running or Stop (and stop reason) Line 4: System Time Note: System time is important.
  • Page 20 iNStRUCtioNS & DiAGRAMS Verify the Password to Enter the Setting Menu Initial Password: 0000 System Setting Working Time Hybrid/Stop Dry-Run Detect Tank Sensor System Setting 5. Borehole Sensor Time Calibrate “UP”/”Down” to change the Menu Item System PW Set Tank Timer Borehole Timer 10.
  • Page 21 SOLAR PUMPING INVERTER I USER MANUAL Time Calibrate System Time (H:M M/D/Y) System Time Calibrate. 14 : 25 07 / 16 / 19 System Password System Password 0 0 0 0 Password to enter the setting menu. Verify PW Please Time to Delay Enable Disable...
  • Page 22 iNStRUCtioNS & DiAGRAMS Stop Type Inverter Stop Coast: The inverter stop output immediately while the stop command is Coast valid. Decelerate Now: Coast Decelerate: The inverter output frequency decrease by the Deceleration time while the stop command is valid. V/F Curve Linear VF Curve Set Linar...
  • Page 23 SOLAR PUMPING INVERTER I USER MANUAL On/Off Button Startup: Press Down The light on Shut Down: Press Up The light Off Solar Pump inverter single phase or three phase 220v selection setting. Check the solar pump inverter AC output phase whether it is single phase. If yes, continue to the installation. If no, enter the settings Menu to set the inverter AC output phase to single phase 220V.

  • Page 25: System Settings

    SyStEM SEttiNGS...
  • Page 26 SyStEM SEttiNGS Power Up HSPH5500H ID: 9792 Make sure there is power going to the pump drive (solar panels, generator On(Working) or mains power) and the screen is on the main display. If the screen is not on 14:24 07/16/19 the main display, press the "ESC"...
  • Page 27 ‘Parm Setting’ and press Enter. In the ‘LE Current’ setting we need to enter one third of the pump motor rated current (found on the pump motor rating label -or ask Commodore), then press Enter. Press Escape (ESC) to go back to the System Setting Menu.
  • Page 28 1~ or 3~, otherwise please call Commodore. The Commodore 3.7kW 230v motor is an example of a three-phase 230v motor. If you have this motor, set the AC Pump Phase to ‘Three’ and press Enter.
  • Page 29 SOLAR PUMPING INVERTER I USER MANUAL Surface Mounted Pumps – Set MPPT voltage (use password 9589) Normally, this can be left on ‘Automatic MPPT’. In some scenarios with surface mounted pumps where water surging occurs, the ‘PID Automatic’ option can help. This allows us to set the ‘Maximum Power Point Tracking’ target voltage to match the solar array ‘Voltage at maximum power’...

  • Page 31: Hybrid Function Guide

    SOLAR PUMPING INVERTER I USER MANUAL HyBRiD fUNCtioN GUiDE...

  • Page 32: Hybrid Function

    HyBRiD fUNCtioN GUiDE HyBRiD fUNCtioN GUiDE Hybrid Function When the solar is insufficient, when connected AC power will be supplement rest power automatically, and inverter shows hybrid on, when the solar power reaches the required level, the inverter will automatically only take power from solar power, and LCD screen will show hybrid off.
  • Page 33 SOLAR PUMPING INVERTER I USER MANUAL Power On Solar Valid Inverter running with Solar Power AC output Frequency <=25hz? AC output frequency below minimum value, Continue Time Count > 20 seconds AC Input Valid? Standby, inverter Hybrid Mode Run stop running Standby Time Solar power Count >20...
  • Page 34 HyBRiD fUNCtioN GUiDE THIS IS PRIVATE FILE DO NOT PUBLIC TO THIRD PARTY WITHOUT AUTHORIZATION Feedback with Pictures or Videos will be much appreciated. Display Note ‘‘ON(Working)’’ Inverter is working and ac output normal ‘‘OFF(On/Off)’’ On/Off button release ‘‘OFF (SPMCS)’’ Remote SPMCS control to Stop ‘‘OFF (Timer)’’...
  • Page 35 SOLAR PUMPING INVERTER I USER MANUAL Display Note “W:Solar C-Sensor“ Solar current sensor issue warning “W:AC C-Sensor“ AC input current issue warning “W:Capacitor Life“ Replace the capacitor warning “W: U-Ph C-Sensor“ AC output U phase current sensor issue warning “W:V-Ph C-Sensor“ AC output V phase current sensor issue warning “W:W-Ph C-Sensor“...

  • Page 37: Installation

    iNStALLAtioN...
  • Page 38 iNStALLAtioN iNStALLAtioN 1. Solar Pump Inverter Graph 1.1 Power Range 0.75-30kw 0.75-30kw solar pumping inverter box structure Dimensions: Fix Hole L1 Fix Hole Power L (mm) W (mm) H (mm) (mm) W1 (mm) 0.75kw 1.5-15kw 18.5-30kw Accessories: Tank Well DC Input Ac Input AC Output Power...
  • Page 39 SOLAR PUMPING INVERTER I USER MANUAL 1.2 Power Range: 37-75KW Dimensions: Fix Hole L1 Fix Hole Power L (mm) W (mm) H (mm) (mm) W1 (mm) 37-45KW 55-75KW Warning: 37-75KW wires connected to the solar pump inverter directly, it is different from 0.75-30KW.
  • Page 40 Solar Pump Inverter Wires Specifications DC Input (Solar Input) Voltage (Min Wire Model Vmp-Max Current (A) Diameter DC Breaker Voc) (mm²) HPD1500LB 140-450 2.5 mm² HPD1500L 200-450 2.5 mm² HPD2200L 200-450 2.5 mm² HPD3700L 200-500 2 x 2.5 mm²...
  • Page 41 SOLAR PUMPING INVERTER I USER MANUAL AC Output Wire Diameter Model Voltage Current (A) (mm²) HPD1500LB 220V 3 x 2.5 mm² HPD1500L 220V 3 x 2.5 mm² HPD2200L 220V 3 x 2.5 mm² HPD3700L 220V 3 x 4 mm² HPD5500H 220V 3 x 6 mm²...
