Summary of Contents for WEISS MAN301R

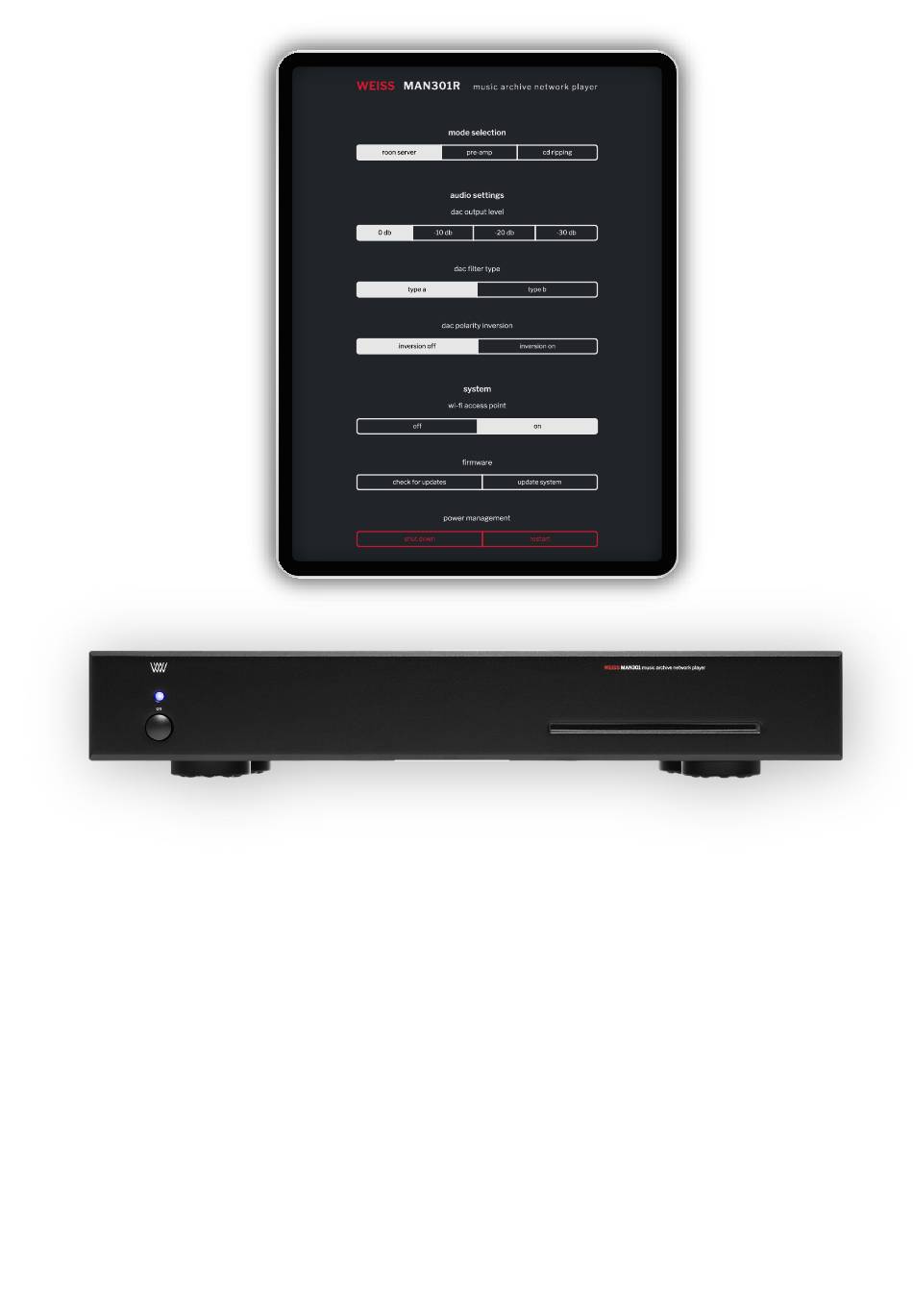

Page 1 WEISS MAN301R user manual...
Page 2: Table Of Contents
A short history of the MAN301R ........
Page 3 Contents 4.3 Main analogue outputs ......... 11 4.3.1 XLR Output .
Page 4: Foreword
We have kept alive the CD ripping feature as well as the the pre-amp mode, which converts the MAN301R into a transparent D/A converter. With all these features in mind, the new MAN301R model is once again at the state of the art for music playback.
Page 5: First Steps
• Analogue audio (if DAC board is present): RCA output, XLR output Ethernet Please make sure to connect the Ethernet port to your router. The MAN301R is operated through a web interface, which requires you to be connected on the same network.
Page 6: Usb 2.0
(SSDs). Supported file systems are FAT32, exFAT, NTFS, and ext2/3/4. Digital audio The MAN301R supports up to two channels of 192kHz/24bit digital audio. No more than one of the digital inputs (XLR, S/PDIF, optical) can be active at the same time. The digital outputs (XLR and S/PDIF) are active at the same time and deliver the same audio content.
Page 7: User Interface
User interface The MAN301R is operated through a web interface, which is optimized for phones, tablets and desk- top computers. Accessing the web interface Pre-requisites In order to operate the web interface, you need a device or a browser which complies with at least...
Page 8: Connecting To The Web Interface
For more information, please visit the Roon website: https://roon.app If your MAN301R has a DAC installed, you will have three audio settings at your disposal in the web in- terface: • DAC output level selection, in 10dB steps •...
Page 9: Pre-Amp Mode
CD ripping mode In CD ripping mode, Roon will be turned off and the MAN301R will enable you to rip CDs from the internal CD drive onto an external USB storage device. To rip a CD, follow these steps: 1.
Page 10 When metadata lookup is set to "on", the MAN301R will attempt to correctly name the folder and the tracks based on the artist, release and track names. Roon metadata lookup If the integrated metadata lookup fails, or if you prefer to use Roon for this purpose, follow these steps: 1.
Page 11: System Section
Power management The MAN301R can be shut down and rebooted from the web interface in- stead of using the physical power button. A confirmation for completing the action will be required.
Page 12: Man301R Technical Data
MAN301R technical data Digital inputs (1) XLR connector, (1) RCA connector, (1) Toslink connector (optical). All inputs accept professional or consumer standard, i.e. accept AES/EBU or S/PDIF signals. Supported sampling frequencies are 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4 kHz or 192 kHz on any of the inputs, except Toslink which handles 96 kHz maximum.
Page 13 MAN301R technical data Power Mains voltage: 100–240 V, the mains voltage is automatically switched. Fuse rating: 4 A slow blow for all mains voltages. Power consumption: 50 W max. Power consumption in standby: 0.5 W max. Measurements (internal DAC option installed)
