Vivax Metrotech D18 Series Installation Manual

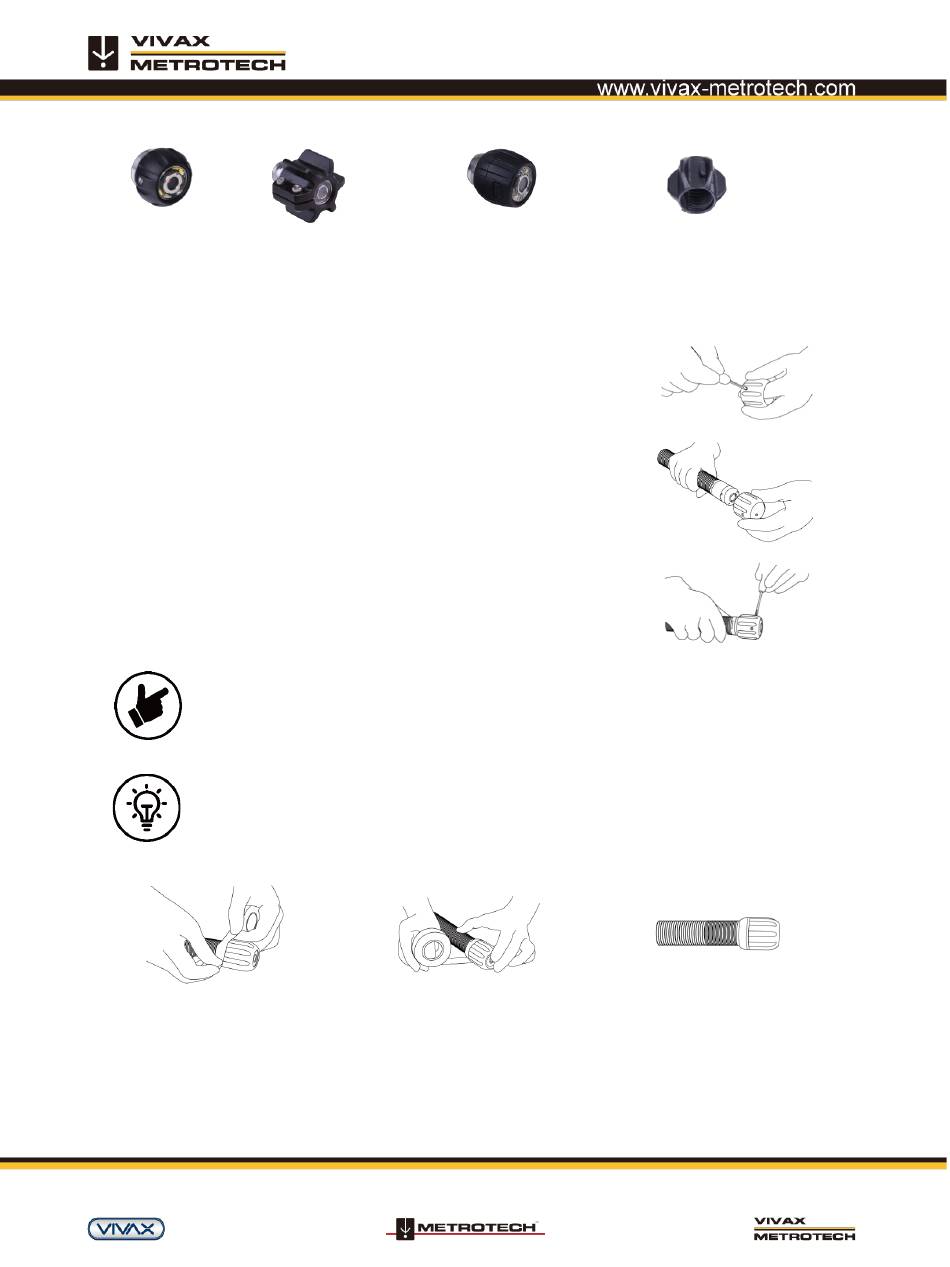

Depending on the model and size, various sizes and types of skids are available for the vCam range.

Standard Skids

Standard Skids, screw in setscrews, D18 series, D26-MX, D34 and D46 series

The standard skids ship installed on the camera head.

Tools Needed: 3mm / 1/8-inch flat screwdriver.

1. Use the screwdriver to back out the three screws so the camera head will

slide unobstructed into the skid.

2. Slide the camera head into the skid until the head is flush with the front.

3. Use the screwdriver to secure the standard skid to the camera head.

NOTE

Do not overtighten the screws. This may result in stripping the screw threads or

damaging the camera housing.

TIP

Apply a layer of electrical tape over the screw holes on the installed skid. This will help

keep debris from filling the screw slot, making removing them easier.

Guide Skid

Clip together Skid

Skid Installation Guide

Spring Skid
