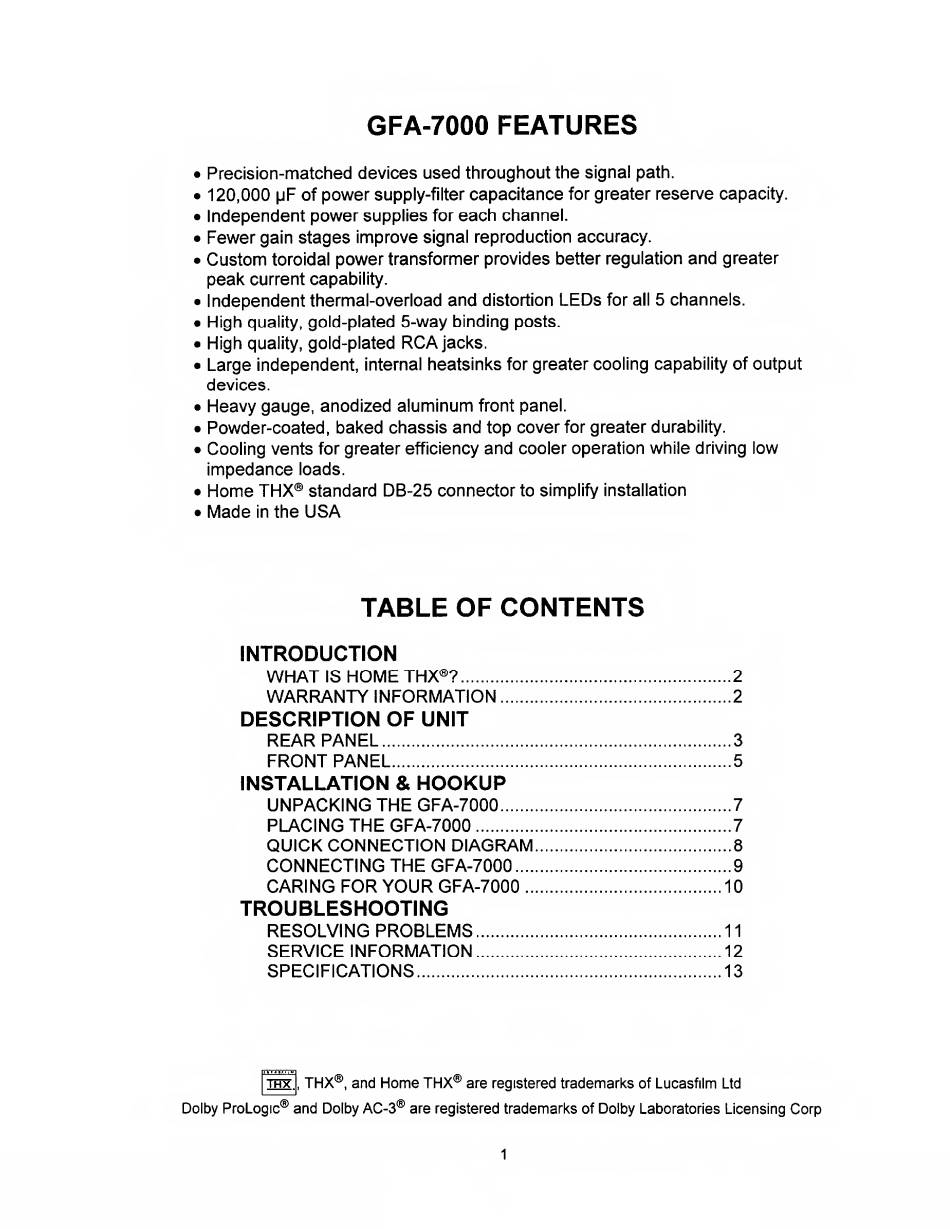

GFA-7000 FEATURES
• Precision-matched devices used throughout the signal path.
• 120,000 pF of power supply-filter capacitance for greater reserve capacity.
• Independent power supplies for each channel.
• Fewer gain stages improve signal reproduction accuracy.
• Custom toroidal power transformer provides better regulation and greater
peak current capability.
• Independent thermal-overload and distortion LEDs for all 5 channels.
• High quality, gold-plated 5-way binding posts.
• High quality, gold-plated RCA jacks.
• Large independent, internal heatsinks for greater cooling capability of output
devices.
• Heavy gauge, anodized aluminum front panel.
• Powder-coated, baked chassis and top cover for greater durability.
• Cooling vents for greater efficiency and cooler operation while driving low
impedance loads.
• Home THX® standard DB-25 connector to simplify installation
• Made in the USA
TABLE OF CONTENTS
INTRODUCTION
WHAT IS HOME THX®?.2
WARRANTY INFORMATION.2
DESCRIPTION OF UNIT
REAR PANEL.3
FRONT PANEL.5
INSTALLATION & HOOKUP
UNPACKING THE GFA-7000.7
PLACING THE GFA-7000.7
QUICK CONNECTION DIAGRAM.8
CONNECTING THE GFA-7000.9
CARING FOR YOUR GFA-7000.10
TROUBLESHOOTING
RESOLVING PROBLEMS.11
SERVICE INFORMATION.12
SPECIFICATIONS.13
TRx
], THX®, and Home THX® are registered trademarks of Lucasfilm Ltd
Dolby ProLogic® and Dolby AC-3® are registered trademarks of Dolby Laboratories Licensing Corp
1
