Summary of Contents for asis APS401T

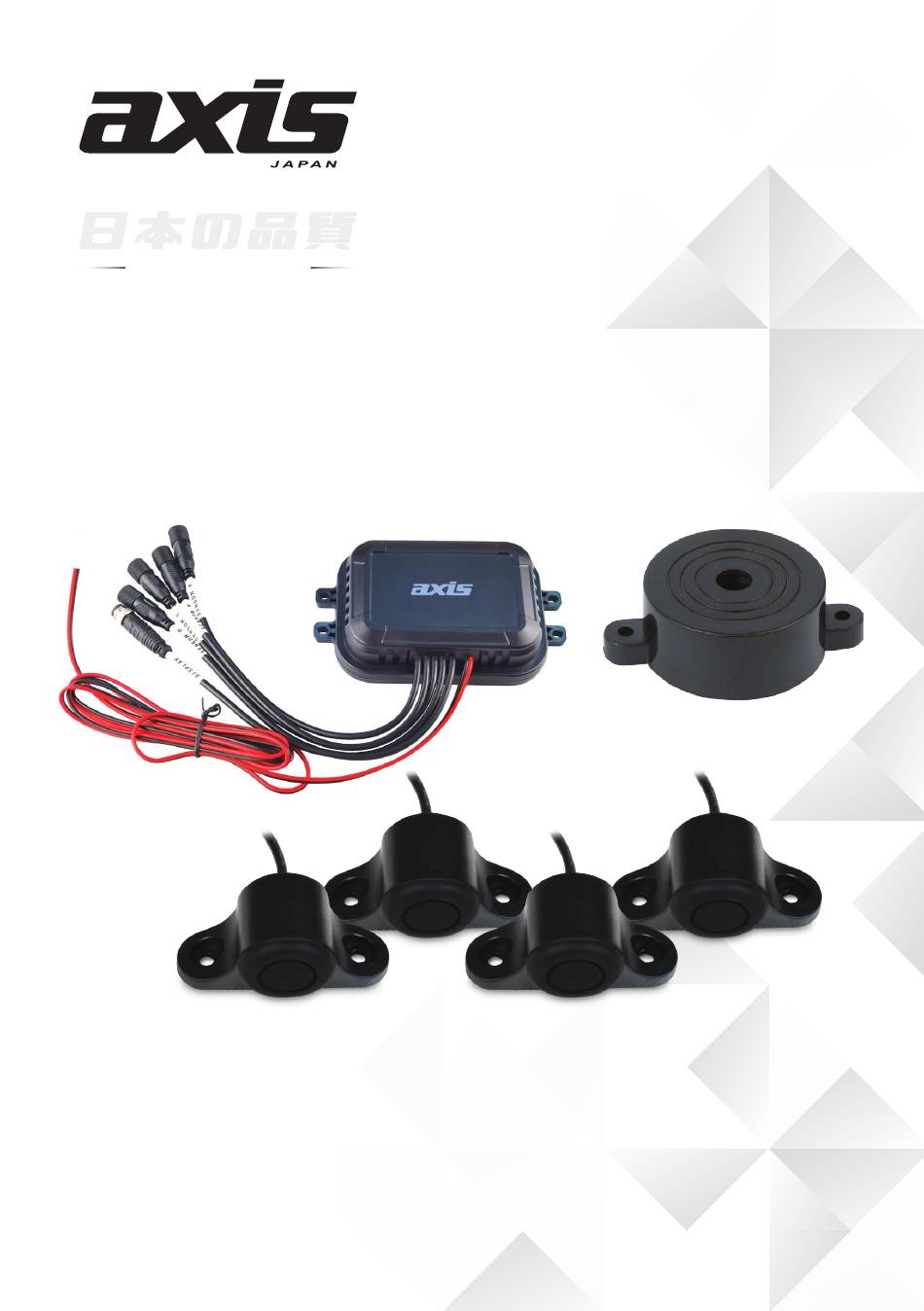

- Page 1 J A P A N Q U A L I T Y APS401T 12/24V Parking Sensor System...
- Page 3 SENSOR INSTALLATION DIAGRAM Fix the plsition of sensors. No obstacle should be detected at 90° from the top view otherwise the system will false alarm. Installation distance dragram Best position for 4 sensors Installation diagram for sensors with direction markings Installation diagram Installation when bumper is sloping to the ground.
- Page 4 Smooth slope Smooth round objects Objects sbsorbing wave,e.g.cotton Objects hard to be detected ADVISED POSITION TO INSTALL THE SENSOR A. Four drill holes A.B.C.D should be in line. B. 0.5~0.8m vertical to the ground. 0.55m is recommended. C. Vertical, tidy surface without metal components is preferred.
- Page 5 SELECT DRILLING POSITION FOR SENSOR A&D A. Choose suitable drilling positions for A and D sensor and mark. For best detection angle, position A & D sensor 1/8 from the edge. SELECT DRILLING POSITION FOR SENSOR B&C A. Measure the distance between sensor A and D.
-
Page 6: Sensor Installation
DRILLING A. Use a small drill bit to locate position B. Drill with the bumper cutter supplied. SENSOR INSTALLATION A. Insert the sensors into the holes and secure. B. Arrange wiring neatly and securely. BUZZER INSTALLATION Buzzer Paste the buzzer on the center console or the rear of the seat. -
Page 7: Control Box Installation
CONTROL BOX INSTALLATION Install the control box on the bottom of the vehicle and fix it by screw. NOTE: Control box is waterproof. 1.5m... -
Page 8: Main Features
PARKING SENSOR SYSTEM This system consists of ultrasonic sensors,a control unit and buzzer This system detects the distance between the vehicle and obstructions by ultrasonic sensors installed at the rear of the vehicle. The distance and direction of the obstruction will be showed by audible buzzer with step-up “BiBi”... -
Page 9: Installation Steps
INSTALLATION STEPS 1. Carefully choose position for sensors 2. Select drilling position for sensor A&D 3. Select drilling position for sensor B&C 4. Locate the position and drill 5. Install the sensors and hide the wires 6. Install the Buzzer 7. - Page 10 NOTES...
-
Page 11: Specifications
SPECIFICATIONS GENERAL - Detection Range: 0.3 ~ 1.5m - Rated Voltage: 12/24V DC - Operating Range: 9-32V DC - Operating Current: 350mA @ 12V BUZZER - Proximity Alert: Audible Tone - Audiable Buzzer: - Buzzer Cable Length: 15.8m CONTROL BOX - Water Resistance IP67 - Power Leads:... -
Page 12: Consumer Warranty
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: APS401T Model Number: Serial Number: Dealer Name: Date of Purchase:...
