Summary of Contents for Kontron Clinic BPC B-101

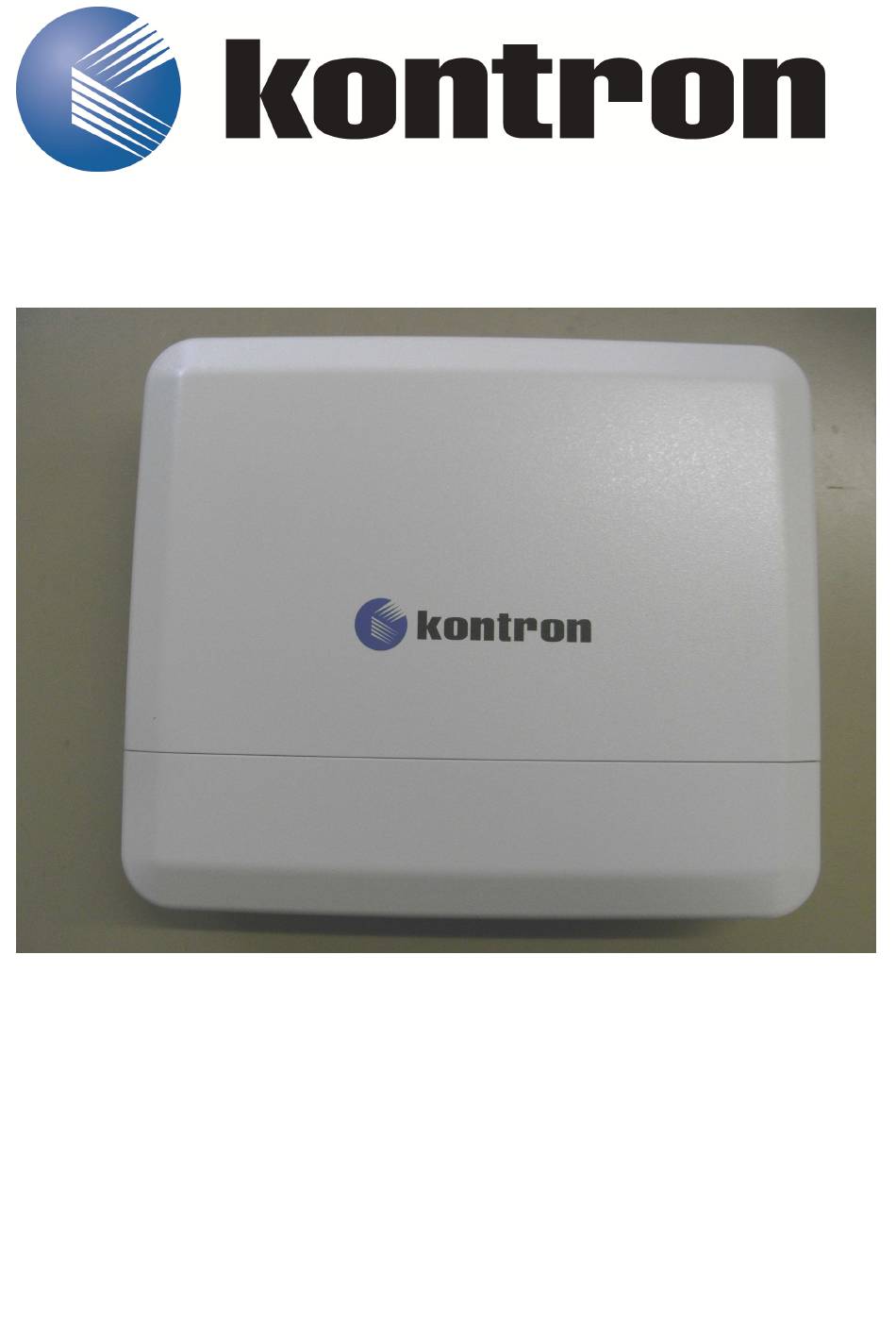

- Page 1 Clinic BPC B-101 Short Manual; Version 1.0 / 29.08.2013 Kontron Europe GmbH...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..................................2 1.1. Symbols used in this Manual ............................3 2. Important Instructions ..............................4 2.1. Note on the Warranty ..............................4 2.2. Exclusion of Accident Liability Obligation ........................4 2.3. Liability Limitation / Exemption from the Warranty Obligation ..................4 3. -
Page 3: Introduction
In cases of doubt, please contact Kontron Europe. This manual is protected by copyright. All rights are reserved by Kontron Europe. Copies of all or part of this manual or translations into a different language may only be made with the prior written consent of Kontron Europe. Kontron... -
Page 4: Symbols Used In This Manual
1.1. Symbols used in this Manual Symbol Meaning This symbol indicates the danger of injury to the user or the risk of damage to the product if the corresponding warning notices are not observed. This symbol indicates that the product or parts thereof may be damaged if the corresponding warning notices are not observed. -
Page 5: Important Instructions
This applies to batteries for example. 2.2. Exclusion of Accident Liability Obligation Kontron Europe shall be exempted from the statutory accident liability obligation if the user fails to observe the safety instructions. -
Page 6: Safety Instructions
The chapter also contains information on approval and interference suppression of your device. Observe the warnings and instructions on the device and in the manual. The Clini BPC-101 system has been built and tested by Kontron Europe and left the company in a perfectly safe condition. -
Page 7: Product Description
The rugged design with an excellent mechanical stability marks the superior qualities of a computer suitable for the operation in harsh industrial environment. The BPC-101 system accommodates a Kontron singleboard. The system is delivered with an internal 2.5" HDD (SATA), and an internal power supply. -
Page 8: Rear Side View
4.2. Rear Side View Figure 2: Rear view of the AWS-TX Legend of figure 2: Mounting Holes (VESA 75/100) Cooling/Airflow rubber feet Testlabel Typlabel Clinic-BPC B-101 - User’s Manual (V1.0) -
Page 9: Mechanical Specifications
4.3. Mechanical Specifications Dimensions for BPC-101 Figure3: Dimensions BPC-101 Clinic-BPC B-101 - User’s Manual (V1.0) -
Page 10: Installed Singleboard
Your BPC-101 system is equipped with the Singleboard B716. More information and technical data can be found in the specification of the installed mainboard. This is available after request. www.kontron.com 4.5. Installed AC Power Supply Unit The BPC-101 system has an integrated AC/DC Power Supply Unit.
