BI-WIRE SPEAKER OUTPUTS O
The GFA-5802 incorporates an additional set of output terminals to facilitate bi-wired speaker systems. In a bi-wired
system, there are two sets of speaker-wires that connect to each speaker (one for the low frequencies and one for the high
frequencies). To be able to bi-wire your speakers, the speakers need to be bi-wirable (having two sets of input terminals,
usually with a metal jumper installed between each pair). The following diagram conveys a basic bi-wired system.

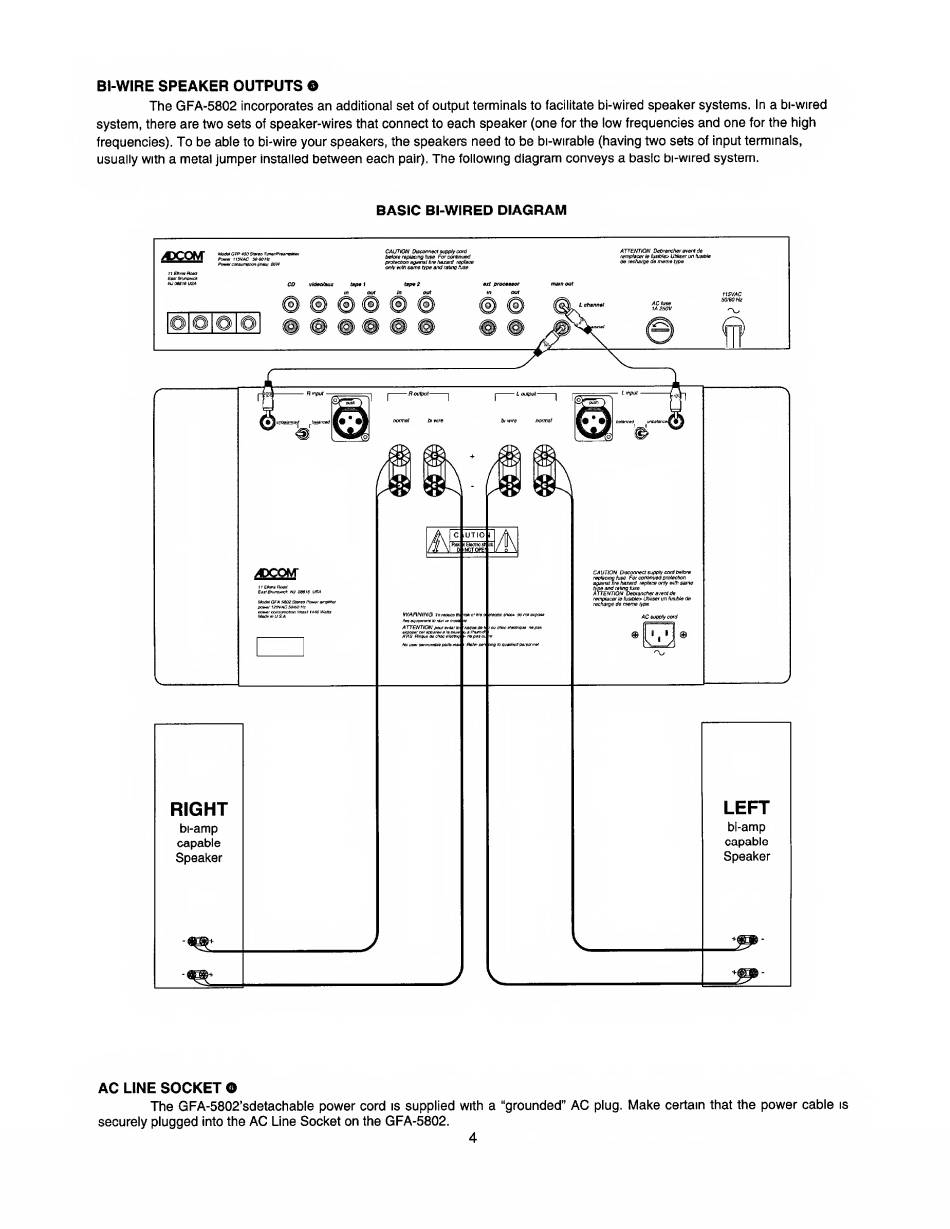

BASIC BI-WIRED DIAGRAM
AC LINE SOCKET
O
The GFA-5802'sdetachable power cord is supplied with a "grounded" AC plug. Make certain that the power cable
securely plugged into the AC Line Socket on the GFA-5802.
4
