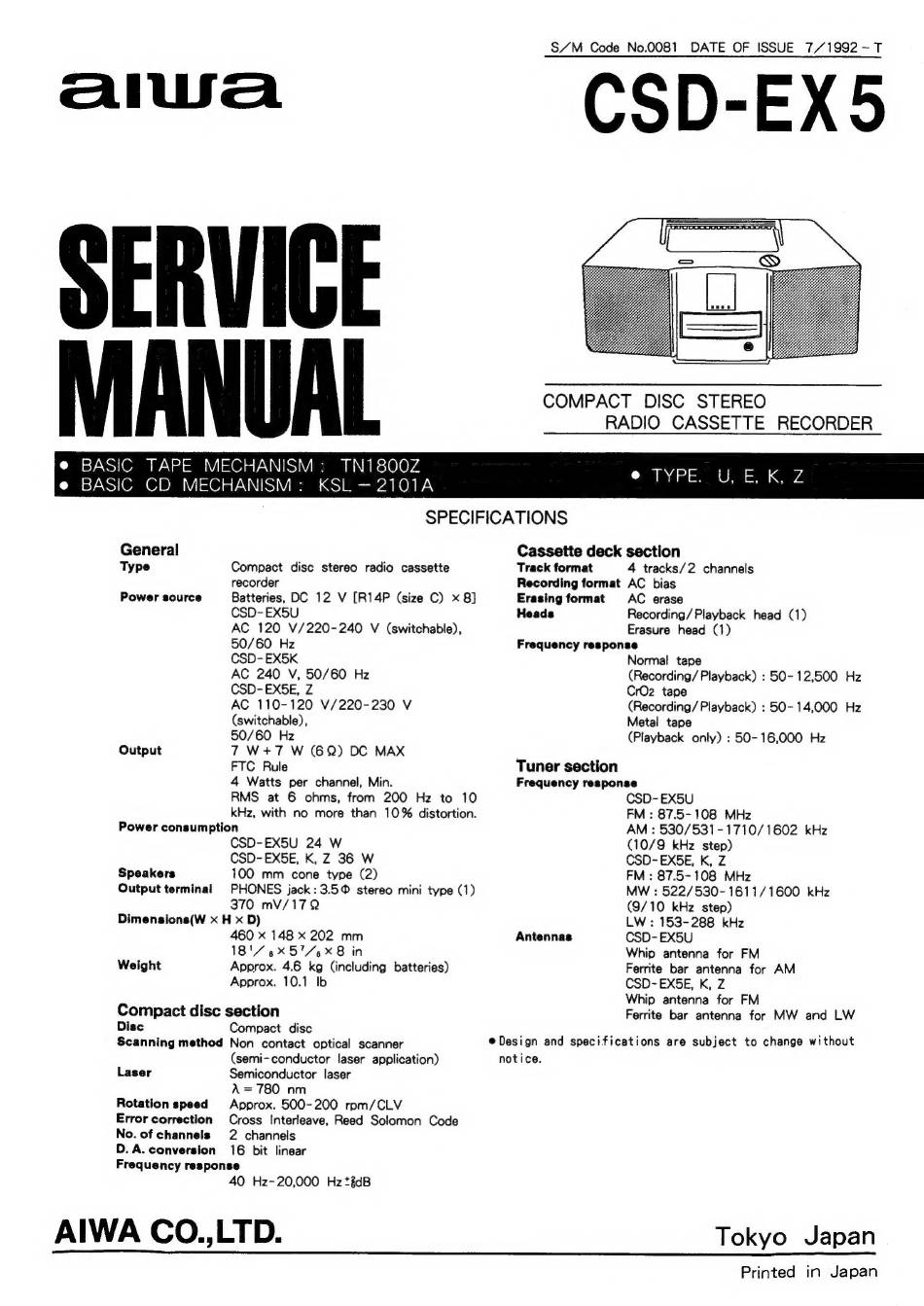

Aiwa CSD-EX5 Service Manual

ana
e BASIC TAPE MECHANISM : TN1800Z
e BASIC CD MECHANISM: KSL-—2101A
S/M Code No.0081 DATE OF ISSUE 7/1992 ~T
SD-EX5
COMPACT DISC STEREO
RADIO CASSETTE RECORDER
e TYPE. UE KZ
SPECIFICATIONS
General Cassette deck section
Type Compact disc stereo radio cassette
Track format 4 tracks/2 channels
recorder
Power source Batteries, DC 12 V [R14P (size C) x8]
CSD- EX5U
AC 120 V/220-240 V (switchable),
50/60 Hz
CSD- EX5K
AC 240 V, 50/60 Hz
CSD- EX5E, Z
AC 110-120 V/220-230 V
(switchable),
50/60 Hz
Output 7W+T7 W (QQ) DC MAX
FTC Rule
4 Watts per channel, Min.
RMS at 6 ohms, from 200 Hz to 10
kHz, with no more than 10% distortion.
Power consumption
CSD-EX5U 24 W
CSD-EX5E, K, Z 36 W
Speakers 100 mm cone type (2)
Output terminal PHONES jack:3.5® stereo mini type (1)
370 mV/17Q
Dimensions(W x H x D)
460 x 148 x 202 mm
18'4 6X57, 8 in
Weight Approx. 4.6 kg (including batteries)
Approx. 10.1. Ib
Compact disc section
Disc Compact disc
Scanning method Non contact optical scanner
(semi-conductor laser application)
Laser Semiconductor laser
A= 780 nm
Rotation speed Approx. 500-200 rpm/CLV
Error correction Cross Interleave, Reed Solomon Code
No. of channels 2 channels
D.A.conversion 16 bit linear
Frequency response
40 Hz-20,000 Hz*édB
AIWA CO.,LTD.
Recording format AC bias
Erasing format AC erase
Heads Recording/ Playback head (1)
Erasure head (1)
Frequency response
Normal tape
(Recording/ Playback) : 50- 12,500 Hz
CrO2 tape
(Recording/ Playback) : 50- 14,000 Hz
Meta! tape
(Playback only) : 50- 16,000 Hz
Tuner section
Frequency response
CSD- EX5U
FM : 87.5- 108 MHz
AM : 530/531-1710/1602 kHz
(10/9 kHz step)
CSD-EX5E, K, Z
FM : 87.5- 108 MHz
MW : 522/530- 1611/1600 kHz
(9/10 kHz step)
LW : 153-288 kHz
Antennas CSD- EX5U
Whip antenna for FM
Ferrite bar antenna for AM
CSD-EX5E, K, Z
Whip antenna for FM
Ferrite bar antenna for MW and LW
@ Design and specifications are subject to change without
notice.
Tokyo Japan
Printed in Japan
