Quick Installation Guide
Smart Managed Media Converter
6003GX/6003GX-POE
www.avcomm.us
・Overview
6003GX/6003GX-PoE are industrial L2 smart managed media
converter. 6003GX provides 3-port full gigabit Ethernet
including 2-port Gigabit RJ45 and 1-port 100/1000BaseSFP.
6003GX-PoE provides 3-port full gigabit Ethernet including 2-
port Gigabit RJ45(1*PoE) and 1-port 100/1000BaseSFP.
Media Converter with lite management – SSH/TELNET. It
support IEEE 802.3ah ethernet OAM, link fault pass-through,
alarm contact (alarm relay) and PoE (IEEE802.3 af/at).
Model Name
6003GX
User Port
1
10/100/1000 BaseT(X)
Manage Port
1
10/100/1000BaseT(X)
100/1000BaseSFP
1
PoE
-
(30W)
AVCOMM Technologies, Inc
・Package Checklist
•
1 x Product Unit
•
1 x Silica gel
•
1 x Quick Installation Guide
•
4x Foot pad
•
4 x Screw (M3x5L FLAT head for wall mount)
•
1 x Cable tie
•
2 x Wall mounting bracket

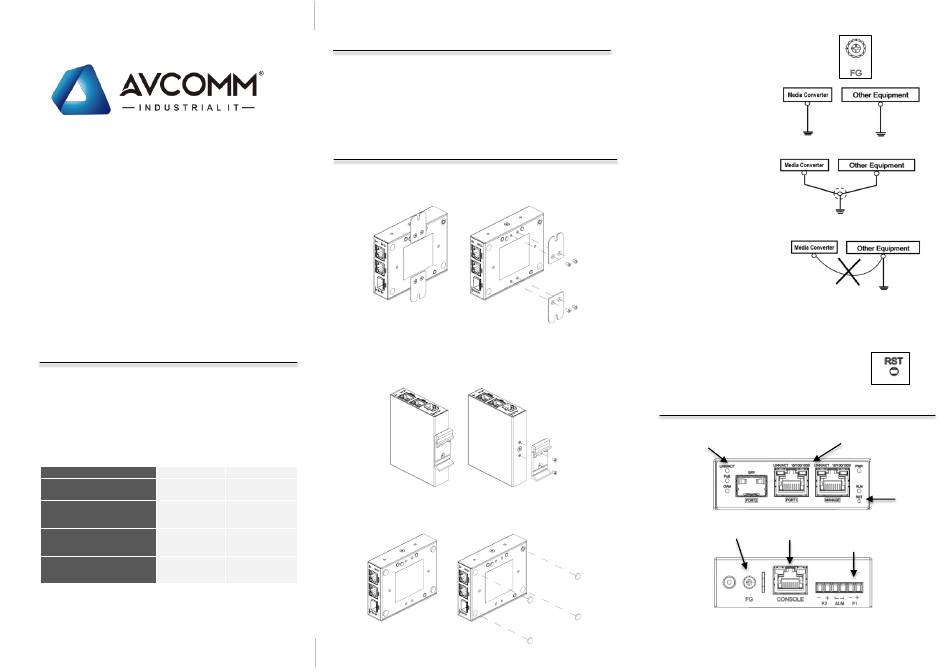

・Installation
Wall mounting
Align with the wall-mount plates at the bottom of media converter. Then
screw the wall-mount plate with the plates and screws.
Din Rail Mounting
Two wall mounting plates are installed at the left and right side of the
switch. Use the two hook holes at the corners of each wall mounting
plate or the middle hole to hang the switch on the wall them then screw
tightly.
6003GX-POE
1
Foot Pad
Align with the foot pad at the corner of bottom side of media converter.
1
Then attach the foot pad on the media converter.
1
✓
Grounding
Grounding screw is located at the rear side
of media converter. Please check carefully
the wiring ensure the FG connection.
1. Exclusive Grounding (Best)
2. Common Grounding (OK)
3. Common Grounding (Incorrect)
Power Connecting
The media converter can be powered from redundant power. For
Non-PoE model, wire the DC12-48V power supply. For PoE model,
wire the DC54V power supply.
Reboot
To reboot the media converter, press RESET button
using a pin.
・Appearance
System LED
Front View
• Power
• Link/Act
• Alarm
• POE
• OAM
Power Connector
Grounding
Console port
• Dual VDC power input 12-
48VDC ( 54VDC for POE)
Rear View
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
3-port Full Gigabit Ethernet
• 2-port 10/100/1000M RJ45
• 1-port 100/1000M SFP
Reset
