Marsh Industries MAHLA Installation Guide
This alarm must be installed and maintained by
a suitably qualified electrician in accordance
with current legislation.
Please read this complete document before
installation or maintenance.

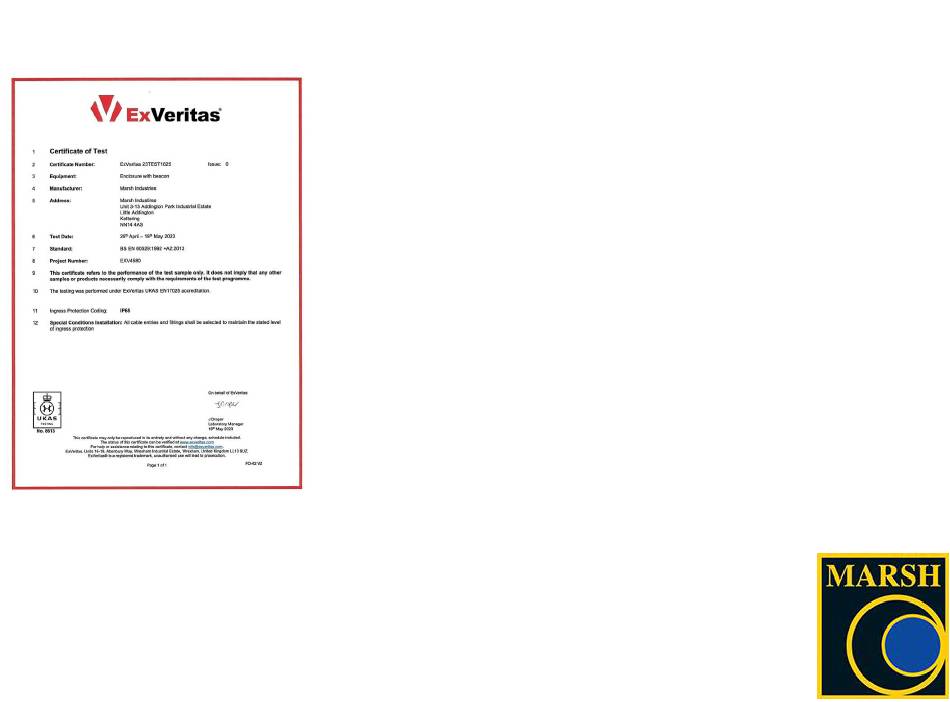

The alarm has been tested to IP65 and must
be connected to a suitably protected and fused
circuit to protect from electrical shock.
The panel access key should always be
removed when not in use for maintenance.
Please ensure that this document remains with
the maintainer and householder as appropriate.
For service and support, contact Marsh
Industries on 01933 654582.
