BioLAB BTST-102 Operation Manual

Stability test chamber
Hide thumbs

Advertisement

Quick Links

Download this manual
BTST-102
Stability Test Chamber
Thank you very much for Choosing Biolab products. Please read the "Operating Instructions" and "Warranty"
before operating this unit to assure proper operation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTST-102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BioLAB BTST-102

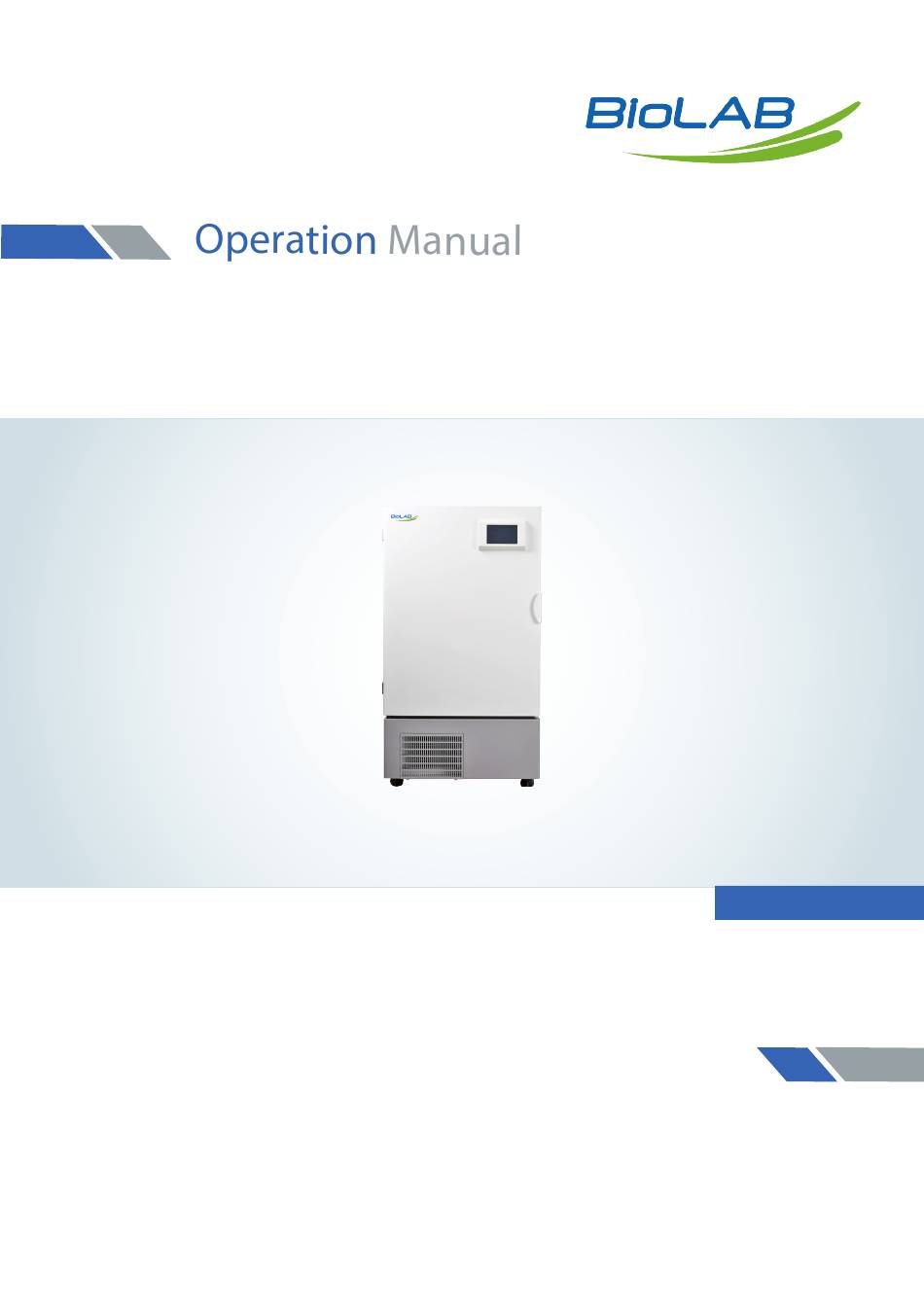

  • Page 1 BTST-102 Stability Test Chamber Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.

  • Page 2: Table Of Contents

    Stability Test Chamber BTST-102 Index 1. Safety Tips..............................05 2. Operation Precaution..........................06 3. Structure..............................08 4. Control Panel............................10 5. Introduction..............................12 6. Parameters..............................13 7. Failure Reason and Countermeasures.....................19 8. Warranty Commitment.........................27 www.biolabscientific.com...
  • Page 3 Biolab is not liable for any damage of the instrument caused by the fact that users do not comply with the “Environment for the Use of the Instrument” described in the Technical Instruction.
  • Page 4 Stability Test Chamber BTST-102 Signs on the instrument There are some warnings and precautions on the instrument, shown as follows: Warning Attention Please do not open the door in high- temperature and high-humidity Easily hurt operation. If the door is opened in the...

  • Page 5: Safety Tips

    Stability Test Chamber BTST-102 Safety tips Please do not use the instrument outdoors. The instrument should be installed on the solid ground. If the ground is not solid, or the installation site is unsuitable, the instrument is likely to overturn, thus hurting operators and other people.

  • Page 6: Operation Precaution

    Stability Test Chamber BTST-102 Operating Precautions 1. The instrument should be installed on level and solid ground. 2. The instrument should not be installed in areas exposed to direct sunshine or heat source. 3. Keep smooth air flow indoor 4. Before the start of operation, please make sure that the water tank is filled with purified water (tap water is forbidden).
  • Page 7 Stability Test Chamber BTST-102 Simplified operating instruction for BTST-102, BTST-103, BTST-104 constant temperature & humidity Delivery setting: °C——37°C %——75% Please comply with the following procedures: 1. Please switch on electricity leakage protector. 2. Set the over-temperature protector. The temperature should be 20°C higher than the set temperature.

  • Page 8: Structure

    Stability Test Chamber BTST-102 Structure www.biolabscientific.com...
  • Page 9 Stability Test Chamber BTST-102 1. Operating panel: setting and display value. 2. Leakage protector: the main switch will cut off the power in the case of over-current or short circuit. 3. RS232 interface: used for connecting computer test and printer.

  • Page 10: Control Panel

    Stability Test Chamber BTST-102 Control panel 1. Liquid display area The area is used for the display of temperature and humidity measuring values, and also the corresponding setting process; When “ALARM” indicator lights up, the alarm content will be displayed in the area in scroll.
  • Page 11 Stability Test Chamber BTST-102 The indicator lights up, which means that the system enters the program mode. 8. “ALARM” indicator When the instrument breaks down, the indicator lights up and reminds users that the instrument is in abnormal status. After all problems are eliminated, the indicator goes off.

  • Page 12: Introduction

    Stability Test Chamber BTST-102 22. “ ” key and indicator Power key: when the indicator lights up, the system is running or standby. When the indicator goes off, the system is stopped. Introduction Medicine stability testing chamber application scope: Drug stability test box is used for pharmacy, medicine, biotechnology, food industry, electronics industry and life science etc.

  • Page 13: Parameters

    Stability Test Chamber BTST-102 Parameters Product model BTST-102 BTST-103 BTST-104 Convection way Compulsory convection Control way Balanced Temperature No illumination -15°C~+85°C With illumination 10°C~85°C control scope Humidity control 20~98%RH scope Temperature resolution Temperature ±0.1°C fluctuation Temperature ±1.0°C (65°C) evenness Humidity Within ±1.5% (65°C)
  • Page 14 Stability Test Chamber BTST-102 Performance parameter test under the condition of zero load: environmental temperature is 20°C; environmental humidity is 50%RH. Product dimension and parameters are subject to change without prior notice. Set Temperature and Humidity: What are shown in the following table are the basic programs for setting temperature and humidity.
  • Page 15 Stability Test Chamber BTST-102 program mode Press the MODE MODE Program 1———Program 6 Program 1 Operating 1 Press the ENTER (0 stands for non-operation 1 stands for ENTER operation) Setting: 037.0°C075.0%RH For example: Press the key to move the value rightward...
  • Page 16 Stability Test Chamber BTST-102 Program 2—Set control temperature, humidity, and startup time at will. After the setting time comes, startup program will work. Time setting scope: 1min~99 days 23 hours 59 min (Program 2) Program mode: Program 3~5: set temperature, humidity, time, and repeated times at will for sequential program operation.
  • Page 17 Stability Test Chamber BTST-102 Operating method: Due to the difference between the set temperature and surrounding environment, there will be dew formation on the inner side of the incubator, at the bottom of the incubator, and on the edge of the seal ring.
  • Page 18 Stability Test Chamber BTST-102 4. Surrounding environment with high humidity. Start defrosting operation (compulsory defrosting operation): In operation or operation stop, please press [Manual Drain] key (compulsory water drain) to turn on the switch. Press the (Defrost) key to start compulsory defrosting operation at the set temperature, no matter ordinary mode or program mode.

  • Page 19: Failure Reason And Countermeasures

    Stability Test Chamber BTST-102 Failure Reason and Countermeasures Safety—Alarm function The product is designed with the following safety function and alarm function. In the case of abnormalities, please refer to Failure Reason and Countermeasures for proper treatment. Safety function: Safety device...
  • Page 20 Stability Test Chamber BTST-102 Alarm function: In the light of the importance of alarm reasons, there are two processing ways, namely continuous implementation operation and stop operation. In addition, restart of circuit is also programmed and inserted according to the lost of control of CPU checked by self-diagnosis function.
  • Page 21 Stability Test Chamber BTST-102 Alarm display and action Alarm name Reason for alarm content Temperature The status of the measured Indicator stays lit upper limit humidity reaching 100% or below malfunction Alarm display 0% lasts above 15 minutes. alarm Over-...
  • Page 22 Stability Test Chamber BTST-102 Countermeasures: Phenomenon Reason Countermeasures Switch on Electricity leakage the leakage breaker, but Stop the operation immediately, and the switch contact the shop where you bought it returns to the or the maintenance center nearby Current overload position of OFF.
  • Page 23 Stability Test Chamber BTST-102 The set temperature is Please confirm the set temperature incorrect The refrigerator does not work. Gas leakage refrigeration Fans of the refrigerator Stop the operation immediately, and break down. contact the shop where you bought it...
  • Page 24 Stability Test Chamber BTST-102 Phenomenon Reason Countermeasures There are too many samples/vessels in the incubator. And the To improve incubator convection, please heat in the incubator reduce the quantity of samples/vessels. can not go through convection. The set temperature of the temperature Be unable to regulator is between -15°C and 85°C.
  • Page 25 Stability Test Chamber BTST-102 The humidity setting is at the status of Please set the humidity. 0.0%RH Switch on the (Manual Drain) key (be in the Please do not turn off the (Manual Be unable to status of compulsory Drain) key...
  • Page 26 Stability Test Chamber BTST-102 Phenomenon Reason Countermeasures Bending of drainage soft tube. Please configure the tube properly Water can not in case of blocking. Front end of drainage flow from the soft tube is dipped. spillway of Drainage tube filter...

  • Page 27: Warranty Commitment

    • The Company is entitled to change the performance of the instrument in real time, without any prior notice. • In the case of any problem with your instrument, please contact Biolab engineers, and you will receive satisfactory services. www.biolabscientific.com...
  • Page 28 BIOLAB SCIENTIFIC LIMITED 91 Trafford Crescent, Markham, Ontario, L3R 7J3, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...

This manual is also suitable for:

Btst-103Btst-104
