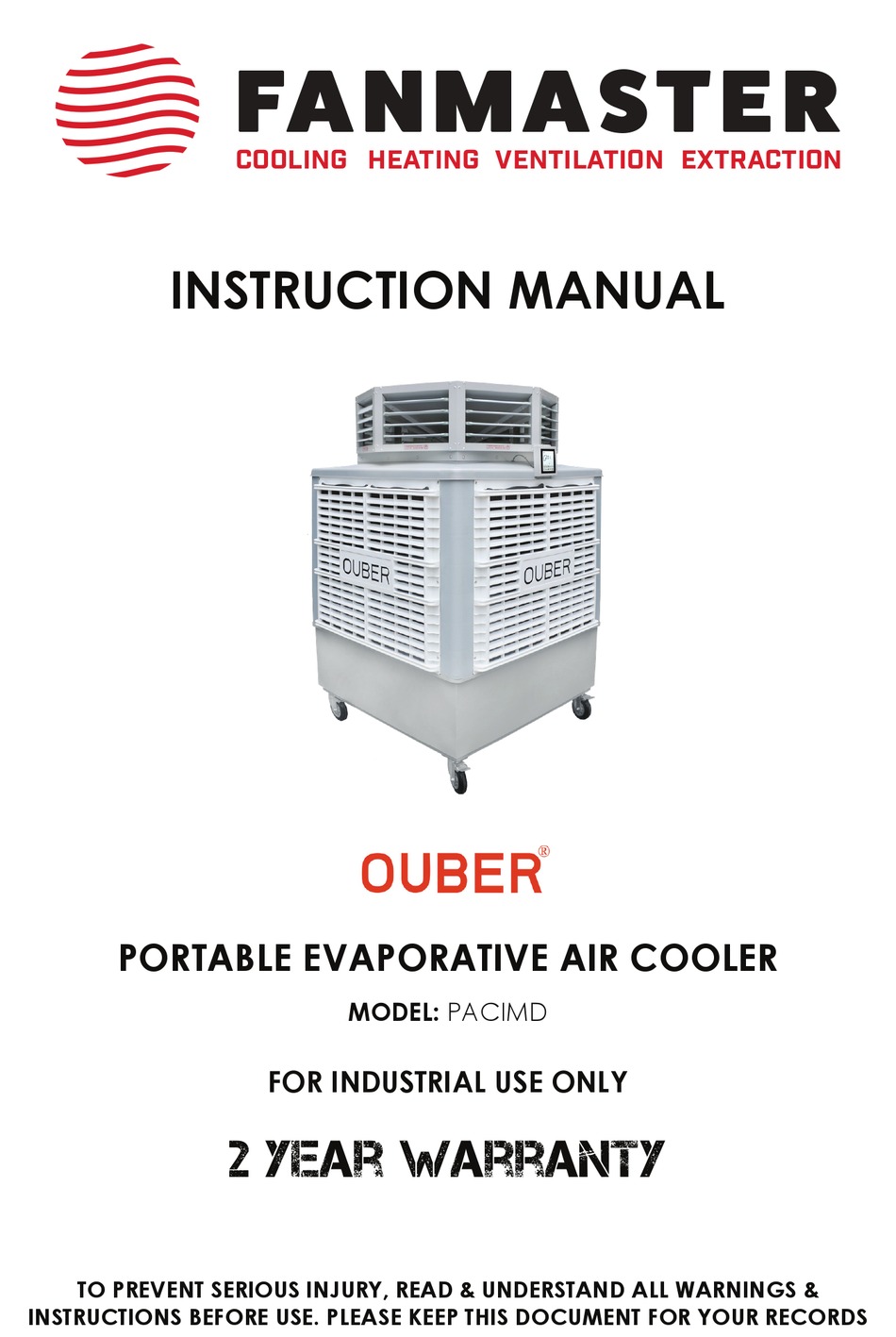

- Page 1 FA NM A ST E R cooling heating ventilation extraction INSTRUCTION MANUAL PORTABLE EVAPORATIVE AIR COOLER MODEL: PACIMD FOR INDUSTRIAL USE ONLY 2 year warranty TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS & INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS...
-
Page 2: For Your Information
FOR YOUR INFORMATION Thank you for purchasing an Ouber by Fanmaster evaporative air cooler. Please read this instruction manual carefully before using this appliance. Disclaimer: Fanmaster reserves the right to make alterations to specifications, quantities, dimensions, for production or other reasons, subsequent to publication. - Page 3 ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT, TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED. • IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A SERVICE AGENT OR A QUALIFIED PERSONS. •...
-
Page 4: Product Description And Specifications
2. PRODUCT DESCRIPTION & SPECIFICATIONS PRODUCT DESCRIPTION Industrial Portable Evaporative Air Cooler. Utilises the natural prcoess of using evaporation to the cool the air. Uses a low wattage water pump to circulate water from the water tank on to three cooling pads, which in turn becomes very wet. The fan draws air from outside the unit through the damped pads. -
Page 5: Getting To Know Your Appliance
3. GETTING TO KNOW YOUR APPLIANCE PACKING LIST DESCRIPTION AIR COOLER REMOTE CONTROL GARDEN HOSE CONNECTOR INSTRUCTION MANUAL... - Page 6 3. GETTING TO KNOW YOUR APPLIANCE - CONT...
- Page 7 4. OPERATING INSTRUCTIONS Remove the appliance from the carton. If the appliance is damaged, please contact Fanmaster or where you purchased the appliance from. • Position the appliance so it stands upright & is on a firm surface. • Fill the tank with clean water (bore or hard water is not recommended) via the manual inlet or connect to the water inlet valve for continuous water supply.
-
Page 8: Cleaning, Maintenance And Storage
Bore or hard water is not recommended for this appliance. If the replacement of the power cord or plug is necessary, this has to be done by Fanmaster or agent or qualified persons as authorised by Fanmaster in order to avoid a safety hazard. -
Page 9: Cleaning The Water Tank
5. CLEANING, MAINTENANCE & STORAGE CLEANING THE WATER TANK 1. Open the water outlet valve (on the bottom of the appliance) to drain out all the water from the tank. 2. Remove the screws from the air inlet louver then remove louver. 3. - Page 10 6. TROUBLESHOOTING - CONTINUED ISSUE CAUSES SOLUTION 1. No Power Connection 1. Check power supply Unable to turn 2. Switch Failure 2. Replace switch 3. Phase Failure 3. Check phase 4. Low voltage 4. Check voltage 1. Fan blade dirty, deformed or 1.
-
Page 11: Wiring Diagram
7. WIRING DIAGRAM... -
Page 12: Warranty
To make a claim under the warranty, take the product (with proof of purchase) to the store where you purchased the product or go to https://www.fanmaster.com.au/support. This warranty is given by Fanmaster Pty Ltd ABN: 45 353 934 457 Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232 P: 1300 900 345 E: support@fanmaster.com.au... -
