DX Engineering DXE-DWK Manual

Single-band low power dipole kit
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

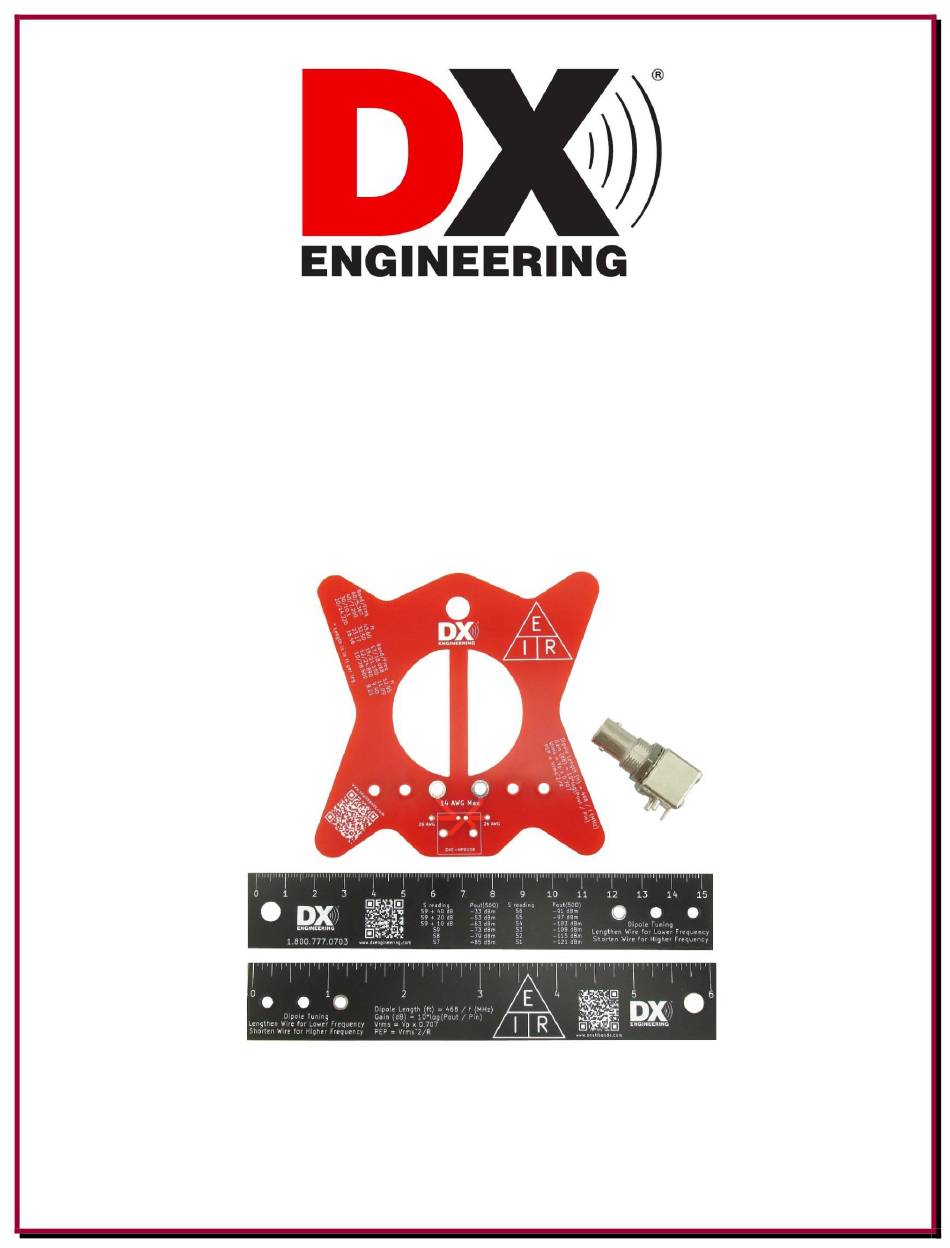

Single-Band Low Power
Dipole Kit
DXE-DWK One Dipole Kit
DXE-DWK-10 Ten Dipole Kits
DXE-DWK-25 Twenty-Five Dipole Kits
DXE-DWK-INS Rev 1
 DX Engineering 2023
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
E-mail: DXEngineering@DXEngineering.com
Page - 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXE-DWK and is the answer not in the manual?

Questions and answers

Summary of Contents for DX Engineering DXE-DWK

  • Page 1 Single-Band Low Power Dipole Kit DXE-DWK One Dipole Kit DXE-DWK-10 Ten Dipole Kits DXE-DWK-25 Twenty-Five Dipole Kits DXE-DWK-INS Rev 1                    DX Engineering 2023 1200 Southeast Ave.

  • Page 2: Tools Required

    Custom Cable Builder at https://www.dxengineering.com/cableconfigurator/cabletype Wire for the dipole elements. Wire size - 14 AWG or smaller. DX Engineering has wire available in various sizes and lengths: https://www.dxengineering.com/search/part-type/wire?fr=part- type&SortBy=BestKeywordMatch&SortOrder=Ascending&keyword=dxe-viz Lightweight Rope for center support and end insulators.
  • Page 3 Single-Band Dipole Wire Lengths Use this chart to determine the dipole wire lengths that cover the desired band and resonant points. Both the center insulator and end insulators have the formula for determining the wire overall length for a dipole. Dipole length (ft) = 468/f (MHz). When cutting dipole element wire, add about 4 to 8 inches on each wire end to allow some extra wire for tuning as described on page 6.
  • Page 4 2. Turn the board over and solder the four pins for the right angle BNC connector as shown. 3. Once the dipole wires lengths are determined, trim the insulation from one end of one leg of the dipole element wire going into the center insulator about 1/4 inch. Insert the trimmed wire dipole leg into the center insulator in a serpentine route as shown with a small amount of slack.

  • Page 5: Safety Considerations

    Photo below shows the DXE-DWK dipole ready to go with element wires attached and wound on the center insulator for travel and storage. Safety Considerations WARNING! INSTALLATION OF ANY ANTENNA NEAR POWER LINES IS DANGEROUS Warning: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits.

  • Page 6: Mounting Considerations

    Mounting Considerations When planning the location of your antenna, consideration should be given to the height, location of suitable support structures and feedline positioning and length. Generally speaking, these antennas should be mounted as high as possible for best performance. Antenna height will affect the exact resonance point, radiation pattern, and takeoff angle.

  • Page 7: Maintenance

     Verify the coaxial cable is in good condition and there are no cuts in the jacket which would allow moisture to enter the coax cable. The Dipole Kit is also available in packages of 10 kits (DXE-DWK-10) and 25 kits (DXE-DWK-25). Ideal for a club project.

  • Page 8: Technical Support

    Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...

This manual is also suitable for:

Dxe-dwk-10Dxe-dwk-25
