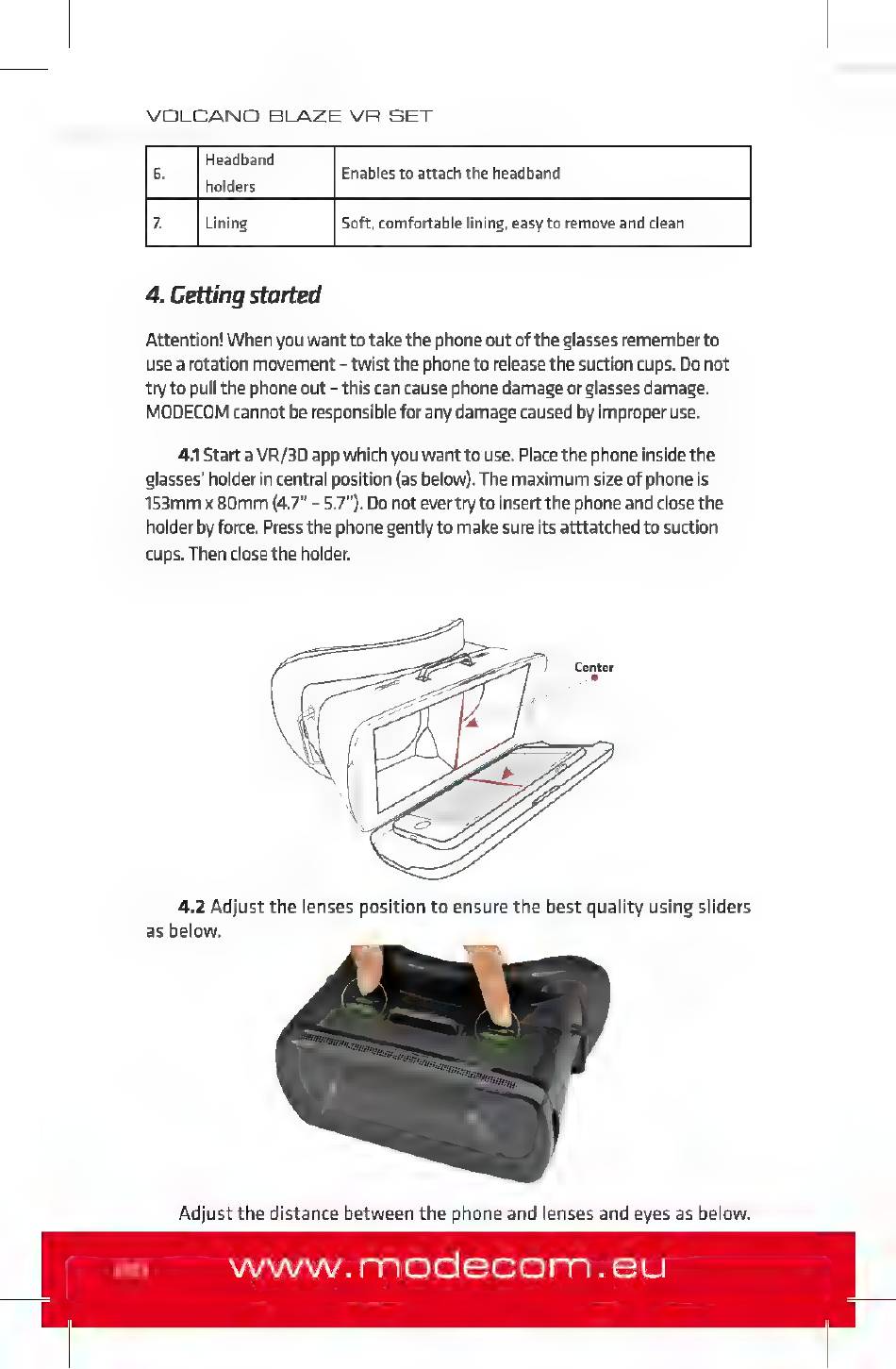

4, Getting Started - Modecom VOLCANO BLAZE VR SET Quick Start Manual

VOLCANO BLAZE VR SET
Headband
6. Enables to attach the headband
holders
7 Lining Soft, comfortable lining, easy to remove and clean
4, Getting started
Attention! When you want to take the phone out of the glasses remember to
use a rotation movement - twist the phone to release the suction cups. Do not
try to pull the phone out - this can cause phone damage or glasses damage.
MODECOM cannot be responsible for any damage caused by improper use.
4.1 Start a VR/3D app which you want to use. Place the phone inside the
glasses' holder in central position (as below). The maximum size of phone is
153mm x 80mm (4.7" - 5.7"). Do not ever try to insert the phone and close the
holder by force. Press the phone gently to make sure its atttatched to suction
cups. Then close the holder.
4.2 Adjust the lenses position to ensure the best quality using sliders
as below.
Adjust the distance between the phone and lenses and eyes as below.
