INSTRUCTION MANUAL

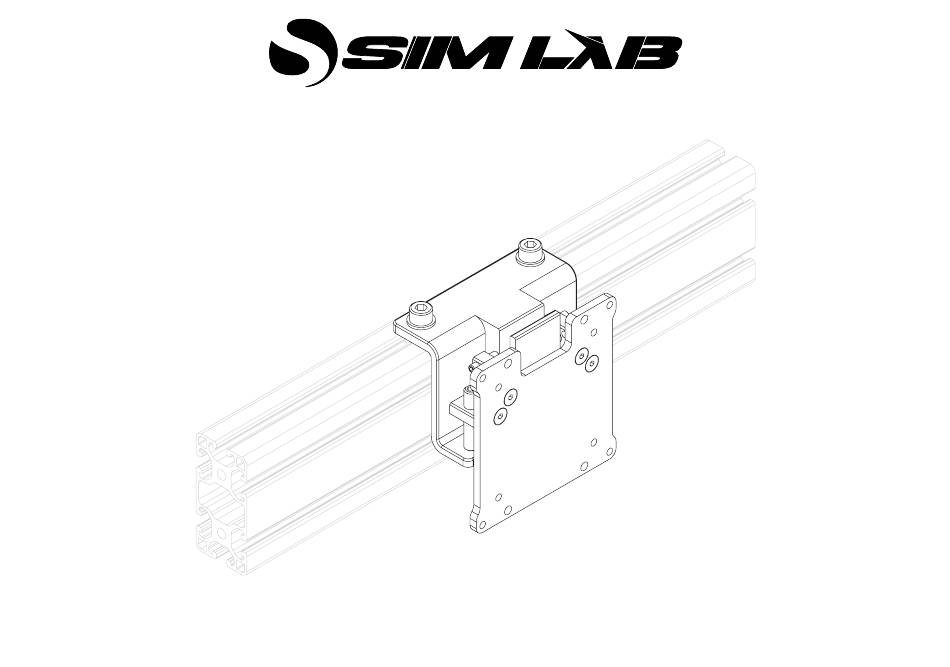

VARIO™ VESA TRIPLE ADAPTER SET
VERSION 2.2
Last updated: 09-10-2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the VARIO VESA TRIPLE ADAPTER KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sim-Lab VARIO VESA TRIPLE ADAPTER KIT

  • Page 1 INSTRUCTION MANUAL VARIO™ VESA TRIPLE ADAPTER SET VERSION 2.2 Last updated: 09-10-2023...
  • Page 2: Before You Start

    BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 11) and make sure all the parts are delivered.
  • Page 3 Vario VESA M8 X 40 M8 X 16 Washer M8 Slot-Nut M8 Holder (A9) 24MM 0.9” Measurements given are just reference measurements to allow for easy installation and offer a baseline. Install A9 only after the Vario VESA holder has been mounted to a profile. 3 10...
  • Page 4 Vario VESA Vario VESA Vario VESA M5 X 20 Plate Pin Holder 4 10...
  • Page 5 M8 X 40 M5 X 20 (A9) (A13) 36MM 1.4” 20MM or 0.8” Measurements given are just reference measurements to allow for easy installation and offer a baseline. 5 10...
  • Page 6 M4 X 10 (A8) 6 10...
  • Page 7 Drop the pin (A4) into the slot and carefully angle the monitor downwards to rest on the end of part A12. Now you can make all neccesary adjustments. 7 10...
  • Page 8 The highlighted parts are responsible for the adjustments shown. All adjustments are done by simply threading HEIGHT/ROTATION an adjustment screw in/out depending on what you want to achieve. TILT SIDEWAYS 8 10...
  • Page 9: Hardware Kit

    BOX A - Vario VESA triple adapter set HARDWARE KIT Part QTY Note Vario VESA holder Vario VESA plate Vario VESA pin holder Vario VESA pin Bolt M5 X 20 DIN 7991 Screw M4 X 16 DIN 7985 Philips head. Screw M4 X 10 DIN 7985 Philips head.
  • Page 10 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
