- Page 1 Pneumatic drum pump ARCA-PUMP-BARREL..-SET-N User Manual...
-
Page 3: Table Of Contents
Checking pressurised parts ......................15 Cleaning the intake screen ......................15 Cleaning the air filter........................16 Checking the grease follower piston ....................16 10 Decommissioning............................17 11 Disposal..............................17 12 Technical data............................17 12.1 Declaration of Conformity....................... 17 Schaeffler BA 88 | iii... - Page 4 C ontents 12.1.1 Declaration of conformity....................18 13 Replacement parts and accessories ......................19 13.1 Replacement parts......................... 19 13.2 Transport aids..........................19 iv | BA 88 Schaeffler...
-
Page 5: About The Manual
1.4 Legal guidelines │ The information in this manual reflects the status at the time of publication. Unauthorised modifications to or improper use of the product are not permitted. Schaeffler accepts no liability in these cases. Schaeffler BA 88 | 5... -
Page 6: Images
1│About the manual 1.5 Images │ The images in this manual may be schematic representations and may differ from the delivered device. 6 | BA 88 Schaeffler... -
Page 7: General Safety Regulations
Eye protection 2.5 Safety specifications │ Schaeffler recommends installing a compressed air maintenance unit for pneu- matic pump operation. Observe the safety data sheets for the hazardous substances used. Do not use the product in the rain, to prevent grease from washing onto the ground. -
Page 8: Hazards
▸ Clean the suction pipe of the pump prior to commissioning. Damage due to high mechanical load ▸ Do not bend the high-pressure hose sharply. ▸ Whilst cleaning the intake screen, hold the nut at a maximum distance of 20 mm behind the washer. 8 | BA 88 Schaeffler... -
Page 9: Scope Of Delivery
▸ Report any damage during transit promptly as a complaint to the carrier. 3.2 Defects │ ▸ Check the product immediately upon delivery for visible defects. ▸ Report any defects promptly as a complaint to the distributor of the product. Schaeffler BA 88 | 9... -
Page 10: Product Description

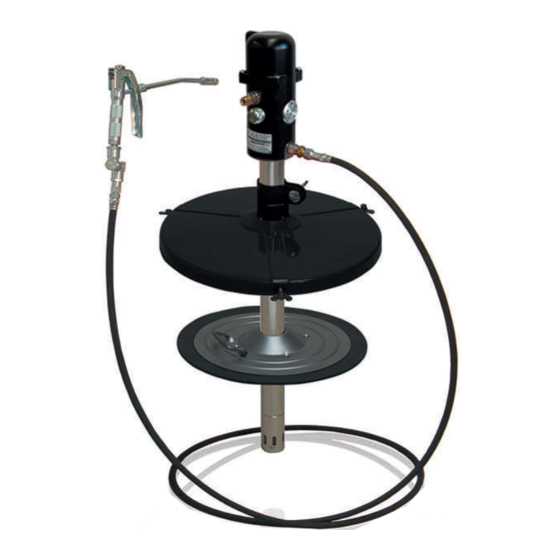

The pump unit automatically stops delivering grease when the trigger on the grease gun is released. 001A6006 q 1 Components of the ARCA-PUMP-BARREL..-SET-N Grease gun Connector for compressed air supply Grease outlet Clamping screw Wing bolt Grease follower piston Intake screen Suction pipe High-pressure hose Dust cover Gripper clamp 10 | BA 88 Schaeffler... -
Page 11: Transport And Storage
Observe the storage instructions provided by the grease manufacturer when stor- ing the pump in the grease container. e 4 Storage conditions Description Value Ambient temperature −5 °C to +55 °C Humidity 5 % to 95 %, non-condensing Storage location Store the product in closed rooms Store the product on clean surfaces Schaeffler BA 88 | 11... -
Page 12: Commissioning
▸ Pull the trigger on the grease gun until lubricant emerges. ▸ Release the trigger on the grease gun. » The pump unit will switch off automatically after reaching the maximum deliv- ery pressure. » The pump unit is ready for use. 12 | BA 88 Schaeffler... -
Page 13: Fitting Pump Unit 180 On The Grease Container
▸ Pull the trigger on the grease gun until lubricant emerges. ▸ Release the trigger on the grease gun. » The pump unit will switch off automatically after reaching the maximum deliv- ery pressure. » The pump unit is ready for use. Schaeffler BA 88 | 13... -
Page 14: Operation
The filter in the grease gun is Clean the filter in the grease gun blocked The connection pressure is too Adjust the compressed air setting The lubrication nipple is Replace the lubrication nipple damaged or no longer permeable 14 | BA 88 Schaeffler... -
Page 15: Maintenance
▸ Remove the nut and shaft from the axle. To avoid bending the axle, hold it at a maximum distance of 20 mm behind the washer. ▸ Dismantle the intake screen. ▸ Clean the intake screen to remove any contaminants. Schaeffler BA 88 | 15... -
Page 16: Cleaning The Air Filter
▸ Check the rubber seal lip of the grease follower piston for age-induced wear. ▸ Replace grease follower pistons with worn or porous rubber seal lips immedi- ately with original parts. It is recommended that the grease follower piston be replaced after a maximum of three years. 16 | BA 88 Schaeffler... -
Page 17: Decommissioning
ARCA-PUMP-BARREL-180.TROLLEY-N can be ordered as an accessory. The delivery rate of the pump unit is dependent on the applied air pressure and applied back pressure. 12.1 Declaration of Conformity │ See also 2 Declaration of conformity [} 18] Schaeffler BA 88 | 17... - Page 18 This declaration certifies the compliance with the mentioned regulations but does not include any assurance of properties. The product must be installed correctly and professionally in accordance with the commissioning instructions in the user manual. The safety instructions in the operating manual must be observed. Schaeffler Technologies AG &Co. KG • Georg-Schaefer-Straße 30 • D-97421 Schweinfurt 18 | BA 88 Schaeffler...
- Page 19 200 kg Material Zinc coated Steel, black powder coated Length 700 mm 1000 mm Width 520 mm 830 mm Height 990 mm 1050 mm Mass 11 kg 32 kg Pump retainer Rollers 2 pieces, Ø 200 mm 2 pieces, Ø 200 mm Swivel castors 1 piece, Ø 125 mm Schaeffler BA 88 | 19...
- Page 20 This publica- In Germany: tion supersedes all deviating information from older publications. Printing, including excerpts, is only per- Phone 0180 5003872 mitted with our approval. From other countries: © Schaeffler Technologies AG & Co. KG Phone +49 9721 91-0 BA 88 / 01 / en-GB / DE / 2023-10...
