Summary of Contents for MIXER 70

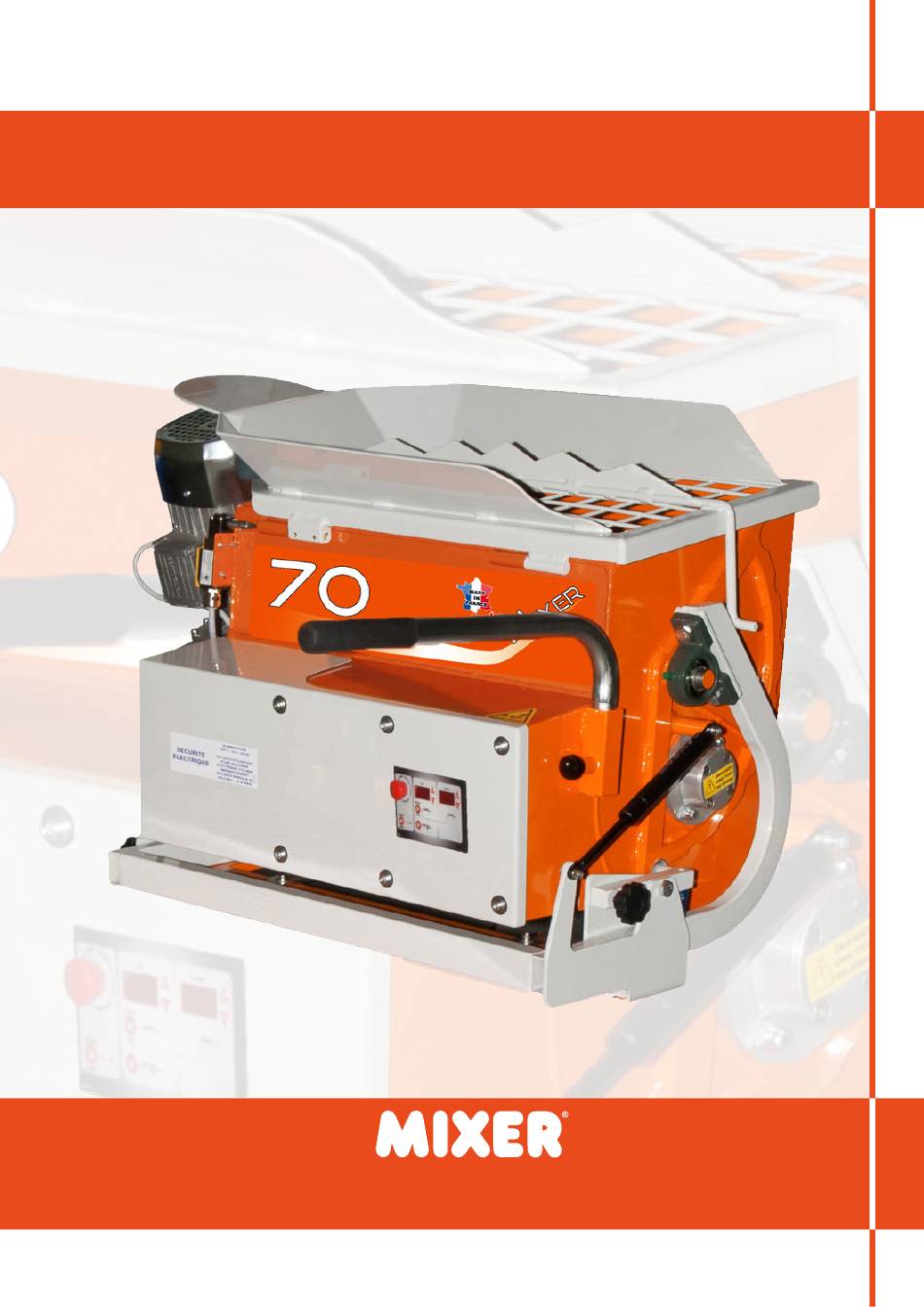

- Page 1 User manual MIXER 70 Réf. 3B03602000 MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P .I. 03725830248 Edition of 22/03/2023 More information on www.mixersrl.com...
-
Page 2: Table Of Contents
Tel. +39 0444 583599 Fax +39 0444 583559 4.3. Error codes ..............p.11 info@mixersrl.com 5. MAINTENANCE ..............p.12 5.1. Cleaning procedure ............p.12 5.2. Check-up ..............p.12 6. DECLARATION OF CONFORMITY ........ p.13 7. WARRANTY CONDITIONS ..........p.14 User manual - MIXER 70 202303-648-ENG... -
Page 3: User Manual
- people in charge of the transport of the machine - people in charge of the use of the machine - people in charge of the cleaning and maintenance of the machine - people in charge of the final destruction of the machine 202303-648-ENG User manual - MIXER 70... -
Page 4: Warning
In case of needed After-Sale Service, always specify the machine model and its serial number. • For any replacement of parts, only use genuine parts. • Do not modify the machine. • Do not cut or dismantle the protection grids. • Do not open the electric box. User manual - MIXER 70 202303-648-ENG... - Page 5 After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it blocking up. The storage of a not greased pump can damage it seriously. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. 202303-648-ENG User manual - MIXER 70...
-
Page 6: Electric Connection
Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees and directed to the most appropriate processing channels. For any further information, please contact our hotline +39 0444 583599 o info@mixersrl.com. User manual - MIXER 70 202303-648-ENG... -
Page 7: Your Machine

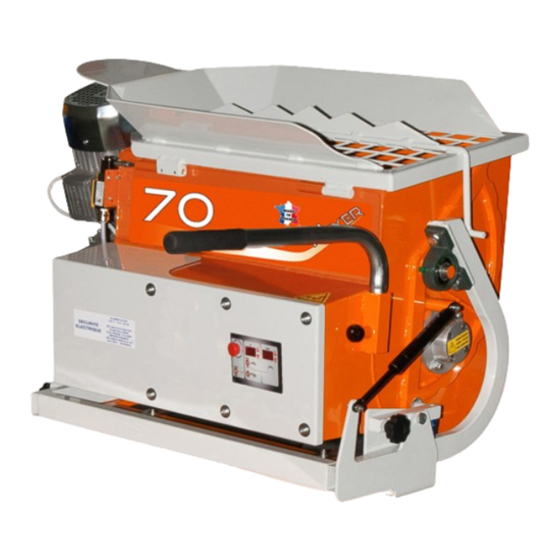

3.1. DESCRIPTION Practical and compact mixer for mortar. A double helical paddle on a horizontal arm ensures rapid and homogeneous mixing. Mixer equipped with a speed control, a rotation direction reversing function and a water doser. Equipped with a digital control panel, allowing simplified adjustment of rotation speed, a water dosing and display of the network voltage. -
Page 8: Identification Of The Components
3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS Safety grid Flip latch Geared electric motor Lubricator Control panel (see next page) User manual - MIXER 70 202303-648-ENG... - Page 9 Power on light Increase the motor speed Mixing process light Decrease the motor speed Tank emptying process light Start / Stop of the water dosage Water dosage process light Ajout d’eau par impulsion Emergency stop 202303-648-ENG User manual - MIXER 70...
-
Page 10: Use Of The Machine
The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m maximum, completely unreeled. • The mixer is equipped with a security grid (A). If the grid is open, the display (F) shows SEC and the mixer will not start. Close the grid to activate the mixer. START / STOP •... - Page 11 11. If you had to add some water, correct the initially set quantity with help of the arrows +/- (8) and (9). 12. Unlock the latch (B) and tip over the mixer. Whilst tipping, the security grid opens itself and stops the mixing.
-
Page 12: Maintenance
Proceed by simply cleaning with a humid sponge. 5.2. SERVICING Once a week, lubricate the lubricator (D) with help of a grease pump (ref. 12566) as well as the engine lubricator. User manual - MIXER 70 202303-648-ENG... -
Page 13: Declaration Of Conformity
• Noise emissions 2005/88/CE ROUSSET, JANUARY 20th 2023 Patrick BOREL President MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P.I. 03725830248 202303-648-ENG User manual - MIXER 70... -
Page 14: Warranty Conditions
We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of income, turnover, loss of profits, loss of image, of any kind whatever. User manual - MIXER 70 202303-648-ENG... - Page 15 In this case, the request must be addressed directly to the manufacturer of the component or to its nearest authorised representative. The Euromair, Euromair MPC or Mixer service centres may be considered as the manufacturer’s representatives if they are the closest. As this principle also applies to batteries, our supplier Parts Holding Europe, or one of its sister companies, remains your contact for your requests (https://www.partsholdingeurope.com/).
- Page 16 MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P .I. 03725830248 More information on www.mixersrl.com User manual - MIXER 70 202303-648-ENG...
